ADF Scanner Explained: What It Is and When You Need One

If you've ever wondered what is ADF scanner technology and whether it belongs in your office setup, you're not alone. An Automatic Document Feeder scanner is one of those tools that dramatically changes how efficiently you process paperwork — yet many people don't know it exists until they've already wasted hours scanning page by page. In this guide, we break down exactly how ADF scanners work, who needs one, and how to choose the right model for your workload.

Whether you're digitizing stacks of contracts, invoices, or multi-page reports, understanding the ADF scanner can save you significant time and frustration. For a quick overview of compatible devices and recommended models, visit our ADF scanner service page.

What Is an ADF Scanner?

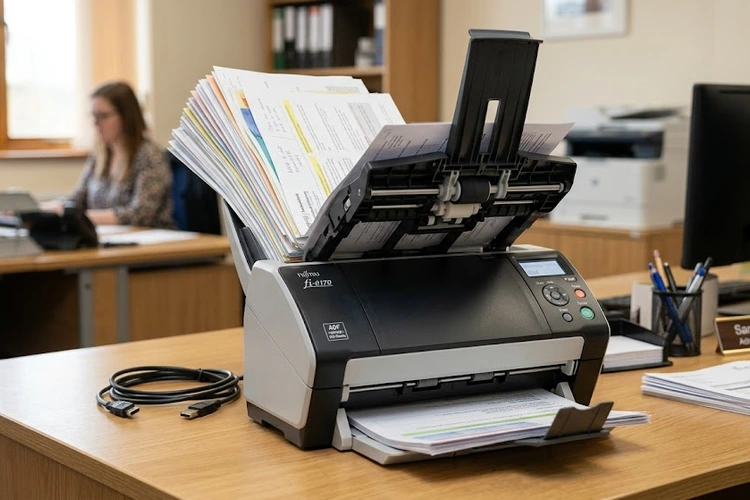

An ADF scanner — short for Automatic Document Feeder scanner — is a scanning device equipped with a tray mechanism that automatically pulls individual sheets into the scanner one at a time. Rather than lifting a lid and repositioning every page manually (as with a traditional flatbed), you load a stack of documents into the feeder tray and let the machine handle the rest. The result is a continuous, hands-free scanning process that turns a 30-minute job into a 3-minute one.

According to Wikipedia's overview of automatic document feeders, ADF technology was originally developed for photocopiers before being adapted for dedicated scanners and multifunction devices. Today it's a standard feature in virtually every office-grade scanner.

ADF vs. Flatbed: Key Differences

A flatbed scanner uses a glass platen where you place documents face-down, one at a time. It's ideal for fragile items, bound books, photos, or anything too thick or irregular to pass through a feeder. An ADF scanner, by contrast, is optimized for loose, single-sheet documents in volume. Many modern devices combine both — a flatbed glass bed beneath a hinged ADF tray — giving you the best of both worlds. If you regularly handle bound materials alongside loose pages, see our guide on how to scan a book without damaging the spine for best practices with fragile originals.

Simplex vs. Duplex ADF

A simplex ADF scans one side of a page per pass. To scan the back of a document, you'd need to flip the stack and run it again. A duplex ADF (also called a two-sided or reversing ADF) scans both sides of a sheet in a single pass — either by using two separate scan heads or by physically flipping the page internally. For any workflow involving two-sided documents, duplex capability is essentially mandatory and worth the extra cost.

How an ADF Scanner Works

The mechanics behind an ADF scanner are elegantly straightforward. You place a stack of pages — face-up or face-down depending on the model — into the input tray. A set of rollers grips the top (or bottom) sheet and pulls it along a paper path past the imaging sensor. After scanning, the sheet exits into an output tray. The process repeats automatically until the input tray is empty.

The Feed Mechanism Explained

Most ADF scanners use a pick roller and a separation pad (or separation roller) working in tandem to ensure only one sheet feeds at a time. The pick roller grabs the stack, while the separation component prevents double-feeds. Over time, these consumable parts wear out — typically after tens of thousands of scans — and need replacement. High-end models include ultrasonic double-feed detection sensors that immediately halt scanning if two sheets slip through together, protecting data integrity.

CIS vs. CCD Image Sensors

The imaging element is the heart of any scanner. ADF models typically use one of two sensor technologies:

• CIS (Contact Image Sensor): Compact, low power, and less expensive. The sensor sits very close to the paper path. Excellent for standard office documents but can struggle with uneven or slightly warped pages.
• CCD (Charge-Coupled Device): Uses mirrors and a lens to project the image onto the sensor from a distance. Produces superior depth of field and handles imperfect originals better. More common in high-end and production scanners.

For everyday document digitization — invoices, contracts, forms — a CIS-based ADF scanner performs perfectly well. For archival work or scanning documents with raised text, stamps, or slight warping, CCD delivers noticeably better results.

Types of ADF Scanners

Not all ADF scanners are the same device category. Understanding the distinction helps you match the right hardware to your actual needs.

Sheetfed Document Scanners

Dedicated sheetfed document scanners — brands like Fujitsu ScanSnap, Canon imageFORMULA, and Epson WorkForce DS series — are purpose-built for high-volume document capture. They're compact, fast, and typically offer deep software integration with cloud services like Google Drive, Dropbox, and SharePoint. If your primary goal is digitizing paper documents at speed, a dedicated sheetfed scanner almost always outperforms the ADF built into a multifunction printer. For guidance on routing scans directly to cloud storage, our tutorial on how to scan documents to Google Drive or Dropbox automatically walks through the full setup process.

Multifunction Printers with ADF

Most modern all-in-one printers include an ADF tray on top, allowing print/scan/copy/fax functions in a single unit. The ADF on these machines is perfectly capable for moderate scanning loads. However, their ADF capacity (often 35–50 sheets) and speeds (15–30 ppm) are generally lower than dedicated document scanners. For a small team that needs to occasionally scan multi-page reports without buying separate hardware, an MFP with ADF is a practical, cost-effective choice. If your team shares one device across multiple workstations, our article on how to set up a shared network scanner in a small office covers everything from driver installation to permissions.

Who Actually Needs an ADF Scanner?

The honest answer: almost any office or home office that regularly handles paperwork. But the urgency of the need scales with volume and workflow complexity.

Small Office and Home Office Use

For freelancers, accountants, real estate agents, or small teams processing contracts, receipts, or client forms, an ADF scanner pays for itself in recovered time within weeks. If you find yourself scanning more than 10–15 pages per day — or dreading the task because it takes so long — an ADF scanner eliminates the friction entirely. Entry-level dedicated scanners (such as the Fujitsu ScanSnap iX1300 or Canon DR-C225 II) cost under $300 and handle 30+ pages per minute with automatic duplex.

Enterprise and High-Volume Use

In legal, healthcare, finance, or government settings where thousands of pages move through digitization pipelines daily, production-grade ADF scanners become essential infrastructure. These machines — workgroup scanners and departmental units — feature input capacities of 100–500 sheets, speeds exceeding 80 ppm, and robust duty cycles measured in tens of thousands of pages per day. They integrate with document management systems, support barcode separation for automatic file naming, and include enterprise-grade OCR workflows. For more on turning scanned images into searchable, editable text, see our explainer on what is OCR scanning and how does it work.

Key Specs to Compare Before Buying

When evaluating ADF scanners, these are the specifications that actually matter in day-to-day use:

Beyond these numbers, pay attention to software compatibility. Windows and macOS support is universal, but Linux users should verify driver availability before purchasing — not all manufacturers provide Linux packages. The paper size range also matters: confirm the scanner handles everything from business card-sized receipts up to legal-size (8.5" × 14") documents if your workflow requires it.

Tips for Getting the Most from Your ADF Scanner

Owning an ADF scanner is only half the battle. Using it correctly ensures clean scans, fewer jams, and a longer machine lifespan.

Prepare Your Documents

Before loading a stack, fan the pages to separate them and prevent double-feeds. Remove all staples, paper clips, and sticky notes. Straighten any bent corners. Documents with tape, torn edges, or significant wrinkles should go on the flatbed glass instead of through the ADF — forcing damaged paper through the feeder is the leading cause of paper jams and roller damage.

Clean the Rollers Regularly

Dust, paper fiber, and ink residue accumulate on the pick rollers over time, degrading feed reliability and leaving streaks on scanned images. Most manufacturers recommend cleaning the roller assembly every 1,000–5,000 scans using a lint-free cloth lightly moistened with isopropyl alcohol. Check your scanner's maintenance menu — many models display a roller cleaning reminder and track cycle counts automatically.

Use the Right Resolution

Higher resolution means larger file sizes and slower processing. For standard text documents, 300 dpi produces clean, OCR-ready scans without bloating your storage. Use 600 dpi for documents with fine print, signatures, or graphics you may need to enlarge. Reserve 1200 dpi for archival-quality digitization of photographs or historical documents — everyday office use at that resolution is unnecessary and wasteful.

Set Up Automatic File Naming and Routing

Most dedicated ADF scanners ship with companion software (e.g., Fujitsu's ScanSnap Home, Canon's CaptureOnTouch) that can automatically name files based on date, content recognition, or barcode, and route them to specific folders or cloud destinations. Taking 20 minutes to configure these profiles upfront eliminates manual file management entirely and makes your digitization workflow nearly touchless.

Understanding what is ADF scanner technology ultimately comes down to one simple value proposition: it replaces the most tedious part of document management — manual page handling — with a reliable, automated mechanism. Whether you're a solo professional scanning a dozen pages a day or an enterprise operation processing thousands, there's an ADF scanner sized and priced exactly for your needs.
