HDMI eARC vs ARC: What's the Difference for Soundbars

If you've ever shopped for a soundbar or tried to connect one to a modern TV, you've probably seen the terms ARC and eARC on the spec sheet. Understanding the difference between HDMI eARC vs ARC soundbar connections can make or break your audio setup — especially if you want to enjoy lossless surround sound formats like Dolby Atmos or DTS:X. This guide breaks down exactly what each standard does, how they differ in real-world use, and which one your setup actually needs. For a deeper technical overview of these standards, see the HDMI specification on Wikipedia.

Both ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel) are features built into HDMI ports that let your TV send audio back to a soundbar or AV receiver over the same cable that delivers video. Before ARC existed, you needed a separate optical or RCA cable for audio — ARC eliminated that extra wire. eARC came later as part of the HDMI 2.1 specification and dramatically increased the bandwidth available for audio data. If you're still deciding whether a soundbar is the right choice for your room, our comparison of soundbar vs TV speakers is a good starting point.

What Is HDMI ARC?

How ARC Works

HDMI ARC was introduced with the HDMI 1.4 specification and became standard on most TVs produced after around 2009. The technology repurposes a small portion of the HDMI cable's existing data channel — specifically, a single dedicated wire within the connector — to carry audio in the reverse direction. Normally, HDMI sends video and audio from a source (like a Blu-ray player or streaming stick) to your TV. ARC adds the ability for the TV to send audio back out to a connected soundbar or receiver.

This meant consumers could finally use just one HDMI cable to both display content on the TV and route the TV's internal audio — whether from streaming apps, broadcast TV, or built-in smart TV platforms — to a soundbar. The TV remote could also control the soundbar's volume through the CEC (Consumer Electronics Control) protocol, removing the need for a separate remote.

ARC Limitations

Despite being a meaningful upgrade, standard ARC has significant bandwidth constraints. It uses the same wire originally designed for older, lower-bandwidth HDMI signals, which limits audio throughput to approximately 1 Mbps. This is enough for:

• Stereo PCM audio (2-channel uncompressed)
• Dolby Digital (up to 5.1 channels, compressed)
• DTS (compressed surround)

What ARC cannot handle is lossless, high-bitrate audio. Dolby TrueHD (used on Blu-ray discs), DTS-HD Master Audio, and full Dolby Atmos object-based audio all exceed what the ARC channel can carry. If your soundbar claims Dolby Atmos support and you're using ARC, the TV will typically downmix the signal to a compressed Dolby Digital Plus version at best — not the full lossless Atmos experience.

What Is HDMI eARC?

The Bandwidth Jump

Enhanced Audio Return Channel (eARC) arrived as part of the HDMI 2.1 specification. The key engineering change: instead of using that single repurposed wire, eARC uses a dedicated high-speed data channel — the same one used for HDMI 2.1's massive video bandwidth. The result is a jump from roughly 1 Mbps to approximately 37 Mbps of available audio bandwidth. That's about 37 times more throughput.

eARC also includes an Ethernet-over-HDMI channel for device discovery and handshake, making the connection more stable and reliable. CEC control is retained, and eARC is backward compatible with standard ARC — if you connect an eARC TV to an ARC soundbar, it will negotiate down to ARC mode automatically.

Audio Formats eARC Supports

The bandwidth expansion unlocks every major lossless and high-definition audio format currently in use:

• Dolby TrueHD — the lossless codec on 4K Blu-ray discs, up to 7.1 channels
• Dolby Atmos (lossless) — full object-based audio with height channels, not the compressed version
• DTS-HD Master Audio — lossless DTS up to 7.1 channels
• DTS:X — DTS's object-based audio competitor to Atmos
• PCM up to 7.1 channels — uncompressed multi-channel audio
• Dolby Digital Plus — compressed but higher-quality than standard Dolby Digital

Understanding the relationship between eARC and Dolby Atmos is especially important if you're considering a premium soundbar. Our guide on what Dolby Atmos is and whether you need it in a soundbar explains the format in detail and helps you decide if it's worth prioritizing in your purchase.

eARC vs ARC: Head-to-Head Comparison

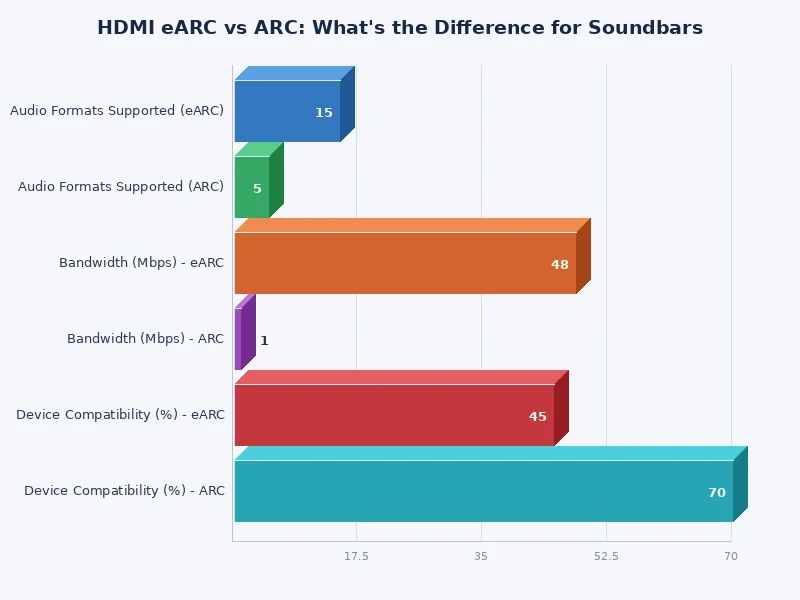

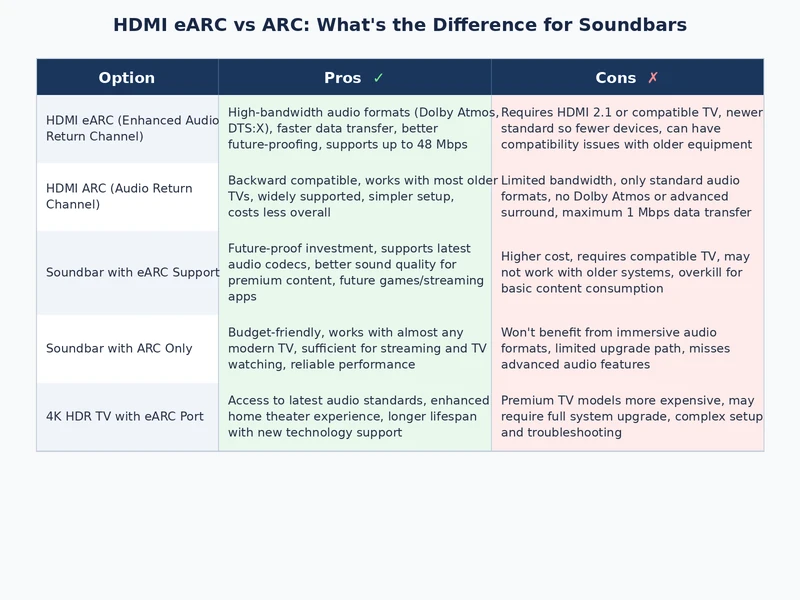

The table below summarizes the key differences between standard ARC and eARC across the specifications that matter most for soundbar users.

Do You Actually Need eARC for Your Soundbar?

The honest answer depends on how you use your TV and what kind of audio experience you're chasing. eARC is unambiguously better on paper, but whether the difference is audible in your living room is a separate question entirely.

eARC and Dolby Atmos

If you own a Dolby Atmos soundbar — or are planning to buy one — eARC is essentially required to hear what the hardware is actually capable of. When a streaming service sends a Dolby Atmos signal to your TV and the TV forwards it via standard ARC to your soundbar, the TV must compress that signal into Dolby Digital Plus with Atmos metadata. The soundbar receives a compressed stream. You'll still see "Dolby Atmos" on the soundbar's display, but it's not the same quality as the lossless TrueHD Atmos on a physical disc.

With eARC, the TV can pass the full lossless Dolby TrueHD with Atmos stream directly to the soundbar without downmixing. The difference is most noticeable in complex scenes with many simultaneous sound objects — explosions, ambient soundscapes, orchestral scores. If your soundbar has upward-firing drivers or dedicated height channels, eARC is the only way to feed them the full signal they were designed for. You can learn more about making the most of your soundbar's capabilities in our guide to how to set up a soundbar for best sound quality.

eARC for Gaming

Gaming is where eARC's automatic lip sync correction becomes particularly noticeable. Standard ARC relies on CEC for timing adjustments, and CEC implementations vary widely between TV manufacturers — lag and sync drift are common complaints. eARC handles synchronization at the protocol level, which means the audio from your game console stays locked to the on-screen action without manual adjustment. For competitive gaming or fast-paced action titles, this is a genuine quality-of-life improvement. If you've struggled with audio sync problems on a standard ARC connection, our troubleshooting guide on how to fix soundbar audio out of sync walks through the most common fixes.

Setup, Compatibility, and Troubleshooting

How to Check Your TV's Ports

Most TVs label their HDMI ports directly on the back panel or in small text beneath each port. Look for a port labeled "ARC" or "eARC" — there is typically only one such port on the TV, and it's usually HDMI port 1 or 2 depending on the manufacturer. If no port is labeled, check your TV's manual or the manufacturer's spec page online. Some TVs introduced eARC support through firmware updates, particularly Sony and Samsung models from 2019 onward.

On the soundbar side, eARC support is listed in the product specifications. Soundbars with eARC will have at least one HDMI input labeled "HDMI (ARC)" or "HDMI eARC." To use eARC, both your TV and your soundbar must support it. A single eARC-capable TV connected to an ARC-only soundbar will communicate over standard ARC — you won't get eARC benefits until both ends of the connection support the standard.

The cable itself also matters. Standard High Speed HDMI cables support ARC. For reliable eARC operation, use a cable rated as "Ultra High Speed HDMI" (also called HDMI 2.1 cables). These are rated for 48 Gbps and fully support eARC's dedicated audio channel. Cheap cables that are technically HDMI 2.1-shaped but not certified can cause intermittent dropouts or fallback to ARC mode. To learn more about specific soundbar setups, our detailed comparison of HDMI ARC vs eARC for soundbars covers additional setup scenarios and manufacturer-specific quirks.

Common Connection Issues

Even with the right hardware on both ends, eARC connections can occasionally misbehave. Here are the most frequent problems and their causes:

• Soundbar shows "ARC" instead of "eARC": The cable is likely a standard High Speed HDMI, not Ultra High Speed. Swap it out. Alternatively, the TV's eARC setting may be disabled — check the TV's audio output settings menu.
• No sound at all: Ensure CEC is enabled on both devices (Samsung calls it Anynet+, LG calls it SimpLink, Sony calls it BRAVIA Sync). eARC requires CEC to be active for device handshake.
• Audio cuts out intermittently: Usually a cable quality issue or a loose connection. Re-seat the cable at both ends. If the problem persists, replace the cable with a certified Ultra High Speed HDMI cable.
• Lip sync drift: On standard ARC this is common and requires manual adjustment in the TV's audio delay settings. On eARC it should self-correct; if it doesn't, a firmware update on either device may resolve it.

Which Should You Choose?

For most users buying a new soundbar today, the practical recommendation is straightforward: if your TV and budget allow, get eARC. TVs manufactured in the last few years almost universally include at least one eARC port, and mid-range to premium soundbars increasingly include eARC as a standard feature rather than a premium add-on.

If you're working with an older TV that only has ARC, standard ARC is still perfectly capable of delivering great sound from a soundbar. Compressed Dolby Digital and DTS over ARC sounds excellent for movies, TV shows, and music — the gap between ARC and eARC is most meaningful when the source content is actually encoded in lossless formats (primarily 4K Blu-ray discs) or when your streaming service is delivering full-quality Atmos streams. For most Netflix and streaming-app content, the audible difference between compressed Dolby Digital Plus Atmos over ARC and lossless TrueHD Atmos over eARC is subtle.

The bottom line: eARC is the better standard and worth having if your setup supports it, but standard ARC is not a dealbreaker for a satisfying soundbar experience. Focus first on getting a soundbar whose speaker configuration and room placement suit your space — our guide to soundbar channel configurations explains how 2.0, 2.1, 5.1, and Atmos-enabled layouts differ — and then let ARC vs eARC be a tiebreaker rather than the primary selection criterion.

For a full walkthrough of setting up your specific connection, visit our dedicated service page: HDMI eARC vs ARC Soundbar Setup Guide.
