How to Clean a Laser Printer Drum

If your laser printer is producing faded prints, streaks, or mysterious smudges, the drum unit is often the culprit. Knowing how to clean a laser printer drum is one of the most effective maintenance steps you can take to restore print quality and extend the life of your machine. The drum is the core component responsible for transferring toner onto paper, and even a thin layer of dust, residual toner, or paper debris can degrade output significantly. Whether you own a home office laser printer or a high-volume workgroup model, regular drum cleaning keeps everything running smoothly. Before spending money on a new cartridge, try this first — it may be all you need. For a broader overview of printer models worth maintaining, visit our printers service page.

What Is a Laser Printer Drum and Why Does It Get Dirty?

The photoreceptor drum (also called the OPC drum or imaging drum) is a cylindrical, light-sensitive component coated in an organic photoconductor material. During the printing process, a laser beam selectively discharges areas of the drum, which then attract charged toner particles. The toner is then transferred to the paper and fused by heat. Because the drum is continuously exposed to toner, paper dust, and the mechanical friction of the printing process, contamination is inevitable over time.

Even in a clean office environment, microscopic paper fibers, fine toner particles, and ambient dust particles accumulate on the drum's surface. This buildup disrupts the even distribution of electrostatic charge and prevents toner from adhering correctly — the direct cause of those frustrating print defects.

Drum Unit vs. Toner Cartridge: Key Differences

Many users confuse the drum unit with the toner cartridge. In some laser printers (particularly Brother models), these are separate components. The toner cartridge holds the powdered toner, while the drum unit does the actual imaging work. In other printers (like many HP LaserJets), the drum and toner are combined into a single cartridge assembly, which means replacing the toner also replaces the drum. Knowing which type your printer uses is essential before you begin cleaning — consult your printer's manual or the manufacturer's website to confirm.

Signs Your Drum Unit Needs Cleaning

• Repeated streaks or lines running vertically down printed pages
• Faded patches or ghost images of previous prints appearing on new pages
• Irregular black dots or smudges that repeat at consistent intervals
• An overall hazy or grey tint to pages that should be white
• Toner smearing when you touch the printed surface

If you're also experiencing streaks on your pages, it's worth reading our guide on how to fix printer streaks and lines on pages for a complete diagnostic approach that covers more than just the drum.

Tools and Supplies You Need

Before you begin, gather the right materials. Using the wrong cleaning agents — particularly alcohol-based or solvent-based products — can permanently damage the drum's photosensitive coating. The drum surface is extremely delicate and scratches easily, so cloth selection matters just as much as the cleaning solution.

What to avoid: Never use ammonia-based cleaners, acetone, regular rubbing alcohol (lower purity), or any abrasive material on the drum cylinder itself. These will strip or scratch the photosensitive coating, and a scratched drum cannot be repaired — it must be replaced.

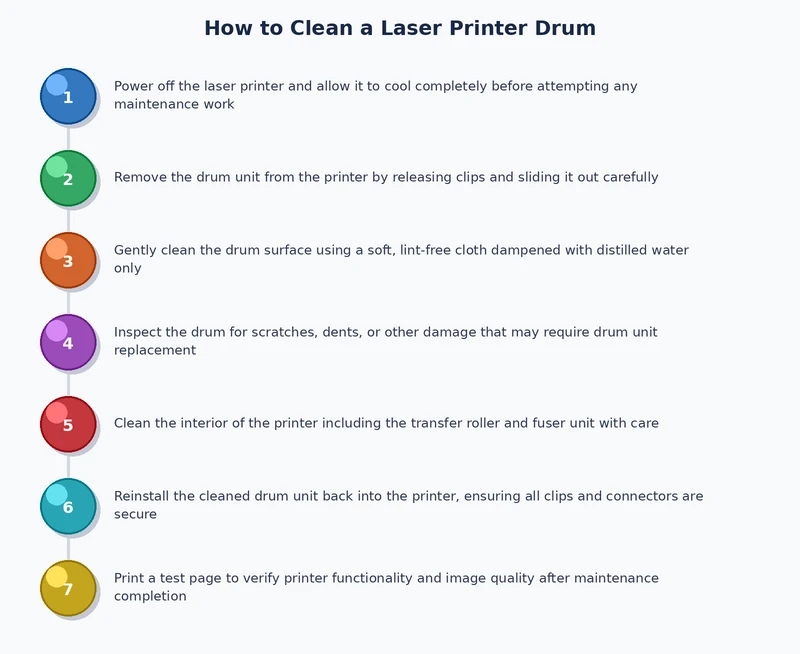

How to Clean a Laser Printer Drum Step by Step

The process takes about 15–20 minutes for most printers. Work in a well-ventilated area since loose toner particles can irritate airways. Lay down newspaper or scrap paper under your work area to catch any toner that falls during cleaning.

Removing the Drum Unit Safely

1. Power off and unplug the printer. Wait at least 10 minutes before opening. The fuser unit inside laser printers operates at temperatures exceeding 200°C (392°F) and remains hot after use. Never rush this step.
2. Open the front or top access panel. Consult your printer's manual for the exact panel — most laser printers have a front door that drops down, exposing the drum and toner assembly.
3. Gently remove the drum/toner assembly. Hold it by its handle or the sides — never by the green or blue drum cylinder itself. Even skin oils can degrade print quality.
4. Separate the drum unit from the toner cartridge if your printer model uses separate components. There is usually a locking lever or tab; your manual will show its location.
5. Place the drum unit on a flat, clean surface covered with a sheet of plain white paper. Keep the drum away from bright light — prolonged exposure to light (especially sunlight or bright fluorescent) can damage the photosensitive coating. Cover it with a cloth or sheet if you need to step away.

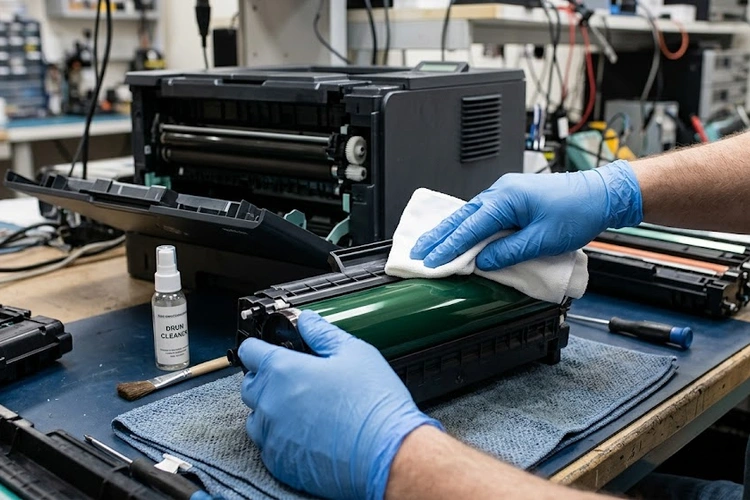

The Cleaning Process

1. Inspect the drum visually. Rotate it slowly and look for areas of caked toner, white streaks (scratches in the coating), or embedded paper fibers. If you see deep scratches in the coating, cleaning will not help — the drum needs replacement.
2. Use compressed air to blow out loose toner. Hold the can upright and use short bursts. Point the airflow away from your face and work area. This removes the majority of loose debris without physical contact with the drum surface.
3. Use a dry, soft brush for stubborn dry deposits. Very gently brush along the drum's length (not across it) to loosen any caked-on toner powder. Do not press hard — the idea is to dislodge, not scrub.
4. Wipe the drum surface with a dry lint-free cloth. Use a single smooth motion along the drum's length. Fold the cloth after each pass so you are always using a clean surface. Repeat until no toner transfers to the cloth.
5. Clean the drum's corona wire if accessible. Many drum units have a small blue or green tab on the side — sliding it back and forth cleans the corona wire, which is responsible for charging the drum. This step alone often resolves streaking issues. Slide it the full length of its track 5–6 times, then return it to the home position (usually marked with a triangle or arrow).
6. Clean surrounding plastic components and the drum frame using a lint-free cloth lightly moistened with isopropyl alcohol. Wipe the contact points, any exposed gears, and the toner-sealing foam strips. Allow all parts to dry completely before reassembly.

Reinstalling and Testing

1. Reattach the toner cartridge to the drum unit if they were separated.
2. Slide the assembly back into the printer along its guides until it clicks into place.
3. Close the access panel firmly.
4. Power on the printer and print a test page. Most printers have a built-in test page function accessible from the control panel or settings menu.
5. Evaluate the test page for improvement. If streaks persist, run 3–5 additional test pages — sometimes residual loose toner takes a few passes to fully clear.

Drum Cleaning Tips for Specific Print Problems

Fixing Streaks and Lines

Vertical streaks that run the full length of the page are almost always caused by one of two things: a scratch on the drum surface, or a dirty corona wire. If cleaning the corona wire (step 5 above) does not resolve the streaking, rotate the drum slowly and look for a visible scratch or gouge in the photosensitive coating. Unfortunately, a scratched drum cannot be repaired — you'll need a replacement drum unit.

Horizontal streaks (bands across the page) typically indicate a fuser problem or uneven toner distribution, not a drum issue. If cleaning does not resolve horizontal banding, consult a service technician. For additional context on diagnosing output problems, our article on how to fix streaky lines on printer output covers a broader range of causes and solutions.

Fixing Ghosting and Faded Areas

Ghosting — where a faint duplicate of a previously printed image appears on new pages — usually means the drum is not fully discharging between print cycles. This is often caused by a worn drum coating or a failing drum cleaning blade (the rubber wiper that clears residual toner after each pass). Cleaning may temporarily improve the issue, but a drum that has exceeded its rated page count will need replacement regardless of how thoroughly it is cleaned.

Faded patches in the center or corners of pages typically point to uneven toner distribution. Before attributing this to the drum, remove the toner cartridge and gently rock it side to side to redistribute the remaining toner — this is a quick fix that often restores even density. If you want to get more mileage from your consumables in general, our guide on how to extend toner cartridge life offers practical tips that complement good drum maintenance habits.

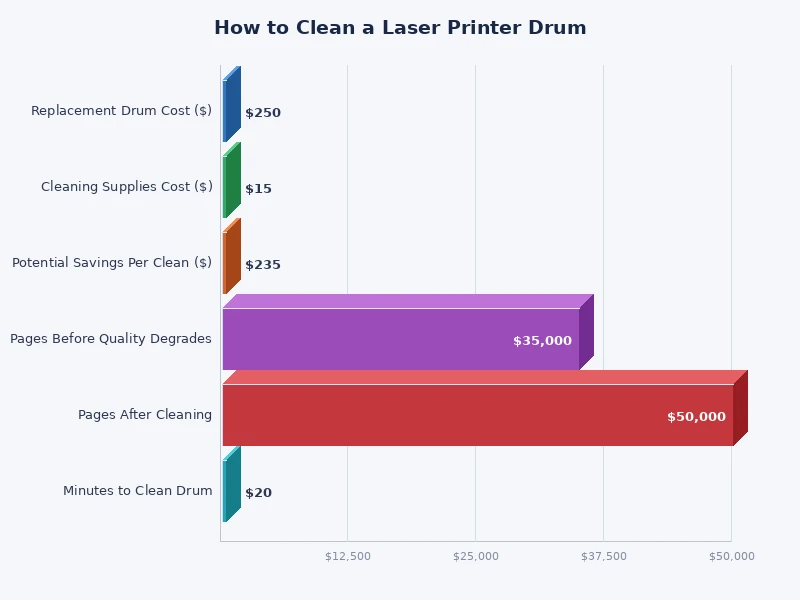

Drum Cleaning Methods Compared

There are several approaches to cleaning a laser printer drum, and each has trade-offs depending on the severity of contamination and your printer model. The table below summarizes the most common methods:

Many modern laser printers include a built-in drum cleaning cycle accessible through the printer's menu or driver software. These automated cycles run a series of blank pages through the printer to clear residual toner. While convenient, they are best suited for routine maintenance rather than addressing a significant buildup. Check your printer's control panel under "Maintenance" or "Tools" to see if this option is available.

How Often to Clean Your Drum and Long-Term Maintenance

How frequently you need to clean your drum depends on print volume, paper quality, and environment. Dusty environments, cheap paper with excessive paper dust, and high-volume print jobs all accelerate contamination. As a general guideline:

• Light use (under 500 pages/month): Inspect and clean every 6–12 months, or when print quality degrades.
• Moderate use (500–2,000 pages/month): Inspect every 3–6 months. Run the printer's built-in clean cycle monthly.
• Heavy use (over 2,000 pages/month): Inspect every 1–3 months. Schedule professional servicing annually.

Beyond drum cleaning, comprehensive laser printer maintenance includes regularly cleaning the paper feed rollers, fuser, and paper path. If you find paper jams are becoming more frequent alongside print quality issues, it may indicate broader maintenance is needed — our article on how to clean printer rollers is a good companion read to this guide.

Drum units have rated lifespans measured in page counts — typically 12,000 to 30,000 pages depending on the model. Your printer's status page or driver software will often display remaining drum life as a percentage. When the drum unit reaches the end of its rated life, replacement is the most cost-effective solution regardless of cleaning. Using a drum beyond its rated lifespan can result in declining print quality that no amount of cleaning will fix, and in rare cases, can cause toner to contaminate the fuser or paper path.

Store spare drum units in their original packaging in a cool, dark environment away from direct light and humidity extremes. This preserves the photosensitive coating and maximizes the unit's usable lifespan from the moment you install it.

Keeping your laser printer's drum clean is a straightforward habit that pays real dividends in print quality, reduced consumable costs, and extended printer life. Combined with clean rollers, quality paper, and periodic professional servicing for high-volume machines, drum maintenance ensures your laser printer continues delivering the sharp, reliable output it was designed for.
