How to Connect a Projector to a Laptop

I was fifteen minutes from a big client presentation when I realized the conference room projector and my laptop were staring at each other like strangers at a party — no signal, no handshake, just a blank white wall. A borrowed adapter and a frantic Google search later, I got it working. That scramble taught me more about projector connections in one afternoon than years of casual use ever had. If you want to know how to connect a projector to a laptop without the last-minute panic, this guide covers every method, every gotcha, and every setting you need to know. Whether you're setting up for a boardroom, a classroom, or a backyard movie night, our projector resource hub has you covered.

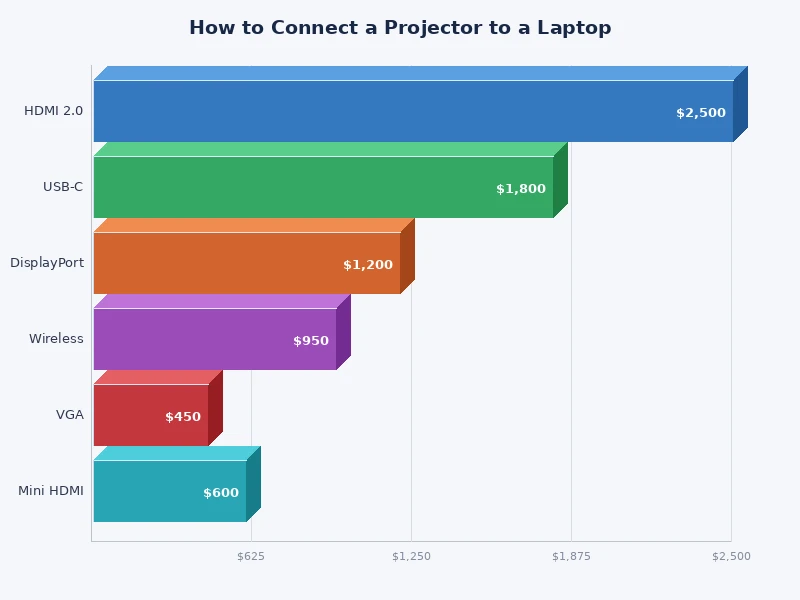

Projector Connection Methods at a Glance

Before you reach for a cable, it helps to know what your options actually are. Modern laptops and projectors support several different interfaces, and the best one depends on your hardware, room setup, and how much latency you can tolerate. Here's a fast overview of every major method.

Wired Connection Options

Wireless Connection Options

• Miracast — Built into Windows 10/11 and many Android devices. Works with Miracast-compatible projectors natively.
• Apple AirPlay — For MacBooks and iPhones projecting to AirPlay-enabled projectors or via Apple TV.
• Google Chromecast / Chromecast Ultra — Plug a Chromecast dongle into the projector's HDMI port; cast from Chrome browser or Android.
• Projector's built-in Wi-Fi app — Many mid-range and premium projectors ship with proprietary apps (Epson iProjection, BenQ InstaShow, etc.).
• HDMI wireless transmitter kit — A transmitter plugs into your laptop's HDMI port and sends signal wirelessly to a receiver at the projector. No software required.

Understanding throw ratio matters just as much as connection type — if your projector is too close or too far from the screen, no cable will fix a distorted image.

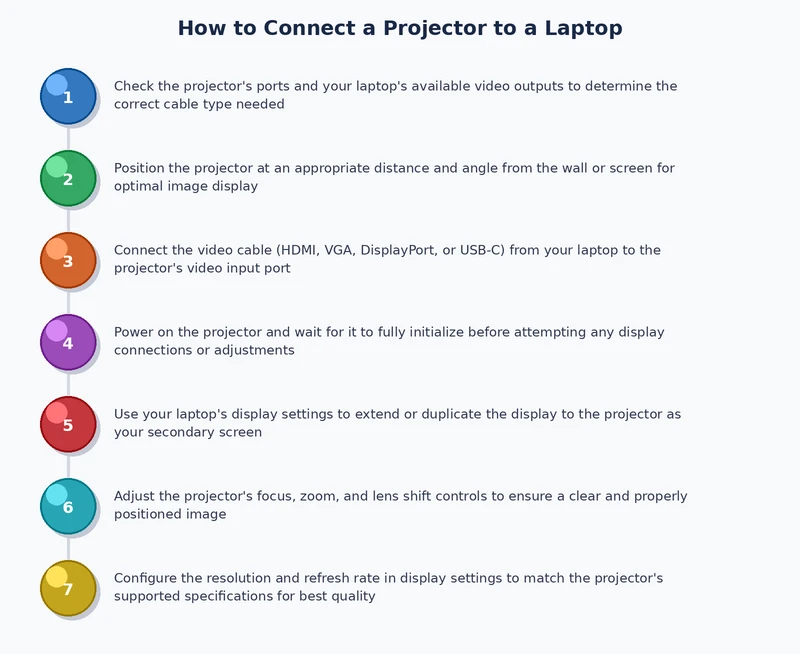

How to Connect a Projector to a Laptop: Step-by-Step

Each connection method has its own steps and potential trip-ups. Follow the relevant section below based on the port you're using.

Using HDMI

HDMI is the gold standard for connecting a projector to a laptop. It carries both video and audio over a single cable with zero quality loss.

1. Power off both the laptop and the projector.
2. Plug one end of the HDMI cable into the laptop's HDMI port.
3. Plug the other end into the projector's HDMI input (usually labeled HDMI 1 or HDMI 2).
4. Power on the projector first, then the laptop.
5. On the projector's remote or keypad, select the correct HDMI input source.
6. If nothing appears, use your laptop's display shortcut (see Display Settings section below).

Using USB-C / Thunderbolt

Not all USB-C ports support video output — only those with DisplayPort Alt Mode or Thunderbolt 3/4 do. Check your laptop's spec sheet before buying an adapter.

1. Purchase a USB-C to HDMI adapter or cable (not all USB-C cables carry video).
2. Connect the USB-C end to your laptop.
3. Connect the HDMI end to the projector.
4. Select the HDMI source on the projector.
5. On macOS, go to System Settings → Displays to arrange screens.
6. On Windows, press Win + P and choose your display mode.

Pro tip: If your USB-C adapter supports Power Delivery, choose one that also charges your laptop — one fewer cable to manage during a long presentation.

Using VGA

VGA is an analog signal, so expect slightly softer image quality, especially at high resolutions. It also carries no audio — you'll need a separate 3.5 mm audio cable or Bluetooth speaker.

1. Connect the VGA cable between laptop and projector (the connector has 15 pins and screws on each side — hand-tighten them).
2. For audio, run a 3.5 mm cable from the laptop's headphone jack to the projector's audio-in port (if available) or to an external speaker.
3. Power on both devices and select VGA source on the projector.
4. If your modern laptop lacks a VGA port, use a USB-C or HDMI to VGA adapter.

Going Wireless

Wireless projection removes cable clutter but introduces setup complexity and occasional latency. Here's the quickest path for each platform:

• Windows (Miracast): Press Win + K, select your projector from the device list, and choose your display mode.
• Mac (AirPlay): Click the Control Center icon → Screen Mirroring → select the projector or Apple TV connected to it.
• Chromecast: Open Chrome browser → three-dot menu → Cast → select your device → choose "Cast desktop."
• Proprietary app: Install the manufacturer's app (Epson iProjection, BenQ InstaShow Presenter), connect to the projector's Wi-Fi network or enter the on-screen PIN.

If you enjoy wireless display setups, you'll find a similar approach useful when you want to connect a laptop to a TV wirelessly — many of the same protocols apply.

Configuring Display Settings for Best Results

Getting a signal is only half the job. Proper display configuration determines whether your audience sees a sharp, correctly sized image or a stretched, cropped mess.

Windows Display Settings

Press Win + P to open the projection sidebar. You have four modes:

• PC screen only — Only your laptop screen is active. Projector shows nothing.
• Duplicate — Both screens show the same content. Best for presentations.
• Extend — Projector acts as a second monitor. Good for moving windows independently.
• Second screen only — Laptop screen off, projector only. Useful for kiosk or theater setups.

For resolution: right-click desktop → Display settings → scroll to the detected projector → set resolution to match the projector's native resolution (check the manual or spec sheet). Mismatched resolutions cause letterboxing or blurring. Also, if your laptop feels sluggish running two displays, our guide on how to speed up a slow laptop has targeted fixes.

macOS Display Settings

1. Go to System Settings → Displays.
2. Click Arrangement to set mirror or extended layout.
3. Drag the white menu-bar rectangle to the screen you want as primary.
4. Set the projector's resolution to its native value — macOS usually detects this automatically.
5. For color accuracy in a dark room, switch the projector to the projector's Cinema or Movie mode rather than leaving it on the default Dynamic preset.

The HDMI standard on Wikipedia has a detailed breakdown of version differences (2.0, 2.1, etc.) if you want to understand bandwidth limits for 4K or 8K projection.

Wired vs. Wireless: Choosing the Right Connection

This is the question most people overthink. The honest answer: wired is almost always more reliable; wireless is almost always more convenient. The right choice depends on your specific situation.

When Wired Is the Better Choice

• You're playing back video with audio and can't tolerate sync issues.
• The Wi-Fi environment is congested (corporate offices, conference centers).
• You need zero input lag — live demos, interactive software, gaming.
• The projector is older and lacks wireless capability.
• You're projecting in a location with no reliable Wi-Fi.
• Setup time is short and you just need it to work immediately.

When Wireless Makes More Sense

• You need to move freely around the room during a presentation.
• Multiple presenters are switching laptops frequently.
• Cable runs would be long, messy, or a trip hazard.
• Content is primarily static slides — latency isn't noticeable at low frame rates.
• You're projecting in a living room or outdoor setting for casual use.

Also consider your screen surface. Knowing whether to use a projector screen or a white wall affects perceived sharpness regardless of how you connect — and it's an easy variable to optimize.

Projector Connection Myths, Busted

A lot of bad advice circulates around projector setups. Here are the most persistent myths and what's actually true.

Myth: Any HDMI Cable Works Identically

Reality: For most use cases under 15 feet, a standard HDMI cable is fine. But cable quality does matter in specific situations:

• Cables over 25 feet (7.5m) can experience signal degradation — use an active HDMI cable or an HDMI over Ethernet extender.
• 4K at 60Hz requires a High Speed HDMI or Premium High Speed HDMI cable. Standard speed cables cap at 1080p/60.
• HDMI 2.1 cables are needed for 4K/120Hz or 8K content — relevant for gaming projectors.
• Very cheap cables (under $3) sometimes have inconsistent shielding that causes intermittent signal drops.

Myth: Higher Resolution Always Looks Better on a Projector

Reality: Native projector resolution is what limits perceived sharpness — feeding a 4K signal into a 1080p projector doesn't improve the image. The projector downscales it, and depending on the scaling algorithm, results vary. Additionally, ambient light and screen size affect perceived quality more than resolution alone. Before obsessing over 4K output, read up on how many lumens your projector actually needs for your environment — a dim projector in a bright room will look poor at any resolution.

More myths worth dispelling:

• "VGA is always worse than HDMI" — At 1080p or below in a well-lit room, VGA looks nearly identical to HDMI for static slides. The difference is noticeable mainly in motion video or low-light environments.
• "Wireless projection is always laggy" — On a clean 5GHz network with a modern Miracast or AirPlay device, lag is typically under 100ms — imperceptible for slides, and manageable for video.
• "You need to restart the laptop to detect the projector" — Almost never true. Use Win + P or the macOS Display settings to detect the new display without rebooting.
• "The projector's built-in speakers are good enough" — Most projector speakers are weak and tinny. For anything beyond a quick meeting, connect to external speakers. If you're running sound through a soundbar, the same pairing logic from connecting a soundbar to a computer applies here.

Frequently Asked Questions

Final Thoughts

Knowing how to connect a projector to a laptop correctly — and troubleshoot it when things go sideways — is a skill that pays off every time you step in front of an audience or set up a home theater. Start with HDMI for reliability, keep a USB-C adapter in your bag for modern laptops, and test everything at least ten minutes before you actually need it. Browse our full projector guides to find the right model, screen, and setup tips for your space.
