How to Connect a Projector to a Streaming Device

Connecting a projector to a streaming device is straightforward: plug the streaming stick into the projector's HDMI port, select the correct input source, and follow the on-screen setup wizard. That's the short answer. For wireless methods, adapter quirks, audio fixes, and picture optimization, this guide covers everything about how to connect a projector to a streaming device—including Fire TV Stick, Roku, Chromecast, and Apple TV.

Whether you're shopping for a new display from our projectors collection or already have a unit in hand, the steps below apply to virtually every streaming device on the market.

What You Need to Know Before You Start

Before touching a cable, it helps to understand the connection landscape. Most projectors made in the last decade include at least one HDMI port, which carries both audio and video in a single cable—everything you need for a plug-and-play streaming setup. Knowing your projector's available inputs determines which method you'll use.

Connection Types at a Glance

• HDMI (most common): Carries audio and video over one cable. Compatible with Fire TV Stick, Roku Streaming Stick, Apple TV, Chromecast with Google TV, and NVIDIA Shield.
• Wireless / Screen Mirroring: Uses Miracast, AirPlay, or Chromecast casting from a phone, tablet, or laptop. Requires a smart projector or a separate wireless adapter dongle.
• USB-A port: Some projectors can power a streaming stick directly via USB—no wall adapter required.
• VGA (legacy): Older projectors may only offer VGA. An HDMI-to-VGA adapter bridges the gap, though audio requires a separate cable.

Placement decisions matter here too. Understanding throw ratio helps you position the projector correctly before you run any cables, saving you the frustration of rerouting everything after setup.

Which Streaming Devices Work With Projectors

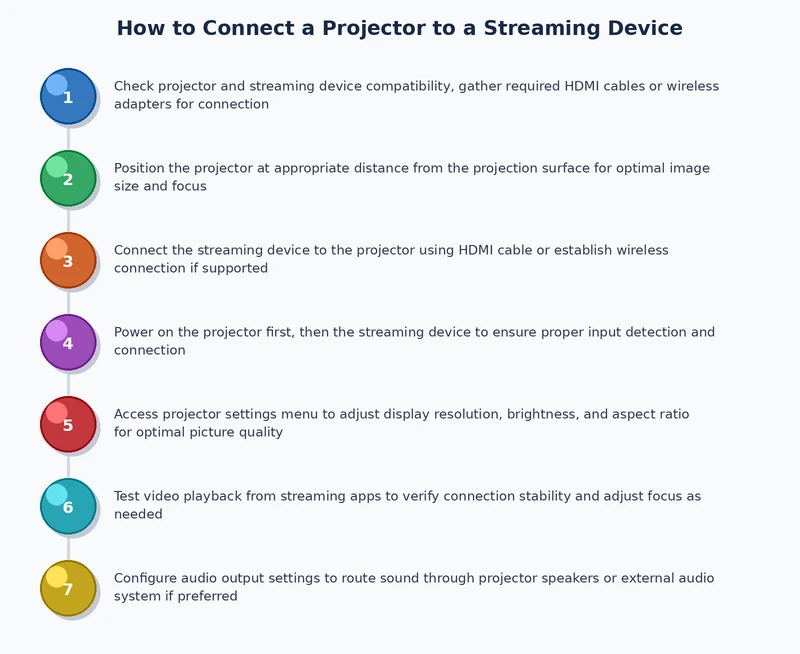

Step-by-Step: How to Connect a Projector to a Streaming Device

The method you choose depends on your projector's available ports. Here are the three main approaches, from simplest to most involved.

HDMI Streaming Stick Method

This is the most reliable way to connect a projector to a streaming device. It works on virtually any projector with an HDMI port, regardless of age or whether it's "smart."

1. Plug the streaming stick into the projector's HDMI port (labeled HDMI 1 or HDMI 2).
2. Power the streaming stick via the projector's USB-A port if available, or use the included wall adapter for guaranteed stable power.
3. Turn on the projector and press the Input or Source button on the remote to select the correct HDMI channel.
4. Follow the on-screen setup wizard on the streaming device—connect to Wi-Fi, sign in to your streaming account, and let it finish updating.
5. Adjust the image using the projector's keystone correction and focus ring until the picture is sharp and fills the screen evenly.

Pro tip: If the streaming stick reboots randomly or flickers, the projector's USB port isn't supplying enough current. Switch to the wall adapter—problem solved in under a minute.

Wireless Screen Mirroring Method

If you want to cast directly from a phone or tablet, wireless mirroring eliminates the need for a dedicated streaming stick. This also works when the projector itself has built-in Chromecast, AirPlay, or Miracast support.

• Android (Miracast / Cast): Go to Settings → Connected Devices → Cast. Select your projector or a Miracast adapter plugged into its HDMI port.
• iPhone / iPad (AirPlay): Open Control Center, tap Screen Mirroring, and choose the AirPlay-compatible projector or Apple TV connected to it. Both devices must be on the same Wi-Fi network.
• Chromecast casting: Open a supported app (YouTube, Netflix), tap the Cast icon in the top corner, and select your Chromecast device.

For a full walkthrough of casting from mobile, our guide on how to mirror a tablet screen to a TV wirelessly covers the same techniques that work equally well with projectors.

USB Power and Legacy Input Methods

• USB-powered sticks: Roku Streaming Stick and Fire TV Stick can run entirely from a projector's USB-A port—no wall outlet required, keeping the setup cable-free.
• VGA-only projectors: Use an active HDMI-to-VGA adapter between the streaming stick and the projector. Note that HDMI-to-VGA adapters do not carry audio—add a 3.5mm audio cable from the adapter's headphone jack to the projector or an external speaker.
• Built-in smart projector apps: Some Android-based projectors include Netflix, Prime Video, or YouTube natively. Simply sign in—no external device needed, though response times are often slower than a dedicated stick.

Streaming Projector Myths You Can Stop Believing

Outdated advice spreads fast online. Here are the most common misconceptions about projector streaming—and what's actually true.

Myth: You Always Need Wi-Fi at the Projector's Physical Location

• Reality: The streaming device connects to Wi-Fi—the projector itself doesn't need a network connection at all. As long as the stick reaches your router's signal, you're fine.
• Weak signal where the projector sits? A Wi-Fi range extender or powerline adapter kit fixes this without running Ethernet cables across the room.
• Alternatively, a streaming device with ethernet support (like NVIDIA Shield or Roku Ultra) can use a wired connection for rock-solid reliability.

Myth: Only Smart Projectors Can Stream

• Reality: Any projector with an HDMI port can stream. The external streaming device supplies all the "smart" functionality—the projector just displays the signal.
• A projector from several years ago becomes a capable streaming display with a $30–$50 stick.
• The brightness (lumens) of your projector has a far greater impact on streaming picture quality than whether it has built-in apps.

Worth knowing: Smart projector apps frequently lag behind dedicated streaming sticks in app updates and performance. For the latest features and fastest UI, an external streaming device usually wins.

Diagnosing and Fixing Connection Problems

Most issues that arise when connecting a projector to a streaming device trace back to input selection, inadequate power, or audio routing. Here's how to work through them systematically.

No Signal or Black Screen

• Wrong input selected: This is the most common cause. Press the Source or Input button on the projector remote and cycle through all available HDMI channels.
• Streaming stick not getting power: Check that the USB cable is fully seated. If using the projector's USB port, try the wall adapter instead—some USB ports only supply power when the projector is on and fully booted.
• HDCP handshake failure: Unplug the HDMI cable from both ends, wait 10 seconds, and reconnect firmly. This resets the copy-protection handshake that sometimes stalls on first connection.
• Defective cable or port: Test a different HDMI port on the projector if one is available. Try a second HDMI cable—budget cables can fail to negotiate 4K signals reliably.

Audio Not Coming Through

• Confirm the projector's volume isn't muted or set to zero before assuming a hardware fault.
• On the streaming device, go to Settings → Audio and set the output to Stereo or Auto. Dolby Atmos pass-through is unsupported on most projector speakers and causes silence.
• For better sound quality, connect a soundbar or external speaker to the projector's 3.5mm or optical audio output. If audio still doesn't come through after connecting, consult our guide on fixing soundbar no-sound issues—the same diagnostic steps apply.
• Bluetooth speaker option: pair a Bluetooth speaker directly to the streaming device (if the device supports it) for a completely wire-free audio setup.

Quick fix: If the projector's built-in speakers produce sound but an external soundbar stays silent, the problem is almost always the audio format setting on the streaming device—switch to PCM or Stereo output.

Pro Tips for a Better Streaming Experience

Once the connection is solid, these adjustments make a measurable difference in what you actually see and hear.

Optimizing Picture Quality

• Switch to Movie or Cinema mode: Projectors default to Dynamic mode (oversaturated, too bright). Movie mode produces accurate colors suited to streaming content.
• Control ambient light: Darkening the room improves perceived contrast more than any setting. If you're torn between a dedicated screen and a white wall, our breakdown of projector screen vs white wall explains the trade-offs clearly.
• Match output resolution: Set the streaming device's video output to the projector's native resolution (typically 1080p). Sending 4K to a 1080p projector wastes processing power without improving sharpness.
• Disable HDR if the image looks washed out: Some projectors apply poor HDR tone mapping. If highlights are clipped or shadows are crushed, turn off HDR in the streaming device's display settings and stick with SDR.

Getting Better Audio

• Built-in projector speakers are adequate for casual viewing but lack bass and clarity for film or music.
• A compact Bluetooth soundbar placed near the screen is the lowest-effort audio upgrade—no extra HDMI or optical cables required.
• For a full surround setup, run an optical cable from the projector's TOSLINK output to an AV receiver. This keeps the video path simple while allowing full multichannel audio.
• If you use a projector in multiple rooms, a portable Bluetooth speaker paired to the streaming device travels with the setup effortlessly.

Keeping Your Projector Setup Running Smoothly

A streaming projector setup requires minimal upkeep, but a few consistent habits prevent the most common hardware failures.

Lamp and Lens Care

• Always let the projector fully cool down before unplugging. The internal fan needs to run for one to two minutes after shutdown to protect the lamp—cutting power early dramatically shortens bulb life.
• Clean the lens monthly using a microfiber cloth and optical lens solution. Paper towels and household sprays scratch anti-reflective coatings.
• Monitor lamp hours in the projector's settings menu. Order a replacement lamp before hitting the rated maximum—sudden burnout mid-session is avoidable.
• Maintain ventilation clearance: Keep at least 30 cm (12 inches) of clear space around all vents. Blocked airflow causes thermal shutdowns and premature component failure.

Maintaining Your Streaming Device

• Enable automatic software updates on the streaming stick. Outdated firmware causes app crashes, buffering spikes, and service authentication errors.
• Clear app caches every few months: Settings → Applications → Manage Installed Applications → select an app → Clear Cache. This recovers storage and improves load times without losing login credentials.
• If the streaming stick becomes persistently sluggish, a factory reset followed by a clean reinstall of only the apps you use typically restores full performance.

Frequently Asked Questions

Key Takeaways

• Any projector with an HDMI port can work with a streaming stick—no built-in smart features required, just an external device and the right input selected.
• The wired HDMI method is the most reliable; wireless mirroring works but adds latency and depends on a strong Wi-Fi signal at the projector's location.
• Most connection problems come down to the wrong input source, insufficient USB power to the streaming stick, or an incompatible audio format setting.
• Extend the life of the setup by letting the projector cool fully before unplugging, keeping the lens clean, and enabling automatic updates on the streaming device.
