How to Connect Sony Soundbar to TV

According to consumer audio research, more than 60 percent of soundbar owners use a connection method that limits their audio quality—not because better options don't exist, but because the setup steps were never clearly explained. If you've been searching for how to connect Sony soundbar to TV and ended up more confused than when you started, you're not alone. Sony produces some of the most capable soundbars on the market, from the compact HT-S series to the flagship HT-A9M2, but even excellent hardware underperforms when the signal path is wrong. This guide covers every practical connection method, the real trade-offs between them, and the post-connection settings that most people skip entirely. Before diving in, browse our soundbar resource hub for a quick overview of current Sony models and how they compare.

Understanding Sony Soundbar Connection Technologies

HDMI ARC and eARC Explained

HDMI ARC (Audio Return Channel) and its successor eARC (Enhanced Audio Return Channel) are the connection standards that reshaped home theater audio over the past decade. ARC, introduced as part of the HDMI 1.4 specification, allows audio to travel in both directions over a single HDMI cable—your TV receives video from a streaming device while simultaneously sending audio back down to the soundbar. This eliminates the second cable that older setups required. eARC, which arrived with HDMI 2.1, expands that bandwidth significantly, enabling lossless formats like Dolby Atmos and DTS:X that standard ARC simply cannot carry due to its narrower data channel. Most Sony soundbars released in the last several years support eARC, but benefiting from it depends on whether your TV's HDMI port is actually an eARC port—not just a standard ARC port. The eARC-capable port is typically labeled on the TV's rear panel and is usually found on HDMI port 1. For a thorough technical background on how the standard evolved, Wikipedia's HDMI article covers the specification's history in detail.

Optical, Bluetooth, and Analog Options

When HDMI ARC isn't available or isn't working reliably, the optical cable—using a TOSLINK connector—is the next best wired option. It carries compressed Dolby Digital 5.1 without compatibility issues across virtually every TV made in the past 15 years. The limitation is real though: optical cannot carry Dolby Atmos or DTS:X, and it provides no control channel, so volume passthrough must be handled separately unless your TV offers a workaround. Bluetooth delivers a wireless path but introduces both audio compression and latency that most users find problematic for synchronized movie dialogue. Understanding how to connect a soundbar to TV using Bluetooth is a useful fallback skill, but for Sony soundbars wired connections nearly always deliver better results. The 3.5mm analog input should be treated as a last resort—it is stereo-only and provides no dynamic range benefit over your TV's built-in speakers.

What You Need Before You Start

Essential Cables and Adapters

The most common mistake people make before attempting to connect a Sony soundbar is assuming the cable included in the box is the right one. Sony typically ships its soundbars with an HDMI cable, but it may be a standard HDMI cable rather than an HDMI 2.1 cable. If your setup requires eARC, a standard HDMI cable physically cannot carry the full bandwidth. Check the cable's packaging for "HDMI 2.1" or "48Gbps" before trusting it. If you are using an optical connection, a TOSLINK cable is almost never included and must be purchased separately—budget between $8 and $20 for a reliable option. For Bluetooth, no cable is needed, but that convenience trades against the audio quality limitations described above. It is also worth confirming your TV's HDMI ARC port location before you move any furniture—on many televisions only one specific HDMI port supports ARC, and plugging into the wrong port produces no audio no matter what settings you adjust.

TV Audio Settings to Verify First

Before connecting anything, navigate to your TV's audio settings and confirm the audio output is set to "External Speaker" or "Audio System" rather than the built-in TV speakers. Many televisions default to internal speakers and will not automatically switch to the soundbar even after a physical connection is established. On Sony BRAVIA TVs this setting is typically found under Settings → Sound → Audio Output. On Samsung and LG televisions the path varies but the option exists under Sound settings. For televisions from other manufacturers, look for a "Speaker Output" or "Digital Audio Output" option and set it to "Bitstream" rather than "PCM" if you want Dolby Digital to pass through correctly to the soundbar. Confirming these settings before you connect the cable saves significant troubleshooting time and prevents the frustrating scenario where the connection appears correct but produces no sound.

How to Connect Sony Soundbar to TV: The Fastest Methods

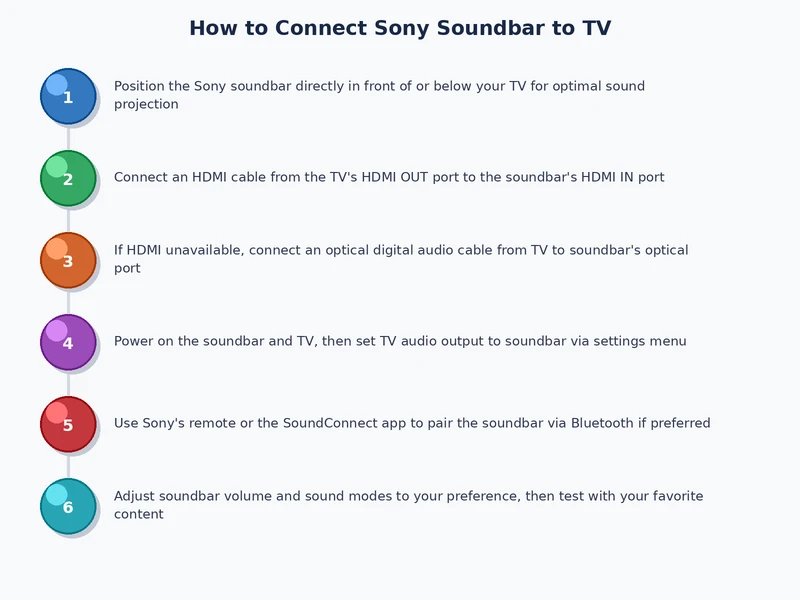

Connecting via HDMI ARC Step by Step

HDMI ARC is the fastest and most capable way to connect your Sony soundbar, and with the right TV and cable the entire process takes under three minutes. Start by locating the HDMI ARC port on your TV—it is labeled "ARC" or "eARC" on the rear panel, typically on HDMI 1 or HDMI 2. Locate the matching HDMI ARC port on the back of your Sony soundbar. Plug one end of the HDMI cable into the TV's ARC port and the other end into the soundbar's ARC port. Power on both devices. On most Sony BRAVIA televisions, BRAVIA Sync—Sony's implementation of HDMI-CEC—will detect the soundbar automatically and switch the audio output without any manual input. If it does not switch automatically, go into your TV's audio settings and manually select the external speaker output.

If your Sony soundbar shows as connected but produces no sound, the most common cause is that the TV's audio output is still set to internal speakers—check this setting before replacing any cables or restarting devices.

One step many users overlook: after the physical connection is made, verify that eARC is specifically enabled on the TV. On Sony BRAVIA TVs, eARC is often disabled by default even when the port physically supports it. Go to Settings → Sound → eARC Mode and set it to Auto. Without this step, the TV will fall back to standard ARC bandwidth and you will lose the ability to pass Dolby Atmos and other lossless formats even if your soundbar and cable both support them.

Setting Up with an Optical Cable

For TVs that lack HDMI ARC or where ARC produces persistent compatibility issues, the optical cable offers a stable and straightforward alternative. Locate the optical output port on your TV's rear panel—it resembles a small square opening that glows orange when active and usually has a hinged dust cover that pivots open. On your Sony soundbar, find the matching optical input. Insert the TOSLINK cable with the connector oriented to match the port—it is keyed and will only insert one way. On the TV, set the digital audio output to optical and choose "Bitstream" format rather than PCM to ensure Dolby Digital passes through correctly. On the soundbar itself, select the optical input using the input selector button on the unit or the remote. The setup produces no Dolby Atmos, but it delivers reliable Dolby Digital 5.1 on virtually any television made in the last 15 years.

Connection Scenarios That Actually Come Up

Older TVs Without HDMI ARC

HDMI ARC became standard on consumer televisions around 2009, but a significant number of older sets still in use today predate it or implement it unreliably. If your TV was purchased before 2012, or if the HDMI ports are not labeled ARC anywhere on the rear panel, your best path is the optical cable. Most Sony soundbars from the last decade include an optical input as a standard feature—it is rarely removed even on budget models. The audio quality ceiling imposed by optical—no Dolby Atmos, no lossless formats—is a real limitation, but it is largely irrelevant if your TV itself cannot decode or pass those formats anyway. For very old televisions that lack both HDMI ARC and an optical output, the 3.5mm analog connection may be the only wired option available. In that case, Bluetooth may actually provide a better listening experience than a long analog cable run, and it eliminates the cable routing problem through entertainment cabinetry entirely. Older televisions with composite audio outputs (red and white RCA jacks) can also connect via an RCA-to-3.5mm adapter, but the result is stereo-only at standard dynamic range—identical in quality to the TV's own speakers.

On TVs that have an HDMI ARC port but it isn't working, try powering off both devices completely, disconnecting the HDMI cable, waiting 30 seconds, then reconnecting and powering them on in sequence—TV first, then soundbar.

Fitting the Setup into Your Living Room

Cable management is a practical concern that gets skipped in most setup guides. The HDMI cable running from your TV's rear panel to a soundbar sitting directly below typically needs 3 to 4 feet—not the 6-foot cables commonly included, which leave excess cord that bunches behind the TV stand. A right-angle HDMI adapter at the TV end costs around $8 and allows a tighter cable run that is far easier to conceal. For wall-mounted televisions, routing an HDMI cable to a soundbar mounted on the wall beneath the display often requires either running through the wall or using a surface conduit channel. In those installations the optical cable, being thinner and more flexible, is sometimes the practical choice even when HDMI ARC is technically available on the TV—the audio quality difference between ARC and optical for standard streaming content is small, while the installation difference is significant. If the soundbar sits on a shelf some distance from the TV, use a cable that is at least 6 inches longer than the measured gap to allow for routing around corners without tension on the connectors.

Getting the Best Audio After You Connect

Configuring Your TV's Audio Output

The physical connection is only half of the equation when learning how to connect Sony soundbar to TV correctly. After plugging in, the audio output format your TV sends through the HDMI ARC or optical port determines what your soundbar actually receives and processes. If the TV is set to PCM output, the soundbar receives a standard stereo signal even if the source content is encoded in Dolby Atmos. To pass surround sound formats correctly, the TV's digital audio output must be configured as "Bitstream" or "Dolby Digital." On most modern televisions this setting is found in Sound Settings under "Digital Audio Output" or "Audio Format." For Dolby Atmos specifically, the setting should read "Dolby Digital+" or "Auto" on Sony BRAVIA TVs. This single configuration is the most common fix for soundbars that are connected and powered on but not producing surround sound—the physical connection is correct but the signal being sent through it is not.

BRAVIA Sync and CEC Features

Sony's BRAVIA Sync is the brand's proprietary implementation of HDMI-CEC, an industry standard that allows HDMI-connected devices to share control signals. When configured correctly, BRAVIA Sync allows your TV remote to control the soundbar's volume and power state directly, eliminating the need to switch between remotes. Understanding how to control a soundbar with your TV remote through CEC is one of the most practically useful post-connection steps, and for Sony soundbars connected to Sony TVs the integration is exceptionally seamless. To enable it, navigate to your BRAVIA TV's settings under External Inputs → BRAVIA Sync Settings and ensure BRAVIA Sync Control is set to On. On the soundbar side, no additional settings are required—it responds to CEC commands by default. One recurring BRAVIA Sync issue worth noting: if the soundbar occasionally turns on or switches inputs without any input from you, a conflicting CEC command from another connected device such as a Blu-ray player or streaming stick is usually the cause. Setting the TV to ignore CEC signals from specific inputs resolves this without disabling BRAVIA Sync entirely.

Cables, Adapters, and What It Actually Costs

What to Spend and What to Skip

The audio cable market is saturated with products at wildly varying price points, and most of the premium pricing is not justified by any measurable performance difference. For HDMI ARC connections, a certified high-speed HDMI 2.0 cable costs between $8 and $15 and performs identically to a $50 cable in every reliable test. If you need eARC support, budget $12 to $20 for a cable labeled "Ultra High Speed HDMI" with a 48Gbps data rating—this specification is what eARC actually requires, and it is not negotiable. For optical cables, a $10 TOSLINK cable from a reputable seller is indistinguishable from premium alternatives because the signal is entirely digital: it arrives intact or it doesn't, and no amount of cable metallurgy changes that binary outcome. The one area where build quality genuinely matters is cable length. HDMI runs longer than 15 feet benefit from cables with better shielding and signal integrity, where cheaper cables can introduce intermittent dropouts that are easy to misdiagnose as settings problems.

When an Upgrade Makes Sense

If you are currently using an optical cable because your TV lacks HDMI ARC, upgrading your television is the investment that unlocks the full capability of your Sony soundbar. A TV with eARC support allows the soundbar to receive Dolby Atmos from Netflix, Disney+, and Apple TV+—a meaningful audio improvement that no cable substitution or settings adjustment can replicate via the optical path. Similarly, if you own a Sony soundbar that supports 360 Reality Audio or Dolby Atmos object-based processing but are connecting it via optical, you are receiving none of the spatial audio rendering that distinguishes that model from a cheaper alternative. The connection method sets the ceiling for what your soundbar can deliver, not just the floor. For users who already have HDMI ARC and are wondering whether upgrading to eARC is worth the cost, the answer depends almost entirely on whether you stream content that actually carries Dolby Atmos—if your primary source is broadcast television or standard cable, the difference will be inaudible.

The right connection method doesn't just change how your soundbar sounds—it determines whether you're actually using the hardware you paid for.
