How to Connect Soundbar to Insignia TV

If you've just unboxed a new soundbar and want to upgrade your TV's audio, knowing how to connect soundbar to Insignia TV is the first step to a better home theater experience. Insignia TVs — sold exclusively at Best Buy — are budget-friendly sets that pair well with external audio gear, but the connection process isn't always obvious. Whether your soundbar uses HDMI ARC, optical cable, Bluetooth, or a simple 3.5mm aux jack, this guide walks you through every method clearly and in order. You'll also find tips on troubleshooting common issues and choosing the right connection for your setup.

Before diving in, it helps to check what ports your specific Insignia model has. Older budget models may lack HDMI ARC, while newer Fire TV Edition sets support eARC. Knowing what you're working with saves time and frustration. For a full overview of how soundbars communicate with streaming devices beyond your TV, see our guide on how to connect a soundbar to a Fire Stick.

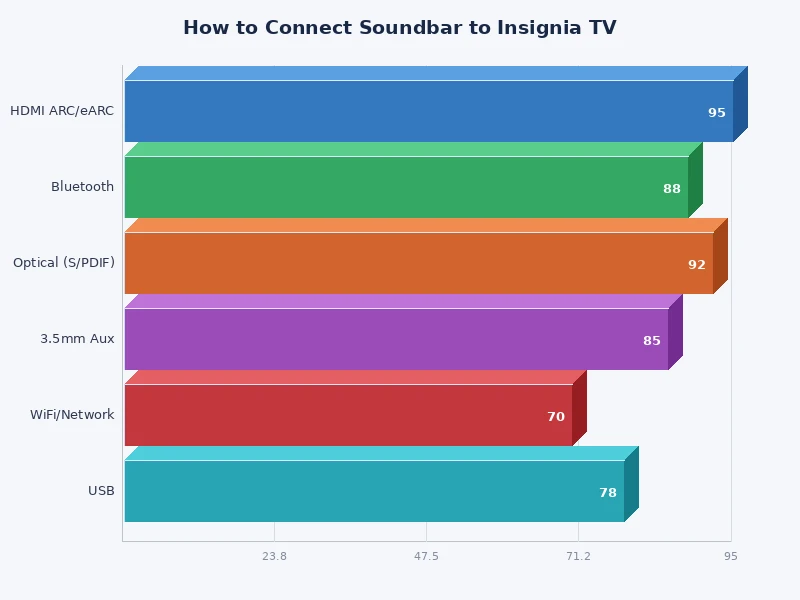

Connection Methods at a Glance

Insignia TVs typically support four ways to connect an external soundbar. Each has trade-offs in audio quality, latency, and ease of setup. The table below summarizes what you need to know before picking a method.

According to Wikipedia's overview of HDMI Audio Return Channel, ARC was introduced in HDMI 1.4 and allows a TV to send audio upstream to a receiver or soundbar over the same cable — eliminating the need for a separate audio cable entirely.

Method 1: HDMI ARC (Best Quality)

HDMI ARC is the recommended way to connect a soundbar to an Insignia TV when both devices support it. It carries high-quality digital audio both ways over a single cable and lets you control the soundbar volume with the TV remote — a feature called CEC (Consumer Electronics Control). Most Insignia TVs made in the last several years include at least one HDMI ARC port, usually labeled on the TV's input panel.

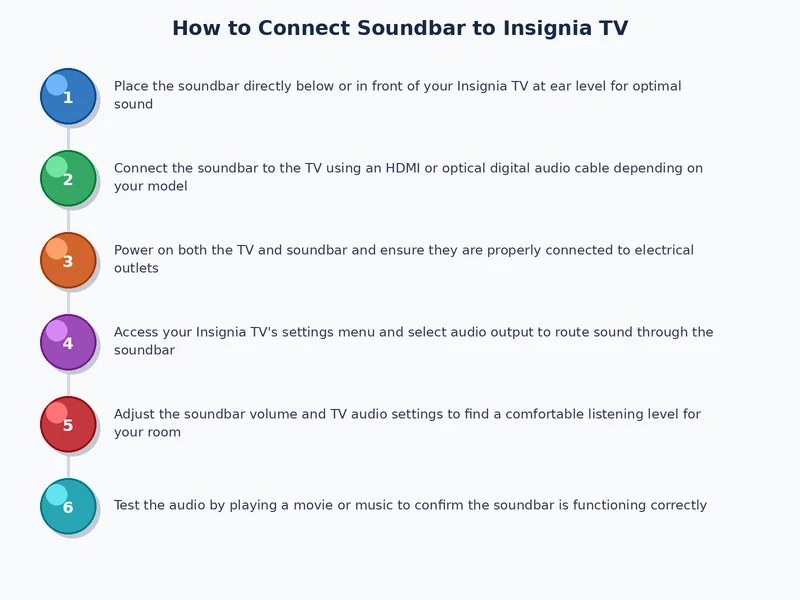

Step-by-Step Instructions

1. Locate the HDMI ARC port on your Insignia TV. It's typically labeled "HDMI ARC" or "HDMI 1 (ARC)" on the back or side panel.
2. Connect one end of an HDMI cable to the ARC-labeled port on the TV.
3. Connect the other end to the HDMI ARC or HDMI OUT (ARC) port on your soundbar. Do not use a standard HDMI IN port — it must be the ARC-designated one.
4. Power on both devices.
5. On the TV remote, press the Input or Source button and select the HDMI input you used.
6. Navigate to Settings → Audio → Audio Output and set it to ARC or External Speaker.
7. Test with a video — sound should now come from the soundbar instead of the TV speakers.

Enabling CEC on Insignia TV

CEC allows a single remote to control volume on both the TV and soundbar simultaneously. On Insignia TVs, CEC may be labeled differently depending on the model. Here's how to enable it:

1. Go to Settings → Device & Software (on Fire TV Edition models) or Settings → System on standard Insignia models.
2. Find CEC or HDMI CEC and toggle it On.
3. If your soundbar brand has its own CEC implementation (e.g., Samsung's Anynet+, Sony's Bravia Sync), enable it on the soundbar side as well via its menu or companion app.
4. Once enabled, lowering TV volume should automatically lower the soundbar volume.

If CEC doesn't seem to work, try unplugging both devices, reconnecting the HDMI cable, and powering the soundbar on before the TV. This forces the TV to detect the CEC device fresh on boot.

Method 2: Optical (Digital Audio)

Optical is the second-best option for learning how to connect soundbar to Insignia TV when HDMI ARC isn't available — or if you already have an HDMI port occupied by a streaming stick or game console. Optical supports up to Dolby Digital 5.1 surround sound, which is more than enough for most soundbars.

Connecting via Optical Cable

1. Remove the protective caps from both ends of the optical (TOSLINK) cable. The ends are typically covered with small plastic plugs to protect the lens.
2. Insert one end firmly into the Optical OUT port on the back of your Insignia TV. You should feel a click when it's fully seated.
3. Insert the other end into the Optical IN port on the soundbar.
4. Power on both devices.
5. Set the soundbar's input source to Optical using its remote or front-panel button.

Configuring Audio Output

After connecting the cable, you need to tell the Insignia TV to use the optical output:

1. Press the Menu or Settings button on the TV remote.
2. Go to Audio → Audio Output or Digital Audio Output.
3. Select Optical or S/PDIF (they refer to the same port on Insignia TVs).
4. If your soundbar supports Dolby Digital, also set Digital Audio Format to Dolby Digital rather than PCM. PCM sends stereo only; Dolby Digital enables 5.1 on compatible soundbars.

Method 3: Bluetooth Pairing

Not every soundbar has a physical port that matches your TV's outputs. Bluetooth is a convenient wireless alternative, though it introduces slightly more audio latency than a wired connection — which can occasionally cause lip-sync issues during dialogue-heavy content.

How to Pair Your Soundbar

1. Put your soundbar into Bluetooth pairing mode. This varies by brand — typically holding the Bluetooth button for three to five seconds until an LED flashes rapidly.
2. On your Insignia TV, go to Settings → Remotes & Bluetooth Accessories (Fire TV Edition) or Settings → Network → Bluetooth (standard models).
3. Select Add Bluetooth Device or Pair Device.
4. The TV will scan and display available devices. Select your soundbar from the list.
5. Once paired, the soundbar should appear as the default audio output. Confirm this in Settings → Audio → Audio Output.

When Bluetooth Won't Connect

Bluetooth pairing can fail for several reasons. If your soundbar appears in the list but fails to pair, try these fixes:

• Clear existing Bluetooth pairings on the soundbar and restart pairing mode.
• Move the soundbar within three feet of the TV during initial pairing to ensure a strong signal.
• Restart both the TV and soundbar before attempting to pair again.
• Check if the soundbar is still paired to another device (like a phone) — most soundbars can only maintain one active Bluetooth connection at a time.

For a deeper dive into Bluetooth audio problems, see our full guide on how to fix soundbar Bluetooth not connecting.

Method 4: AUX and RCA

If your soundbar is an older or very budget model without optical or HDMI ARC, an analog connection via 3.5mm AUX or RCA cables may be your only option. The audio quality is limited to stereo and is more susceptible to interference, but it works reliably when properly connected.

Using a 3.5mm AUX cable: Connect one end to the headphone jack on your Insignia TV (if present) and the other end to the AUX IN port on your soundbar. Note that using the headphone jack on some Insignia models automatically mutes the TV's internal speakers — which is exactly what you want.

Using RCA cables: Some Insignia TVs have red/white RCA audio output ports. Connect red to red and white to white on both the TV and the soundbar. Set the soundbar input to AUX or RCA accordingly.

In either case, the TV's audio output volume must not be muted. Set it to a consistent level (around 70%) and then use the soundbar's own volume control for day-to-day adjustments.

Optimizing Audio Settings on Insignia TV

Getting the physical connection right is only half the job. Insignia TVs have several audio settings that can make or break the sound quality coming from your new soundbar. Spending five minutes in the audio menu after connecting is worth it.

Audio Output Settings

Once your soundbar is connected, navigate to Settings → Audio on your Insignia TV. Key settings to review include:

• Audio Output: Set to ARC, Optical, or Bluetooth depending on your connection method. This tells the TV which physical output to use.
• TV Speakers: Set to Off when using an external soundbar. Otherwise, you may hear audio from both the TV and soundbar simultaneously, creating an echo effect.
• Volume Control Mode: If available, set to Fixed when using optical, so the TV doesn't try to adjust signal volume before sending it to the soundbar.
• Audio Delay (Lip Sync): If dialogue doesn't match mouth movements, use this slider to add a few milliseconds of delay to the video to resync it with the soundbar's audio output.

Dolby and DTS Passthrough

If you have a high-end soundbar that supports Dolby Atmos or DTS:X, you'll want to ensure the TV is passing through these formats rather than converting them to stereo PCM first. On newer Insignia Fire TV Edition models:

1. Go to Settings → Display & Sounds → Audio.
2. Set Dolby Digital Output to Best Available or Dolby Digital Plus.
3. Set Surround Sound to Auto — this lets the soundbar decode whatever format the content provides.

Note: Dolby Atmos passthrough requires an eARC connection (not standard ARC). Standard ARC can only carry up to Dolby Digital 5.1. If your Insignia TV only has ARC, you'll still get excellent surround sound — just not object-based Atmos.

Troubleshooting Common Problems

Even after following each step correctly, occasional issues can arise. Here are the most common problems people encounter when connecting a soundbar to an Insignia TV and how to resolve them quickly.

No sound from soundbar after connecting: Double-check that TV Speakers is set to Off and Audio Output matches your connection type. Also verify the soundbar is set to the correct input source — it won't play audio if it's waiting on Optical input while you connected via Bluetooth.

Sound from both TV and soundbar at once: Go to Settings → Audio → TV Speakers and turn it off. Some Insignia models reset this setting after a firmware update.

Soundbar remote not working after connection: This is a separate issue from the physical audio connection — it usually relates to IR codes or CEC conflicts. For a dedicated walkthrough, check our guide on how to fix soundbar remote not working.

Delayed or out-of-sync audio: This is most common with Bluetooth connections. Try switching to a wired optical or HDMI ARC connection if sync is critical (e.g., for gaming). If wired and still out of sync, use the Audio Delay / Lip Sync setting in the TV's audio menu.

Low volume even at max soundbar setting: Check that the TV's volume isn't set to a low fixed level. When using optical with Volume Control Mode set to Fixed, the signal level going to the soundbar is constant — only the soundbar's own volume knob matters. Increase TV volume to 100 if possible, then adjust on the soundbar.

HDMI ARC not detected: Try a different HDMI cable — not all HDMI cables support ARC. You need a High Speed HDMI cable (any cable bought in the last several years should qualify). Also ensure the ARC port on both devices is used, not a standard HDMI IN port on the soundbar.

For a professional setup that also involves gaming, the same fundamentals apply — see our guides on how to connect soundbar to PS5 for console-specific tips. If you need hands-on configuration help specific to your soundbar and Insignia TV model combination, visit our soundbar to Insignia TV connection service page for personalized support.
