How to Connect Soundbar to Xbox

Getting great sound from your Xbox can transform your gaming experience — and knowing how to connect soundbar to Xbox is the first step toward cinematic audio without a full home theater setup. Whether you own an Xbox Series X, Series S, or an older Xbox One, pairing a soundbar is straightforward once you understand the available connection options. This guide walks you through every method, from HDMI ARC to optical and Bluetooth, so you can get up and running in minutes.

Soundbars are one of the most popular audio upgrades for console gamers. They deliver clear dialogue, punchy bass, and wide soundstages in a slim form factor that sits neatly beneath a TV. If you've already explored the debate between soundbars vs. speakers and decided a soundbar is right for your setup, the next step is getting it connected to your Xbox correctly. The process differs slightly depending on your soundbar's inputs and your TV's capabilities, so let's break it all down.

Connection Methods Overview

Before diving into step-by-step instructions, it helps to understand what connection options are available. The Xbox Series X and Series S do not have a dedicated audio output port — all audio passes through HDMI. This means your connection approach depends heavily on what your TV and soundbar support. Older Xbox One consoles share the same limitation, having no analog audio out.

According to Wikipedia's overview of HDMI standards, HDMI ARC (Audio Return Channel) allows a TV to send audio back down the same HDMI cable to an AV receiver or soundbar — eliminating the need for a separate audio cable between your TV and soundbar entirely. This is the cleanest and most recommended approach for modern setups.

HDMI ARC and eARC

HDMI ARC is the gold standard for connecting a soundbar to any modern console. The signal path is: Xbox → TV (via HDMI) → Soundbar (via ARC-enabled HDMI port). Your TV acts as the hub. Most TVs manufactured in the last several years include at least one HDMI ARC port, usually labeled "ARC" or "eARC" on the back panel.

eARC (Enhanced Audio Return Channel) is the newer, higher-bandwidth version. It supports lossless audio formats like Dolby TrueHD and DTS:X, which standard ARC cannot carry. If both your TV and soundbar support eARC, use it — the audio quality improvement is noticeable on premium soundbars. An eARC connection also typically enables automatic lip-sync correction.

Optical (Toslink) Connection

An optical cable, also called Toslink or S/PDIF, carries digital audio from your TV's optical output to the soundbar's optical input. While this is a reliable and widely compatible method, it has bandwidth limitations — it cannot transmit lossless surround formats like Dolby Atmos in full quality. For most gaming soundbars, however, optical delivers excellent Dolby Digital 5.1 surround sound that sounds great in practice.

Note: the Xbox itself has no optical output, so the optical cable runs from TV to soundbar, not from Xbox to soundbar directly.

Bluetooth Connection

The Xbox Series X, Series S, and Xbox One do not have built-in Bluetooth audio output. Xbox uses Bluetooth only for controllers and accessories — it cannot stream audio via Bluetooth to a soundbar natively. However, if your TV supports Bluetooth audio output, you can pair your soundbar to the TV wirelessly, with the TV receiving audio from the Xbox via HDMI.

Bluetooth audio introduces noticeable latency (typically 100–200ms), which causes audio lag during gaming and video. It is generally not recommended for gaming use unless your soundbar has a dedicated low-latency gaming mode (sometimes called "Game Mode" with aptX Low Latency codec support).

3.5mm / Analog Connection

Some soundbars include a 3.5mm auxiliary input. Your TV may have a headphone output (3.5mm) or RCA outputs that can connect to the soundbar via an adapter. This is a fallback option for older TVs or soundbars and delivers standard stereo audio. It works fine for casual gaming but does not support surround sound formats.

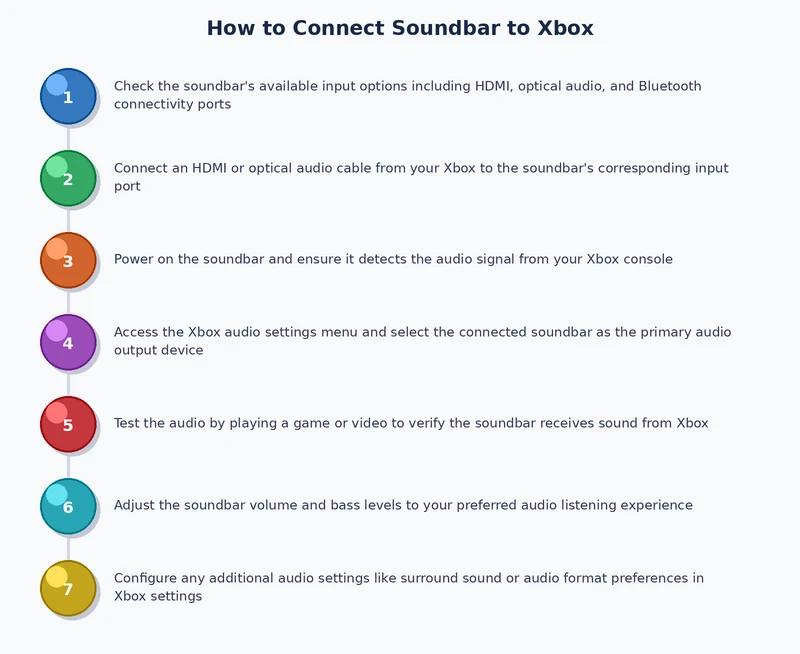

Step-by-Step: HDMI ARC Setup

This is the recommended method for connecting a soundbar to Xbox. Follow these steps for the cleanest, highest-quality audio experience. This process also mirrors how you'd connect a soundbar to a PS5, so if you game on both platforms the setup will feel familiar.

1. Identify the ARC port on your TV. Look at the HDMI ports on the back of your TV. One port will be labeled "ARC" or "eARC." This is the port your soundbar's HDMI cable must plug into.
2. Connect the Xbox to any standard HDMI input on the TV. Use the HDMI cable included with your Xbox. Plug it into a non-ARC HDMI port on the TV (e.g., HDMI 1 or HDMI 2 — whichever is not the ARC port).
3. Connect the soundbar to the TV's ARC/eARC port. Use a High Speed HDMI cable (or Ultra High Speed for eARC). Plug one end into the TV's ARC port and the other into the HDMI ARC input on your soundbar. Most soundbars label this port "ARC IN" or "TV ARC."
4. Enable CEC (Consumer Electronics Control) on your TV. This feature — often called Anynet+ (Samsung), Bravia Sync (Sony), SimpLink (LG), or EasyLink (Philips) — allows your TV to communicate with connected devices over HDMI. Enable it in your TV's settings menu.
5. Set your TV's audio output to ARC. Navigate to your TV's Sound or Audio settings and select HDMI ARC or External Speaker as the output device. Save the setting.
6. Power on all devices and test. Turn on the Xbox, TV, and soundbar. The soundbar should automatically receive audio from the Xbox via the TV.

Configuring Xbox Audio Settings

Once physically connected, fine-tune the audio output on your Xbox for the best results with your soundbar:

1. Press the Xbox button on your controller to open the guide.
2. Go to Profile & system → Settings → General → Volume & audio output.
3. Under HDMI audio, select the format that matches your soundbar's capabilities:
   • Stereo uncompressed — for basic 2.0 soundbars
   • 5.1 uncompressed — for soundbars with discrete surround channels
   • Bitstream out (Dolby Digital) — recommended for most soundbars with Dolby support
   • Bitstream out (DTS) — if your soundbar supports DTS
4. If your soundbar and TV support Dolby Atmos, enable Dolby Atmos for home theater in the same settings menu. You will need the free Dolby Access app from the Xbox Store to activate it.

Enabling ARC on Your TV

Every TV brand uses different menu names for the same HDMI ARC feature. Here are the most common:

• Samsung: Settings → Sound → Sound Output → ARC / Anynet+ (HDMI-CEC) → On
• LG: Settings → Sound → Sound Out → HDMI ARC Device / SimpLink → On
• Sony: Settings → Display & Sound → Audio Output → ARC / Bravia Sync Settings → On
• TCL / Roku TV: Settings → Audio → S/PDIF and ARC → Dolby Digital / Auto

If your TV does not show the soundbar as an output option, try power-cycling all three devices: turn off the Xbox, TV, and soundbar, then power them back on in order — TV first, then soundbar, then Xbox.

Step-by-Step: Optical Cable Setup

If your soundbar does not have an HDMI ARC input — or your TV only has one HDMI port already occupied by the Xbox — an optical connection is an excellent alternative. Here's how to set it up:

1. Locate the optical output on your TV. It's a small square port, often covered by a plastic cap. Remove the cap before inserting the cable.
2. Connect one end of the Toslink cable to the TV's optical output. The connector is keyed — it only fits one way. You'll feel it click into place.
3. Connect the other end to the soundbar's optical input. Again, remove any dust caps first.
4. Set the TV audio output to Optical/PCM. In your TV's sound settings, select "Optical" or "Digital Audio Out" as the output, and set the format to Dolby Digital (for surround) or PCM (for stereo).
5. Select Optical as the input on your soundbar. Use your soundbar's remote or input button to switch to the Optical input. Most soundbars auto-detect the signal.
6. On your Xbox, go to Settings → General → Volume & audio output and set HDMI audio to Bitstream out (Dolby Digital) to match the TV's optical output capability.

Optical cables are inexpensive and widely available. A standard 1.5-meter cable works for most TV-to-soundbar distances, and you don't need an expensive premium cable — the digital signal is either perfect or it isn't.

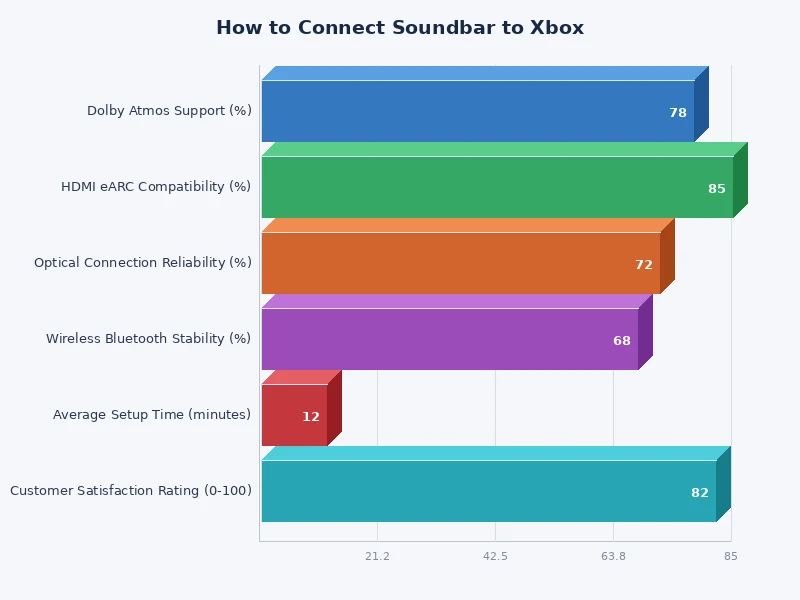

Comparing Connection Types

Not sure which method is right for your setup? Use this comparison to choose the best option based on your hardware and priorities:

Troubleshooting Common Issues

Even with the right cables and settings, audio problems can occur. Here are the most common issues and how to fix them.

No Sound After Connecting

• Check the soundbar input selector. Many soundbars have multiple inputs (HDMI ARC, Optical, Bluetooth). Make sure you've selected the correct one manually if auto-detection failed.
• Verify CEC/ARC is enabled on the TV. Go into your TV's sound settings and confirm HDMI ARC or the equivalent (Anynet+, Bravia Sync, etc.) is switched on.
• Try a different HDMI cable. A faulty or low-quality cable can cause intermittent or complete loss of ARC signal. Use a certified High Speed HDMI cable.
• Power cycle all devices. Unplug the Xbox, TV, and soundbar from power for 60 seconds. Plug back in, starting with the TV, then soundbar, then Xbox.
• Check the Xbox audio output setting. Navigate to Settings → General → Volume & audio output and confirm the HDMI audio format is not set to a format your soundbar doesn't support.

Audio Delay or Lip Sync Problems

Audio lag is one of the most frustrating soundbar issues, especially during gaming when gunshot and footstep timing matters.

• Enable Game Mode on your soundbar. Most modern soundbars include a Game Mode that minimizes internal audio processing, reducing latency significantly — often from 80ms down to under 20ms.
• Enable Game Mode on your TV. Your TV's picture processing (motion smoothing, HDR tone mapping) adds display latency. Game Mode reduces this to minimum, keeping audio and video in sync.
• Use the soundbar's lip sync adjustment. Many soundbars have a dedicated audio delay slider in their settings menu. You can manually add a delay to the audio to match a slow TV.
• Switch from Bluetooth to a wired connection. If you're currently using Bluetooth audio, switching to HDMI ARC or optical will dramatically reduce delay.
• Prefer eARC over ARC. eARC includes automatic lip sync (AV sync) correction as part of the specification, which handles this problem automatically when supported by both devices.

Best Xbox Audio Settings for Soundbars

Once your soundbar is physically connected and producing sound, dialing in the Xbox audio settings makes a significant difference in overall quality. The ideal configuration depends on what your soundbar supports, but here are recommended starting points.

For a full walkthrough of optimizing your gaming audio setup and for additional context on how sound hardware fits into a broader workspace, our guide on soundbar vs. speakers covers the technical and practical tradeoffs in depth.

For HDMI ARC (Standard) Connections

• Xbox Audio Format: Bitstream out — Dolby Digital
• Bitstream format: Dolby Digital (not DTS, unless your soundbar explicitly states DTS support)
• TV Audio Output: Dolby Digital / Auto
• Soundbar Mode: Movie or Cinema for cutscenes, Game Mode during active play

For HDMI eARC Connections

• Xbox Audio Format: Bitstream out — Dolby Digital, with Dolby Atmos for home theater enabled
• Install the Dolby Access app (free on Xbox Store) to activate Atmos passthrough
• TV eARC passthrough: Enable in TV's sound settings (usually labeled "eARC" or "Pass Through")
• Soundbar Mode: Select Dolby Atmos mode if available

For Optical Connections

• Xbox Audio Format: Bitstream out — Dolby Digital
• TV Digital Audio Out format: Dolby Digital (not PCM, unless soundbar only supports PCM)
• Note: Optical cannot carry Dolby Atmos or DTS:X object-based audio — you'll receive standard Dolby Digital 5.1 at most

For a more complete picture of how soundbars integrate with consoles across different platforms, you might also find it useful to compare the setup process when you connect a soundbar to a PS5 — the audio settings menus are different but the cable routing logic is nearly identical.

Ready to put all of this into practice? Our dedicated service page on how to connect soundbar to Xbox includes compatibility checklists, recommended cables, and model-specific tips for popular soundbar brands like Sony, Samsung, Sonos, and Bose.
