How to Connect Soundbar to Xbox Series X

Getting great audio from your Xbox Series X is easier than you might think. Whether you just unboxed a new soundbar or you're upgrading from your TV's built-in speakers, knowing how to connect soundbar to Xbox Series X can completely transform your gaming experience. The Xbox Series X supports several audio output methods, and choosing the right one depends on your soundbar's inputs and your room setup. This guide walks you through every connection option — HDMI ARC, optical, and Bluetooth — so you can enjoy rich, immersive sound in minutes. If you've ever connected a soundbar to another console, you'll find the process here very similar to connecting a soundbar to a PS5.

Connection Methods Overview

The Xbox Series X does not have a dedicated audio output port. Unlike older consoles, it routes all audio through its HDMI 2.1 port. This means your connection strategy depends heavily on whether your TV acts as the middleman, or whether you connect the soundbar directly in the signal chain. There are three practical ways to connect a soundbar to an Xbox Series X:

• HDMI ARC / eARC — Best quality, passes Dolby Atmos and DTS:X
• Optical (Toslink) — Good for soundbars without HDMI ARC support
• Bluetooth — Wireless convenience with some latency trade-offs

Each method has its strengths. HDMI ARC is the gold standard for most modern setups. Optical is a reliable fallback. Bluetooth works in a pinch but isn't ideal for competitive gaming. Understanding these differences upfront will save you a lot of trial and error. For reference, HDMI ARC (Audio Return Channel) was introduced in HDMI 1.4 and allows a TV to send audio back down an HDMI cable to a receiver or soundbar — eliminating the need for a separate audio cable.

HDMI ARC and eARC

HDMI ARC (Audio Return Channel) and its newer sibling eARC (Enhanced Audio Return Channel) let your TV pass audio signals back to the soundbar through the same HDMI cable that carries video. Your Xbox Series X connects to the TV via HDMI, and your TV sends the audio back to the soundbar over HDMI ARC. eARC supports lossless audio formats like Dolby TrueHD and DTS-HD Master Audio — formats that optical simply cannot carry.

Optical (Toslink) Connection

Optical audio (also called Toslink or S/PDIF) uses a fiber-optic cable to transmit digital audio. Since the Xbox Series X has no optical output, the optical cable must run from your TV's optical out port to the soundbar's optical in. This is a bit roundabout, but it works well if your soundbar lacks an HDMI ARC port. The downside is that optical is limited to stereo PCM or Dolby Digital 5.1 — it cannot carry Dolby Atmos object-based audio.

Bluetooth Connection

The Xbox Series X does not natively output audio via Bluetooth to soundbars. However, if your TV supports Bluetooth audio output, you can pair the soundbar to the TV wirelessly, and the TV will receive the Xbox's audio over HDMI and re-broadcast it via Bluetooth. Some soundbars also support Bluetooth input directly from mobile devices for music playback, but for console gaming you'll still need the TV as the relay. If you run into Bluetooth pairing issues, our guide on fixing soundbar Bluetooth not connecting covers the most common causes and solutions.

How to Connect via HDMI ARC (Recommended)

HDMI ARC is the preferred method for connecting a soundbar to your Xbox Series X. The audio signal path is: Xbox Series X → TV (HDMI) → Soundbar (HDMI ARC). You'll get the best possible audio quality this way, including support for Dolby Atmos if your soundbar and TV both support it.

What You Need

• Xbox Series X console
• A TV with at least one HDMI ARC or eARC port (usually labeled on the port itself)
• A soundbar with an HDMI ARC input
• Two HDMI cables (one for Xbox → TV, one for TV ARC → soundbar)
• Premium High Speed HDMI cables recommended for eARC setups

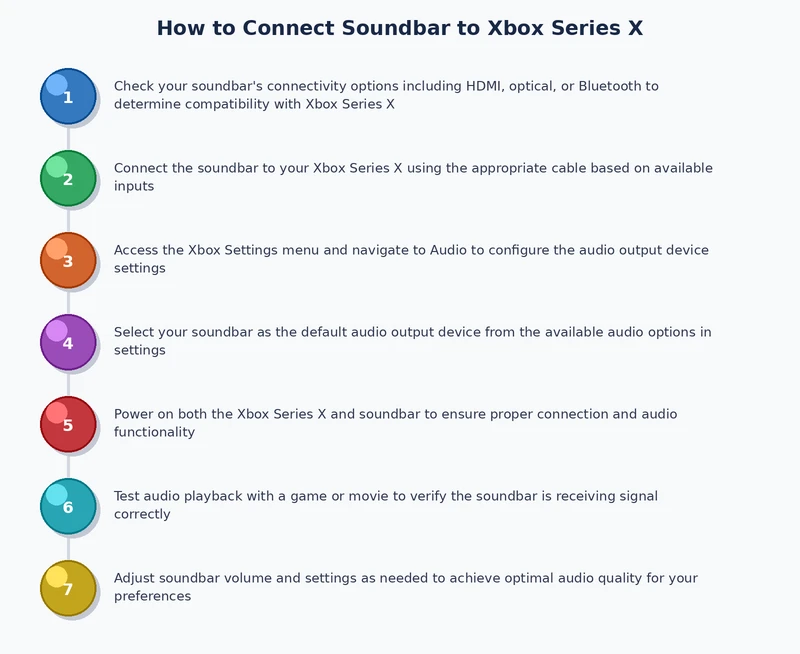

Step-by-Step Instructions

1. Connect Xbox to TV: Plug your HDMI cable from the Xbox Series X HDMI OUT port into any standard HDMI input on your TV.
2. Connect TV to Soundbar: Run a second HDMI cable from your TV's HDMI ARC port (often labeled "ARC" or "eARC") to the HDMI ARC input on your soundbar.
3. Enable ARC on your TV: Go into your TV's settings menu and enable HDMI ARC or CEC (Consumer Electronics Control). This setting is usually under "Sound," "External Inputs," or "HDMI Settings" depending on your TV brand.
4. Set TV audio output: Navigate to your TV's audio settings and select the HDMI ARC output as the active sound output device.
5. Switch soundbar to HDMI ARC input: Use your soundbar's input selector button or remote to switch to the HDMI/ARC input.
6. Configure Xbox audio: On your Xbox, go to Settings → General → Volume & Audio Output. Under HDMI audio, select "Bitstream out" and choose Dolby Atmos for Home Theater if supported.
7. Test your setup: Launch a game or stream a movie. Audio should now play through the soundbar. Adjust your TV's volume to control the soundbar level via CEC.

Pro tip: If you hear no audio after setup, toggle your TV's CEC setting off and back on. Some TVs require a power cycle after enabling ARC for the first time.

How to Connect via Optical Cable

If your soundbar doesn't have an HDMI ARC port, optical is your next best option. The signal still travels Xbox → TV → Soundbar, but the TV-to-soundbar leg uses a Toslink cable instead of HDMI.

Setting Up the Optical Connection

1. Connect the Xbox Series X to your TV via HDMI as normal.
2. Run a Toslink optical cable from your TV's optical audio output (usually labeled "OPTICAL OUT" or "DIGITAL AUDIO OUT") to the optical input on your soundbar.
3. Remove the protective caps from both ends of the Toslink cable before inserting. The connector is keyed, so it only fits one way.
4. Switch your soundbar's input to the optical source using its remote or input button.

Configuring Xbox Audio Settings

1. On your Xbox Series X, press the Xbox button and go to Settings → General → Volume & Audio Output.
2. Under "HDMI audio," select "Bitstream out."
3. Set the bitstream format to "Dolby Digital" — optical cannot carry Atmos, so avoid selecting Dolby Atmos here as it may cause audio dropouts.
4. On your TV, go to sound settings and set the audio output to "Optical" or "Digital Audio Out."
5. Confirm the TV is set to output PCM or Dolby Digital (not Dolby Atmos or DTS-HD) to stay within optical's bandwidth limits.

How to Connect via Bluetooth

Bluetooth is the most flexible option if you want a cable-free soundbar setup, though it requires your TV to support Bluetooth audio output — which many modern smart TVs do.

Pairing Your Soundbar

1. Put your soundbar into Bluetooth pairing mode. Most soundbars have a dedicated Bluetooth button — hold it until the indicator light blinks rapidly.
2. On your TV, open Settings → Sound → Sound Output (exact path varies by brand) and look for a Bluetooth speaker or audio device option.
3. Select "Bluetooth Speaker List" or similar, and choose your soundbar from the discovered devices.
4. Once paired, your TV will automatically route all audio — including Xbox Series X game audio — through the Bluetooth soundbar.
5. Your Xbox Series X audio settings don't need to change for Bluetooth; the TV handles the re-transmission.

Bluetooth Limitations to Know

Bluetooth audio introduces latency — typically 100 to 300 milliseconds — which can cause a noticeable lip-sync issue during cutscenes and a slight input delay feel during competitive gameplay. Some soundbars have a "Game Mode" that reduces processing delay; enabling it can help. For casual gaming and movie watching, Bluetooth is perfectly acceptable. For competitive titles like first-person shooters, HDMI ARC or optical will serve you better.

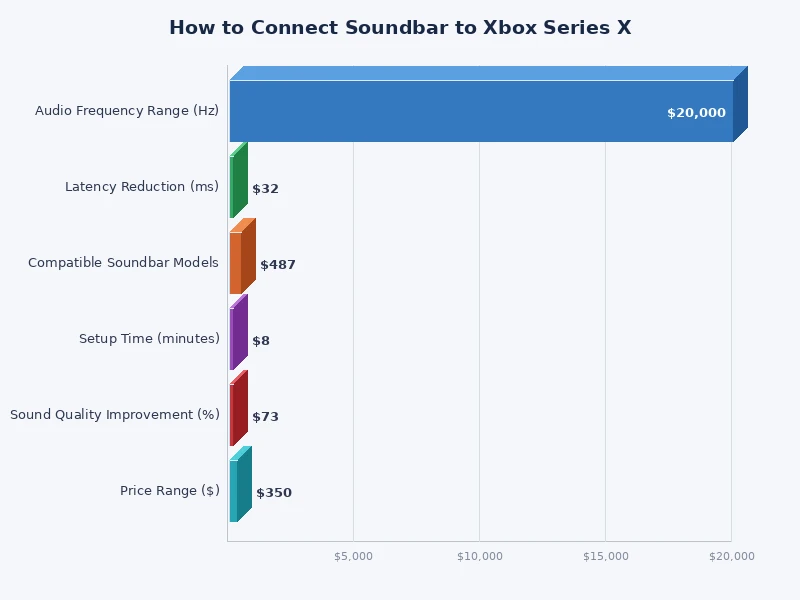

Connection Method Comparison

Not sure which connection to use? The table below breaks down the key differences so you can make the right call for your setup. This information also applies broadly when you need to connect a soundbar to an Xbox of any generation.

Optimizing Xbox Series X Audio Settings

Once your soundbar is physically connected, taking a few minutes to dial in the Xbox audio settings makes a significant difference. The console offers granular control over audio formats, speaker layout, and volume normalization. You can reach all of these options at Settings → General → Volume & Audio Output.

Enabling Dolby Atmos

If you're using HDMI eARC and your soundbar supports Dolby Atmos (look for the Atmos logo on the packaging or spec sheet), here's how to enable it:

1. Go to Settings → General → Volume & Audio Output.
2. Under "HDMI audio," select "Bitstream out."
3. Set "Bitstream format" to "Dolby Atmos for Home Theater."
4. Download the free Dolby Access app from the Microsoft Store. This activates the Dolby Atmos license on your console.
5. Restart your Xbox and launch a game or app that supports Dolby Atmos content.

Dolby Atmos-enabled soundbars use upward-firing drivers or virtual height processing to create a three-dimensional soundstage — making overhead audio effects like rain, helicopters, and explosions feel genuinely spatial. Once you experience it for gaming, it's hard to go back. Once you've nailed the connection and format settings, it's worth checking out our guide on how to set up surround sound with a soundbar to squeeze every bit of performance from your audio system.

DTS:X Settings

Some soundbars use DTS:X instead of Dolby Atmos. The setup process is similar:

1. In Xbox audio settings, set the bitstream format to "DTS" instead of Dolby.
2. Download the DTS Sound Unbound app from the Microsoft Store to activate the DTS:X license.
3. Make sure your soundbar is set to DTS input mode — some soundbars auto-detect, others require manual selection.

Troubleshooting Common Issues

Even with the right cables and correct settings, audio problems do come up. Here are the most frequent issues and how to fix them:

No Sound Through Soundbar

• Verify the soundbar is set to the correct input (HDMI ARC, Optical, or Bluetooth).
• Check that CEC is enabled on your TV — without CEC, HDMI ARC won't pass audio.
• Try a different HDMI cable, especially if using eARC. Standard High Speed HDMI cables may not carry eARC bandwidth reliably.
• Power cycle all devices: turn off the Xbox, TV, and soundbar, then turn them back on in order (TV first, then soundbar, then Xbox).

Audio Out of Sync (Lip Sync Issues)

• Enable "Game Mode" on your TV to reduce processing latency.
• Enable any "Game Mode" or "Direct Mode" on your soundbar to bypass internal audio processing.
• If using Bluetooth, switch to HDMI ARC or optical for a lower-latency connection.
• Check if your TV has a manual "Audio Delay" adjustment in the sound settings — sometimes a small positive offset corrects sync issues introduced by the soundbar's processing.

Distorted or No Surround Sound

• If using optical, make sure the Xbox bitstream format is set to Dolby Digital, not Dolby Atmos — optical cannot carry Atmos and the mismatch causes audio dropouts or no sound.
• Confirm your soundbar actually supports the audio format you've selected. A stereo-only soundbar will downmix 5.1 content, which is expected behavior — not a malfunction.
• Update your soundbar's firmware if you recently bought it. Manufacturers regularly release fixes for format compatibility bugs. Our guide on how to update soundbar firmware walks through the process for most major brands.

Soundbar Volume Won't Respond to Xbox Controller

• This requires CEC to be active and correctly configured on both the TV and the soundbar.
• Some soundbars have CEC passthrough disabled by default — check the soundbar's settings menu or manual.
• If CEC is unreliable on your TV, use the soundbar's own remote or a universal remote programmed for the soundbar.
