How to Optimize Webcam Settings in OBS Studio for Better Video

Getting your webcam settings in OBS Studio dialed in correctly is the difference between looking like a professional streamer and looking like you're broadcasting from a potato. OBS Studio is one of the most powerful free tools available for streamers, podcasters, and video creators — but its flexibility also means there are dozens of settings that can trip you up. Whether you're going live on Twitch, recording YouTube tutorials, or running virtual meetings, this guide walks you through every key adjustment to make your webcam look its absolute best.

If you've already spent time on the basics — like learning how to set up a webcam for recording YouTube videos — this guide takes things further by focusing specifically on OBS's internal controls and how to pair them with your camera hardware for maximum quality.

Adding Your Webcam as a Source in OBS

Before you can optimize anything, you need to correctly add your webcam to an OBS scene. Open OBS, click the + button in the Sources panel, and select Video Capture Device. Give it a descriptive name — something like "Main Webcam" — and click OK. The properties window that opens next is where most of your fundamental webcam settings in OBS Studio live.

Choosing the Right Video Capture Device Settings

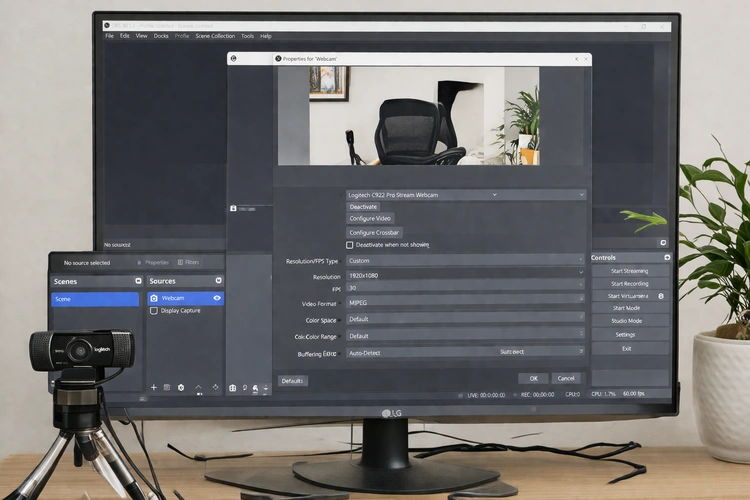

In the Video Capture Device properties, you'll see a Device dropdown. Select your webcam from the list. Avoid using "Use Default" settings if you can — manually specifying values gives you far more control and prevents OBS from making poor automatic choices when your system restarts or your USB device re-enumerates.

Under the device dropdown, set the following:

• Resolution/FPS Type: Set this to "Custom" — never leave it on "Device Default"
• Resolution: Choose the highest resolution your webcam supports natively (1920×1080 for most modern webcams)
• FPS Type: Set to "Match Output FPS" if you want consistency, or manually set it to 30 or 60
• Video Format: This matters more than most people realize — covered in detail below
• Color Space: Set to "Default" unless you have a specific reason to change it
• Color Range: Set to "Partial" for most webcams — "Full" can cause washed-out blacks on some hardware

Setting Resolution and Frame Rate

Your webcam's native resolution and the resolution you set in OBS need to match — or at least be proportional. Capturing at 1080p then outputting at 720p is perfectly fine (OBS downscales cleanly), but capturing at 720p and trying to output 1080p will only add blur. Always capture at the highest quality your webcam supports.

Frame rate choice depends on your content type. For gaming streams and fast-paced content, 60fps makes motion look dramatically smoother. For talking-head recordings, podcasts, and tutorials, 30fps is generally sufficient and reduces CPU and bitrate load. See our comparison of webcam 30fps vs 60fps and what frame rate really means for video quality if you're unsure which to choose.

Configuring OBS Video Output Settings

The Video Capture Device properties only control how OBS captures the webcam feed. The global video output settings — found under Settings → Video — determine what OBS actually does with that feed before encoding. Getting these right is just as important as the capture settings.

Canvas vs Output Resolution

OBS uses two distinct resolution concepts:

• Base (Canvas) Resolution: The virtual canvas where you arrange all your scenes and sources. Set this to match your monitor resolution, typically 1920×1080.
• Output (Scaled) Resolution: The resolution of the final stream or recording. This can be lower than canvas to reduce bitrate requirements.

For most streamers with a 1080p webcam, a canvas of 1920×1080 with an output of 1280×720 is a solid starting point. If your internet upload can support it — and you're recording locally rather than streaming — keeping both at 1920×1080 gives you the highest quality result.

Downscale Filter Selection

When OBS scales down your canvas to the output resolution, the algorithm it uses matters. Under Settings → Video → Downscale Filter, you have several options:

• Bicubic: Good default for most cases, slightly soft but fast
• Lanczos: Sharpest result, best for text and detail-heavy scenes, slightly more CPU-intensive
• Bilinear: Fastest but blurriest — avoid unless you have a very weak CPU
• Area: Ideal when downscaling by exactly 50% (e.g., 1080p → 540p)

For webcam-centric content where your face needs to look sharp, Lanczos is the recommended choice. The CPU overhead is minimal on any modern machine.

Adjusting Color, Exposure, and White Balance

One of the biggest quality improvements you can make has nothing to do with OBS itself — it's getting your webcam's exposure and white balance right at the hardware level before OBS even touches the signal. Poor auto-exposure causes your face to flicker as you move, and incorrect white balance makes your skin look green under fluorescent lighting or orange under incandescent bulbs.

Manual vs Auto Controls

Most webcams expose camera controls through their driver software or Windows/macOS camera settings. In OBS, you can access these directly by clicking Configure Virtual Camera in the Video Capture Device properties, or by right-clicking the webcam preview and selecting Properties → Video Settings. The exact label varies by webcam brand.

For a deeper look at managing these hardware-level controls, our guide on how to adjust webcam exposure and white balance covers manual vs auto modes in detail. The short version: disable auto-exposure and auto-white-balance when you're in a controlled lighting environment, and manually lock in values that look correct. This stops the camera from "thinking" and constantly adjusting, which translates to a cleaner, more stable OBS feed.

Using OBS Filters for Color Correction

Even after getting your hardware settings right, OBS's built-in filters let you fine-tune the image further. Right-click your webcam source and select Filters to access the filter stack. The most useful color-related filters are:

• Color Correction: Adjust brightness, contrast, gamma, saturation, and hue. Start with small adjustments — boosting contrast by 0.05 and saturation by 0.1 often makes webcam footage look more vivid without going overboard.
• Sharpen: Many webcams apply their own sharpening, which can look artificial. If your image looks over-processed, avoid stacking more OBS sharpening. If it looks soft, a Sharpen value of 0.06–0.12 adds crispness.
• Gain: Amplifies the video signal. Use sparingly — too much introduces noise in dark areas.

Choosing the Right Compression Format

The video format your webcam sends to OBS has a significant impact on image quality, especially at high resolutions and frame rates. In the Video Capture Device properties, the Video Format dropdown typically shows options like MJPEG and YUY2 (or NV12, I420).

This choice is more nuanced than it appears. MJPEG compresses each frame as a JPEG — it uses less USB bandwidth, allowing higher resolutions and frame rates, but introduces compression artifacts that are especially visible in fine detail and gradients. YUY2 (uncompressed) delivers a cleaner signal but demands much more USB bandwidth, which can limit you to 720p at 30fps on some webcams and USB controllers.

For a thorough breakdown of how these formats compare, see our article on webcam H.264 vs MJPEG compression formats. The practical recommendation for most setups: use MJPEG at 1080p 30fps as your default OBS capture format. It balances quality and USB bandwidth well. If your webcam supports H.264 hardware encoding, that can be even better — it offloads compression to the camera's chip and delivers clean USB transfer with minimal artifacts.

Advanced OBS Filters for Webcam Enhancement

Once your baseline settings are solid, OBS's advanced filter options let you elevate your webcam feed to a level that rivals dedicated camera setups. These are the tools professional streamers and content creators use to stand out.

Applying a LUT for Professional Color Grading

A LUT (Look-Up Table) is a color grading preset that transforms the colors in your webcam feed to a specific cinematic or stylized look. OBS supports .cube LUT files natively through the Apply LUT filter. Free LUT packs designed for video are widely available from cinematographers and colorists.

To apply a LUT in OBS: right-click your webcam source → Filters → Add → Apply LUT → browse to your .cube file. The Amount slider controls blend strength. For natural-looking webcam footage, 50–70% usually looks more realistic than 100%, which can make the effect feel heavy-handed.

Important: LUTs designed for log-format camera footage (like S-Log) will look wrong on standard webcam output. Look specifically for LUTs labeled "Rec.709" or "Standard" when working with webcam feeds in OBS.

Chroma Key and Virtual Background

OBS's Chroma Key filter removes a solid-colored background from your webcam feed — traditionally green, but blue and even custom colors work. For clean chroma key results, you need consistent, even lighting on your backdrop with no shadows, and at least 1–2 feet of distance between yourself and the screen to avoid color spill.

OBS also offers a Background Removal (Portrait Segmentation) plugin through community plugins like obs-backgroundremoval, which uses AI to cut out your background without a green screen. This approach has improved dramatically and works well in controlled lighting environments, though it still struggles with fine details like hair and glasses frames compared to a physical green screen.

If you're using OBS's virtual camera output for video calls, our guide on how to use OBS Virtual Camera for video calls and streaming covers how to send your filtered, optimized webcam feed to Zoom, Teams, and other apps.

Troubleshooting Common Webcam Issues in OBS

Even with careful configuration, webcam issues in OBS can crop up. Here are the most common problems and their solutions.

Webcam shows black screen in OBS: This is almost always a permissions issue on Windows. Go to Settings → Privacy → Camera and make sure OBS is allowed to access the camera. On macOS, check System Preferences → Security & Privacy → Camera. Also check that no other application (like Zoom running in the background) has exclusive control of the webcam.

Webcam footage is laggy or delayed in OBS: Lag typically comes from one of three sources — USB bandwidth saturation (try a different USB port, preferably USB 3.0), a video format that's too demanding (switch from YUY2 to MJPEG), or a CPU that's overwhelmed by encoding. If you're seeing consistent delay between your audio and video in OBS, use the Sync Offset field in the Advanced Audio Settings to compensate in milliseconds. For a deeper dive, see our article on how to fix webcam lag and delay in video calls.

Webcam looks blurry after adding to OBS: Check that your source resolution matches what you set in the Video Capture Device properties. If your webcam source on the canvas is smaller than its native resolution and you've stretched it, OBS will upscale and it will look soft. Right-click the source → Transform → Edit Transform → confirm the size matches your canvas.

Wrong colors or washed-out image: Set Color Range to "Partial" in the Video Capture Device properties. "Full" range on a webcam that outputs partial range causes whites and blacks to look clipped or washed out. Also verify your monitor's color profile isn't skewing your perception — check your footage on a secondary display or export a short clip and review it.

Webcam freezes during stream: This is often a USB power management issue on Windows. Go to Device Manager → Universal Serial Bus Controllers → right-click each USB Root Hub → Properties → Power Management → uncheck "Allow the computer to turn off this device to save power." This prevents Windows from throttling the USB controller during long sessions.

For a complete, optimized OBS setup from scratch — covering not just webcam settings but also scenes, transitions, and encoding — check out our dedicated walkthrough at How to Optimize Webcam Settings in OBS. It pairs well with everything covered here.

According to Wikipedia's OBS Studio article, the software has been downloaded over 100 million times and is maintained by an open-source community, making it one of the most widely adopted streaming tools available — which means the settings and techniques covered here are relevant to an enormous range of hardware configurations and use cases.
