How to Record Screen and Webcam at the Same Time

Whether you're creating a tutorial, recording a presentation, or building a gaming channel, knowing how to record screen and webcam simultaneously is one of the most valuable skills a content creator can have. Combining your screen capture with a live webcam feed lets viewers see exactly what you're doing while also connecting with you as a presenter. The good news is that you don't need expensive studio gear or complicated software to pull it off. In this guide, we'll walk through the best methods, tools, and settings to help you record both inputs at once with clean, professional results. If you'd like a quick overview of the full workflow, visit our dedicated how to record screen and webcam service page.

What You Need Before You Start

Before diving into software, it helps to make sure your hardware and system are ready. Recording two video sources at once — your display and your webcam — puts a modest extra load on your CPU, so a few quick checks beforehand will save you headaches later.

Hardware Requirements

You don't need a high-end workstation to record screen and webcam simultaneously, but a few things do matter. A modern quad-core processor (Intel Core i5 or AMD Ryzen 5 or better) handles dual-source recording comfortably at 1080p. You'll also want at least 8 GB of RAM and a free USB port for your webcam. A USB 3.0 webcam will deliver sharper, more consistent video than an older USB 2.0 model. If your webcam feed looks blurry or washed out, consider cleaning the lens — our guide on how to clean a webcam lens for clearer video covers the safest techniques without scratching the optics.

Software Requirements

On the software side, you'll need a screen recording application that supports multiple video sources in a single output. Most modern options — OBS Studio, Loom, Camtasia, and even Windows' built-in tools — can handle this. You'll also want up-to-date webcam drivers. Outdated drivers are one of the top reasons webcams fail to appear in recording software. If your webcam isn't showing up, check out our walkthrough on how to update webcam drivers on Windows before troubleshooting anything else.

Best Software for Recording Screen and Webcam Simultaneously

There are several solid applications that let you learn how to record screen and webcam simultaneously, each with different strengths depending on your workflow, budget, and technical comfort level.

OBS Studio (Free)

OBS Studio is the gold standard for free, open-source screen and webcam recording. It uses a "scene" system where you layer multiple sources — a display capture, a webcam feed, browser overlays, and more — into a single composite output. OBS records to your local drive in formats like MKV or MP4 and offers granular control over bitrate, resolution, and encoding. The learning curve is steeper than consumer tools, but the flexibility is unmatched, and it's completely free.

Loom (Browser-Based)

Loom is a cloud-based screen recorder aimed at teams and educators. Its Chrome extension lets you start recording with a single click, capturing your screen and webcam face-cam simultaneously and uploading the video to the cloud automatically. The free tier is capped at five-minute recordings, which is fine for quick walkthroughs but limiting for longer tutorials. Loom is the fastest way to get up and running with no configuration required.

Camtasia (Premium)

TechSmith's Camtasia bundles a recorder and a full video editor into one application. The recorder captures screen and webcam as separate tracks, which you can then edit independently in the timeline — trimming, zooming, adding annotations, and more. At roughly $299 for a perpetual license, it's the priciest option here, but for educators and corporate trainers who need polished output without switching to a separate editor, the all-in-one workflow justifies the cost.

Xbox Game Bar (Built-In Windows)

Windows 10 and 11 include a built-in screen recorder via the Xbox Game Bar (Win + G). It captures the active window and system audio, but it does not natively overlay a webcam. You can work around this by using a virtual camera application to mix the feeds before passing them to Game Bar, though that adds complexity. For casual, no-install recordings of a single app window, Game Bar is convenient — but for true picture-in-picture webcam overlay, you'll want OBS or one of the other dedicated tools above.

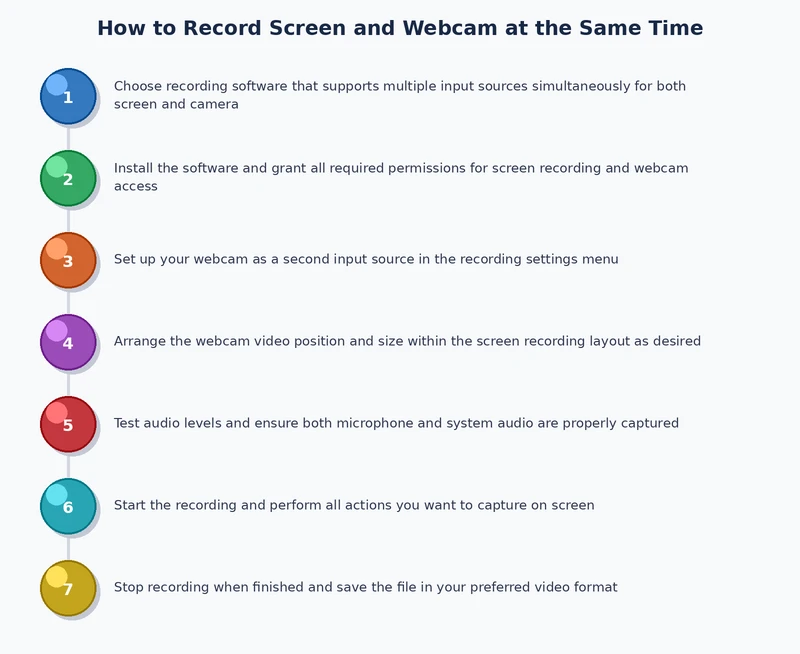

Step-by-Step: How to Record Screen and Webcam in OBS

OBS Studio is the most capable free option, and once you understand its scene-and-source model, recording screen and webcam simultaneously becomes straightforward. Here's a complete walkthrough.

Setting Up Your Scene

After installing OBS, open it and look at the bottom panel. You'll see a "Scenes" box and a "Sources" box. Scenes are like canvas layouts — you can have one for recording tutorials, another for gaming, and so on. Click the + icon under Scenes and name your new scene something like "Screen + Webcam." This keeps your recording setup separate from any streaming layouts you might create later.

Next, click + under Sources and select Display Capture. If you have multiple monitors, choose the one you want to record. OBS will add a full-screen preview of your desktop to the scene canvas.

Adding the Webcam Source

With your display capture in place, click + under Sources again and choose Video Capture Device. Name it "Webcam" and click OK. In the properties window, open the Device dropdown and select your webcam from the list. If it doesn't appear, double-check that no other application has exclusive control of the camera and that your drivers are current. Once selected, you'll see a live feed from your webcam appear in the OBS preview canvas.

Positioning the Webcam Overlay

In the canvas preview, click and drag your webcam source to the corner of your choice — bottom-right is the most common placement for tutorials. Hold Alt while dragging the edges to crop the feed to a circle or a tighter frame if you prefer. Right-click the webcam source layer and use Transform → Edit Transform to set an exact size, such as 320×240 pixels for a small face-cam, or 480×270 for a more prominent overlay.

Once your layout looks right, go to Settings → Output, set the recording path and format (MP4 is the most compatible), then click Start Recording from the main OBS window. When you're done, click Stop Recording and OBS saves the file to the folder you specified.

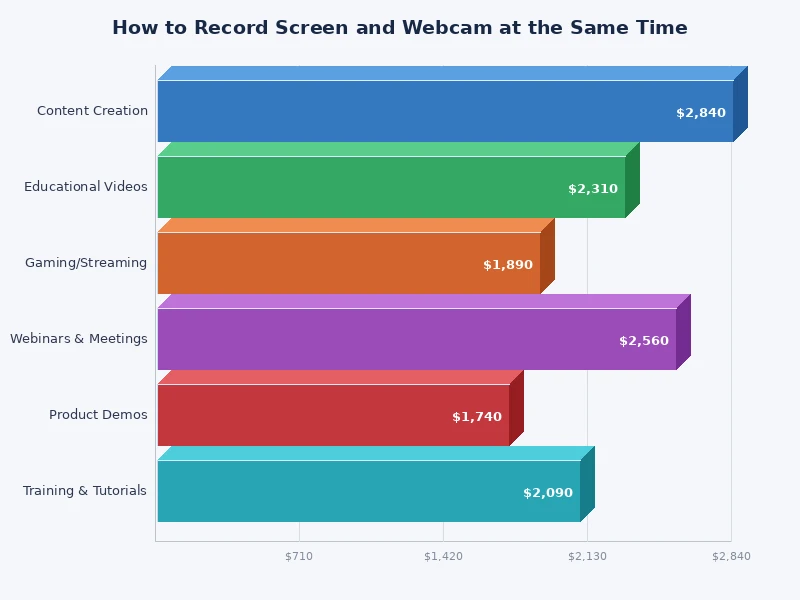

Software Comparison Table

Choosing the right tool depends on your priorities. Use the table below to compare the top options across the features that matter most for simultaneous screen and webcam recording.

Tips for Better Recording Quality

Knowing how to record screen and webcam simultaneously is only half the equation. Getting clean, watchable output requires a few extra steps around your environment and settings.

Lighting and Framing

The biggest visual upgrade you can make costs almost nothing: move a lamp or ring light to face you rather than shining from behind. Backlit faces appear as dark silhouettes on camera, which kills the personal connection that a face-cam is supposed to create. Position your main light source roughly at eye level and slightly to one side for a flattering, three-dimensional look. For framing, keep your eyes roughly in the upper third of the webcam frame — avoid cutting off the top of your head or showing too much desk below your chin. If your webcam's field of view is too wide or too narrow, our guide on how to zoom in on webcam without losing quality walks through the best software and hardware approaches.

Audio Settings

Viewers will tolerate imperfect video far longer than poor audio. Use a dedicated USB microphone or a headset mic rather than the built-in microphone on your webcam. In OBS, add a separate Audio Input Capture source and select your microphone there. In the Audio Mixer panel, mute the Desktop Audio track if you don't need to record system sounds, which prevents notification pings and background music from bleeding into your recording. Set your mic input level so peaks hit around −12 dB to −6 dB — loud enough to be clear, quiet enough to avoid clipping.

Frame Rate and Resolution

For most tutorial and presentation recordings, 1080p at 30 fps strikes the right balance between file size and clarity. If you're recording fast-moving content — gaming, animation software, or rapid mouse movements — consider bumping to 60 fps so the motion stays smooth. In OBS, set these under Settings → Video. For the webcam specifically, check that your camera actually supports the frame rate you've selected — many entry-level webcams advertise 60 fps but only deliver it at lower resolutions. The debate between 30 fps and 60 fps is explored in depth in our comparison of 30fps vs 60fps webcam: does frame rate actually matter.

Troubleshooting Common Issues

Even with the right software and settings, a few recurring problems trip up first-time dual-source recorders. Here's how to diagnose and fix the most common ones.

Webcam Not Detected

If your webcam doesn't appear in OBS's Video Capture Device list, start by checking whether another application — Zoom, Teams, or your OS camera app — has the device locked. Close every app that might be using the camera, then relaunch OBS and try again. If it still doesn't appear, open Device Manager on Windows, expand the Imaging Devices section, and look for warning icons. Right-click the webcam entry and choose Update Driver. Corrupted or outdated drivers are the most common culprit. Privacy settings can also block camera access: go to Windows Settings → Privacy & Security → Camera and make sure the toggle for desktop apps is enabled.

Lag and Sync Problems

A webcam overlay that lags behind the screen recording — or audio that drifts out of sync — usually points to one of two causes: insufficient CPU headroom, or a USB bandwidth bottleneck. For CPU issues, lower your output resolution to 720p or reduce the encoding preset to a faster (lower quality) setting in OBS. For USB bandwidth problems, move your webcam to a different USB controller — try plugging it directly into a rear motherboard port instead of a front-panel or hub port. If you're running multiple USB cameras at once, see our article on how to use two webcams at once on Windows for bandwidth-sharing strategies. Persistent lag in the webcam feed itself — independent of recording — often indicates a driver or hardware issue covered in our guide on how to fix webcam lag and stuttering.

With your scene configured, your audio dialed in, and any hardware issues resolved, you're ready to produce clean, professional recordings that combine your full screen with a live webcam feed. Whether you're walking through software, teaching a skill, or narrating a slide deck, the combination of screen context and a visible presenter makes your content significantly more engaging and easier to follow.
