How to Replace a Laser Printer Toner Cartridge

Knowing how to replace toner cartridge laser printer components is one of the most practical skills any home or office printer owner can have. Unlike inkjet printers that use liquid ink, laser printers rely on a fine powder called toner to produce crisp, professional-quality text and graphics. When the low-toner warning light flashes, many users feel uncertain about what to do next — but the replacement process is straightforward once you understand the steps. This guide walks you through everything you need to know, from identifying the right cartridge to disposing of the old one responsibly. If you are still deciding on your setup, check out our comparison of wired vs wireless printer options to find the best fit for your environment.

Understanding Toner Cartridges

Before diving into the replacement process, it helps to understand what a toner cartridge actually is and why laser printers use them. This context makes the replacement steps feel logical rather than arbitrary.

Toner vs Ink: Key Differences

Toner is a fine, dry powder composed primarily of plastic particles, carbon black, and various chemical agents. When a laser printer operates, it uses an electrostatically charged drum to attract toner powder to specific areas of the page, then fuses it permanently using heat. This is fundamentally different from inkjet printing, which sprays liquid droplets onto the page. The result is that laser-printed documents are typically sharper, faster to produce in volume, and more water-resistant. If you are curious how these technologies stack up in other contexts, our article on sublimation printer vs inkjet differences gives a broader look at printing technologies.

Types of Laser Printer Cartridges

Laser printers generally fall into two categories when it comes to cartridge design:

• All-in-one cartridges: The toner, drum unit, and developer are all combined in a single replaceable unit. Common in HP LaserJet consumer and small business models. Replacement is simple but costs more per cartridge.
• Separate drum and toner: The toner cartridge is replaced frequently while the drum unit lasts for several toner cycles. Common in Brother and many Xerox models. Slightly more complex but often more economical over time.

Color laser printers typically use four separate toner cartridges — cyan, magenta, yellow, and black (CMYK) — each of which can be replaced independently when depleted.

When to Replace Your Toner Cartridge

Replacing a cartridge at the right time saves you from print quality problems and avoids wasting the remaining toner prematurely.

Warning Signs and Alerts

Most modern laser printers communicate toner status through a combination of on-screen alerts, LED indicators, and software notifications. Here are the most common signs that a replacement is due:

• Low toner warning: A status light or on-screen message that appears when the cartridge reaches roughly 10–15% capacity.
• Faded or streaky output: Text looks lighter than usual, or horizontal bands appear across the page.
• Blank patches: Sections of the page print with no toner at all.
• Ghosting: Faint duplicate images appear offset on the page, which can also indicate a drum issue.
• Print quality errors: The printer driver reports a cartridge error even though the cartridge appears to have toner remaining.

It is worth noting that many printers allow you to continue printing after the initial low-toner warning. Removing the cartridge and gently shaking it side to side can redistribute remaining powder and extend its useful life by dozens of additional pages.

Understanding Page Yield

Page yield refers to the number of pages a cartridge can print before it runs out of toner. Manufacturers calculate this based on ISO/IEC 19752 standards, which use a 5% page coverage benchmark — meaning each page has text or images covering roughly 5% of its surface. Real-world yield varies depending on how much ink-dense content you print. Dense reports, photos, or graphics will exhaust a cartridge faster than simple text documents.

What You Need Before You Start

Replacing a toner cartridge requires very little preparation, but gathering a few items beforehand makes the process smoother and cleaner:

• Replacement toner cartridge: Ensure it matches your printer model exactly. Check the model number on the printer's label (usually on the back or underside) and cross-reference with the cartridge packaging.
• A sheet of newspaper or scrap paper: Lay it on your work surface to catch any stray toner powder.
• Disposable gloves (optional): Toner powder can stain skin and clothing. Gloves are not strictly necessary but are recommended for light-colored clothing.
• A clean, well-lit workspace: Adequate lighting helps you see the cartridge slots and locking mechanisms clearly.

Once your printer is properly set up and connected to your computer, the cartridge replacement process is the primary maintenance task you will encounter on a regular basis.

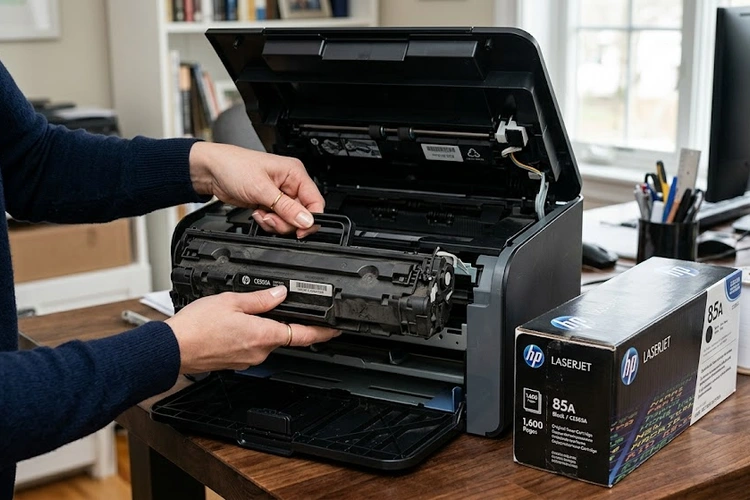

How to Replace a Toner Cartridge: Step-by-Step

The following instructions apply to the majority of personal and small business laser printers. Always consult your printer's manual for model-specific guidance, as access panels and locking mechanisms vary.

Removing the Old Cartridge

1. Power on the printer. Most printers need to be on so the cartridge carriage moves to the accessible position. Some models allow cold replacement — check your manual.
2. Open the front or top access panel. Most laser printers have a large door on the front or top that swings open. Lift or pull it until it locks in the open position.
3. Locate the toner cartridge. On monochrome printers, there is typically one cartridge. On color printers, four cartridges are arranged in a row, often color-coded for easy identification.
4. Release the cartridge. Depending on the model, you may need to press a release tab, twist the cartridge a quarter turn, or simply pull it straight out by its handle. Do not force it — if resistance is high, look for a secondary locking lever.
5. Slide the cartridge out slowly. Pull it straight toward you using the handle. Avoid tilting or inverting it, as residual toner may spill. Place it immediately on your newspaper or scrap paper.
6. Set aside for recycling. Do not place the old cartridge in regular household trash. Most manufacturers provide prepaid return labels or drop-off programs.

Installing the New Cartridge

1. Unbox the new cartridge carefully. Remove all packaging materials, including the plastic bag and any protective foam inserts.
2. Remove the sealing tape or protective strip. Nearly all new toner cartridges have an orange or red pull-tab that seals the toner opening during shipping. Pull it firmly and smoothly in the direction indicated — usually straight out along the length of the cartridge. If this strip is not removed, the cartridge will not print.
3. Shake the cartridge gently. Hold it horizontally and rock it from side to side five or six times. This distributes the toner powder evenly and ensures optimal print quality from the first page.
4. Align and insert the cartridge. Match the cartridge's guide rails or arrows with the corresponding tracks inside the printer. Slide it in until you feel or hear it click securely into place. Never force a cartridge — if it does not seat easily, check that you have the correct model.
5. Close the access panel. Press it firmly until it latches shut. If the panel does not fully close, the printer will not operate.

Running a Test Print

After installation, most printers will automatically reset the toner level indicator and run a brief initialization cycle. Once complete:

1. Print a configuration or test page from the printer's control panel (usually found under Settings → Reports → Configuration Page).
2. Inspect the output for even coverage, sharp text edges, and correct color balance on color printers.
3. If quality is poor on the first page, print one or two additional pages — the first few sheets sometimes show slightly uneven coverage as the toner distributes.

For guidance on maximizing print quality after replacement, our article on how to calibrate printer color covers the full calibration process.

Toner Cartridge Yield Comparison

Choosing between standard and high-yield cartridges is a practical decision that affects both your print costs and how often you need to perform a replacement. The table below compares typical specifications across popular laser printer brands.

High-yield cartridges typically cost more upfront but deliver a lower cost-per-page, making them the better choice for offices that print frequently. If your printing volume is low, a standard cartridge may be sufficient and avoids having toner sit in storage for extended periods, which can affect powder quality.

Tips, Tricks, and Troubleshooting

Extending Toner Life

There are several practical strategies for getting the most out of each toner cartridge before it needs replacement:

• Use draft or economy mode for internal documents and proofs. Most laser printers offer a toner-save setting that reduces the density of each print, cutting toner usage by 20–40%.
• Print in black and white whenever color is not necessary. Our guide on how to print only in black and white explains how to set this as a default.
• Avoid partial pages and test prints when possible. Even printing a small portion of a page consumes toner, so batching print jobs is more efficient than sending individual short documents.
• Store spare cartridges correctly: Keep unused cartridges in their original sealed packaging, stored horizontally in a cool, dry location away from direct sunlight. Properly stored toner can remain viable for two or more years.
• Redistribute remaining toner: When print quality starts to fade, remove the cartridge and gently shake it side to side before reinstalling. This can yield dozens of additional pages.

Common Problems After Replacement

Even when the replacement process goes smoothly, you may occasionally encounter issues. Here are the most common post-replacement problems and their solutions:

• Printer does not recognize new cartridge: Power cycle the printer by turning it off, waiting 30 seconds, and restarting. If the error persists, remove and reseat the cartridge. Verify you have the correct part number for your model.
• Toner level shows empty immediately: Some printers require a manual reset after cartridge replacement. Check your printer's control panel for a toner reset option under the maintenance or supplies menu.
• Print quality is poor despite new cartridge: Confirm that the sealing tape was fully removed. Run the printer's built-in cleaning cycle from the maintenance menu. On printers with separate drums, the drum unit may need replacement — check the page count against the drum's rated lifespan.
• Black smears or toner not fusing to paper: This is typically a fuser issue rather than a cartridge problem. The fuser unit heats the toner to bond it to the paper, and a failing fuser produces smeared, easily smudged output.
• Horizontal white lines across the page: Often caused by a dirty or worn drum. If your printer uses a separate drum unit, inspect it for scratches and replace it if necessary.

Disposing of Old Toner Cartridges

Toner cartridges contain materials that are harmful to the environment when sent to landfill. The plastic housing, residual toner powder, and metal components all benefit from proper recycling. Fortunately, disposal options are widely available:

• Manufacturer return programs: HP, Brother, Canon, and most major brands include a prepaid return envelope or shipping label inside the new cartridge box. Drop the old cartridge in the mail and the manufacturer handles recycling at no cost to you.
• Retailer drop-off: Many office supply retailers accept used cartridges for recycling and sometimes offer store credit or loyalty points in return.
• Municipal e-waste collection: Local government recycling programs often accept printer cartridges at designated drop-off points or periodic collection events.
• Third-party recycling services: Several companies specialize in cartridge recycling and accept bulk shipments from businesses.

Never empty residual toner powder into a household bin or attempt to dispose of it in drains. Toner particles are extremely fine and can pose respiratory risks if inhaled in significant quantities. For a broader look at printer selection and ongoing maintenance considerations, visit our printers resource page.
