How to Replace a Printer Drum Unit

Knowing how to replace a printer drum unit is an essential skill for anyone who relies on a laser printer at home or in the office. Unlike toner cartridges, which run out of ink, the drum unit is the component that transfers toner onto paper — and when it wears out, print quality suffers noticeably. Streaks, smears, ghosting, and faded patches are all classic signs that your drum unit needs attention. The good news is that replacing it is a straightforward process you can handle yourself in just a few minutes, without calling a technician. For a broader look at the printers we recommend, visit our printer reviews and buying guides.

Drum units are found in laser printers and LED printers. They work by receiving a static charge that attracts toner particles, which are then pressed onto the paper as it passes through the fuser. Most drum units are rated for a specific number of pages — often between 10,000 and 50,000 depending on the brand and model. When you start seeing print defects that persist after replacing the toner, the drum unit is usually the culprit. This guide walks you through everything you need to know, from identifying when it's time to replace, to step-by-step installation, to troubleshooting common issues afterward.

What Is a Printer Drum Unit?

The drum unit — also called an OPC drum (Organic Photoconductor) — is a cylindrical component coated with a light-sensitive material. During the printing process, a laser or LED array writes an invisible image onto the drum's surface by selectively discharging areas of it. Toner particles cling to the charged regions, and the drum then rolls against the paper, transferring the image. A fuser unit then melts the toner permanently into the paper fibers.

According to Wikipedia's overview of laser printing, the photoreceptor drum is one of the most critical components in the entire electrophotographic process. Without a functioning drum, no amount of fresh toner will produce a clean print.

Drum Unit vs. Toner Cartridge

Many people confuse the drum unit with the toner cartridge because on some printers — particularly certain Brother models — they are sold separately, while on others (like many HP and Samsung cartridges) the drum is built into the toner cartridge itself. When the drum is integrated, you automatically replace it every time you swap toner. When it's separate, the drum lasts through multiple toner changes before needing replacement.

If you've already mastered how to replace a laser printer toner cartridge, replacing a standalone drum unit follows a very similar process — but there are a few important differences covered below.

How Long Does a Drum Unit Last?

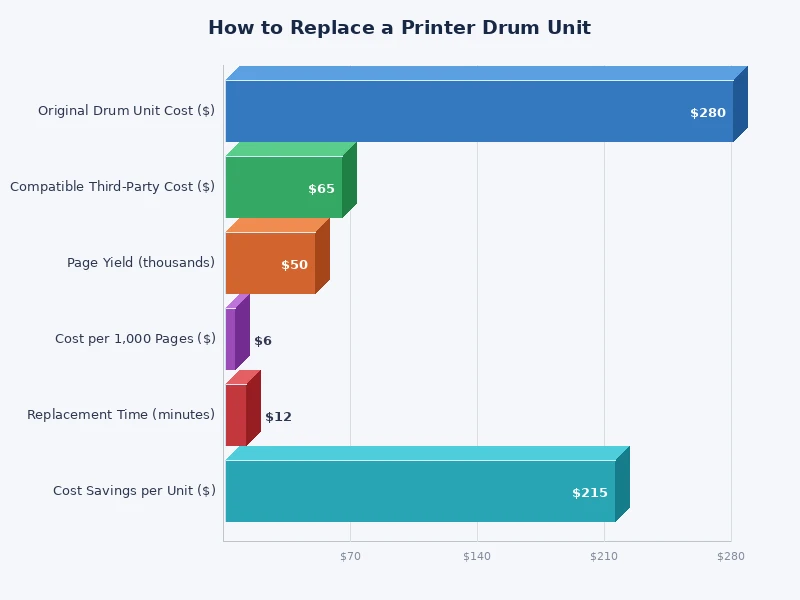

Drum unit lifespan varies significantly by brand, model, and print volume. The table below gives a general overview of typical drum unit page yields and replacement costs across common printer categories.

These figures assume standard 5% page coverage (typical for text documents). Printing graphics-heavy documents or photos will deplete the drum faster. Always check your printer's manual or manufacturer website for the exact yield specification for your model.

Signs It's Time to Replace Your Drum Unit

Catching drum wear early saves you from wasted paper, ruined documents, and the frustration of a printer that's producing worse output than it did when new. The signs are usually visual — something looks wrong on the printed page — but your printer's software may also give you advance warning.

Common Print Defects from a Worn Drum

• Repetitive spots or streaks: A mark that appears at regular intervals down the page (matching the drum's circumference) is almost always a scratch or contamination on the drum surface.
• Faded or uneven areas: If the drum's photosensitive coating has worn unevenly, some zones will no longer attract toner properly, leaving light or blank patches.
• Ghosting: A faint "shadow" of a previously printed image appearing elsewhere on the page indicates that the drum is not discharging completely between print cycles.
• Black or gray background haze: Random toner scatter across the page background, not caused by a toner leak, can point to drum sensitivity degradation.
• Smearing that doesn't wipe off: When toner isn't transferring cleanly from drum to paper, it may smear before the fuser sets it.

Before replacing the drum, rule out calibration issues. If you haven't already, learn how to calibrate printer color for accurate prints — sometimes color or density problems are a settings issue rather than hardware failure.

Printer Error and Warning Lights

Most modern laser printers track drum page count internally. When the drum nears its rated end-of-life, the printer will typically display a "Replace Drum" message on its LCD screen or status software. Some models use a blinking orange or amber light with a drum icon. Do not ignore these warnings — continuing to print past the recommended yield risks print quality deterioration and, in some cases, toner scatter inside the machine that requires a professional cleaning.

On networked printers, you can also check drum status through the printer's built-in web interface. If your printer is connected to your home network, see our guide on how to share a printer on a home network — the same IP address you use for sharing is where you'll find the device's status page.

What You Need Before You Start

Replacing a drum unit is a tool-free operation on virtually all consumer and small-business laser printers. Before you begin, gather the following:

• Replacement drum unit: Make sure it's the correct model for your specific printer. Even slight model number variations can mean an incompatible drum. Use the printer's model number (found on a label on the front or bottom of the machine) to verify compatibility.
• Clean, flat surface: Drum units are light-sensitive and should be handled away from direct sunlight or bright fluorescent light whenever possible.
• Lint-free cloth or dry tissue: Useful if you need to wipe any toner residue from the drum cavity, though you should never touch the green or blue drum surface itself.
• Plastic bag or newspaper: For disposing of the old drum without spreading toner dust.

Important: Avoid touching the drum surface (the smooth green, blue, or gray cylinder inside the unit) with bare hands. Skin oils can permanently damage the photosensitive coating and create print defects on the very drum you just installed.

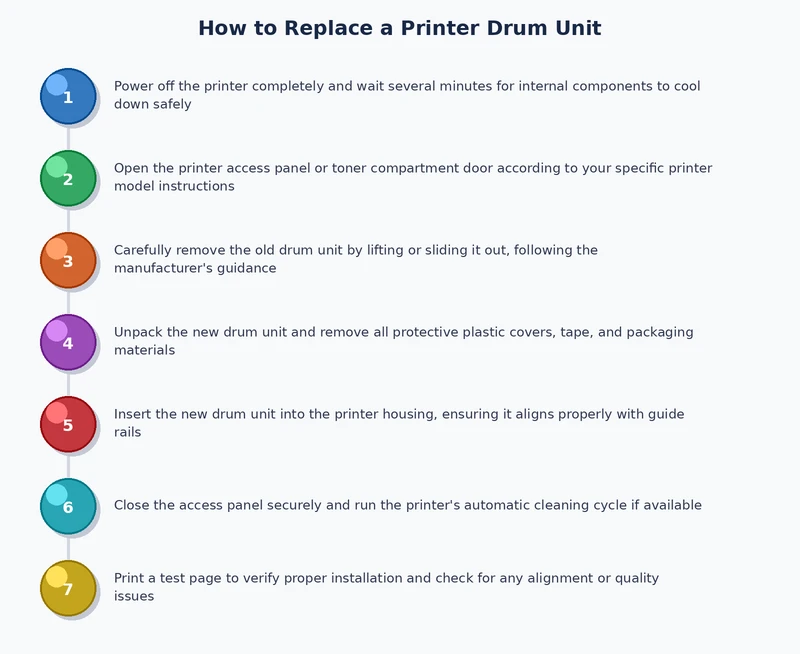

How to Replace a Printer Drum Unit: Step-by-Step

The exact procedure varies slightly between brands and models, but the core process for replacing a printer drum unit is consistent across most laser printers. The steps below cover the general method applicable to the majority of standalone drum units (Brother, Canon, Lexmark, and similar designs).

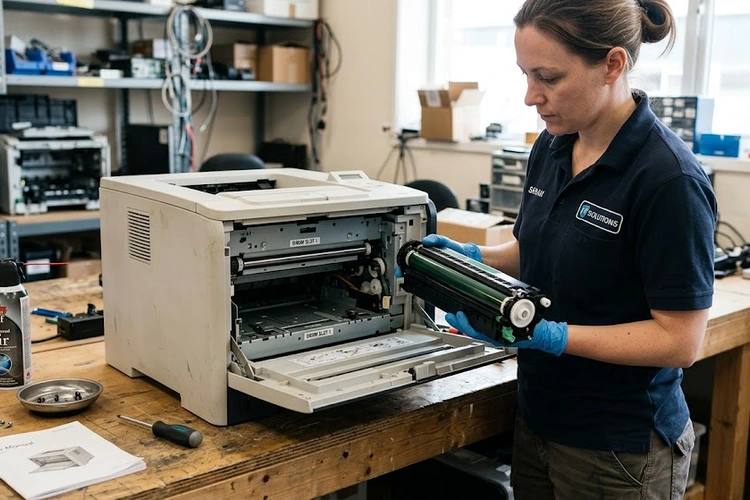

Step 1: Remove the Old Drum Unit

1. Power off the printer and wait about a minute for the fuser to cool. While drum replacement doesn't require touching the fuser, it's good practice and prevents accidental contact with hot components.
2. Open the front or top cover of the printer. This is typically a large panel that swings down or lifts up, giving full access to the toner and drum assembly.
3. Slide out the toner cartridge and drum unit assembly. On most Brother models, the toner sits inside the drum unit as a combined assembly that slides out as one piece on a horizontal rail. Pull the entire assembly straight out toward you.
4. Separate the toner from the drum. Press the release lever or button (usually green or blue, located on the side of the drum unit) and lift the toner cartridge out. Set the toner aside — you'll reuse it with the new drum unless it's also depleted.
5. Place the old drum in a bag for disposal. Many manufacturers offer drum recycling programs; check their website for a return envelope or drop-off option.

Step 2: Install the New Drum Unit

1. Unbox the new drum unit and remove all protective packaging. Most drums ship with an orange or red protective cover over the drum surface and a pull-tab seal — remove these before installation.
2. Keep the drum out of direct light. Minimize the time it spends exposed to room light. Work quickly and avoid fluorescent or direct sunlight.
3. Insert the toner cartridge into the new drum unit. Slide it down until you hear or feel a firm click, indicating the lock tab has engaged.
4. Slide the drum and toner assembly back into the printer. It should glide in smoothly along the guide rails and seat firmly at the back. Do not force it — if there's resistance, check that the drum is oriented correctly (usually there's an arrow or color-coded guide).
5. Close the front or top cover completely. Most printers won't power on or print until the cover is fully latched.

Step 3: Reset the Drum Counter

This step is often overlooked, but it's critical. Your printer's internal drum counter tracks page count to trigger replacement warnings. If you don't reset it after installing a new drum, the warning message will persist even though the drum is brand new — and the printer may eventually refuse to print.

The reset procedure varies by brand:

• Brother: With the front cover open, hold the "OK" or "Go" button for several seconds until the LCD displays "Accepted" or the drum icon resets. Some models require pressing "Cancel" then navigating to a Machine Info or Settings menu.
• Canon imageClass: On many models, the counter resets automatically when a new OEM drum is installed. For third-party drums, navigate to Menu → Adjustment/Maintenance → Special Processing → Drum Unit Reset.
• Lexmark: From the Settings menu, select Device → Maintenance → Configuration Menu → Drum Maintenance → Drum Counter Reset → confirm.
• Generic/other brands: Consult the printer manual or search the manufacturer's support site for "[your model] drum counter reset."

After resetting, power cycle the printer. Print a test page to confirm the warning is cleared and that output quality has improved.

Drum Replacement by Printer Brand

While the general process above covers most printers, there are brand-specific nuances worth knowing before you open your machine.

Brother HL and MFC series are among the most common printers with a separate drum unit. The drum assembly is color-coded (typically blue levers) and the toner cartridge clicks into it. Brother's drums are often rated at around 12,000 pages for standard models and up to 30,000 for high-yield variants. Brother makes it particularly easy by including step-by-step instructions printed directly on the drum unit packaging.

Canon imageClass models also use a standalone drum, often called a "drum unit" or "imaging unit." Canon's design typically involves a green-handled drum that slides in from the front. Some Canon models alert you via a "Replace Drum" message that appears only after a set number of pages post-warning — meaning you have a grace period before print quality degrades seriously.

HP LaserJet printers mostly use an all-in-one toner/drum cartridge. Replacing the toner automatically replaces the drum. This makes for simpler maintenance but higher per-cartridge costs. HP's newer cartridge designs include a "smart chip" that communicates remaining life to the printer software.

Lexmark and Xerox enterprise-class printers often have the longest-lived drums (up to 60,000 pages) and the most involved reset procedures. If you've recently set up a new printer on your system, check our guide on how to set up a printer on Windows 11 — the same device management panel where you added the printer is where you'll find the Lexmark status utility.

Troubleshooting After Replacement

Most drum replacements go smoothly, but if print quality doesn't improve after the swap, work through the following checks before assuming the new drum is defective.

Still seeing streaks or spots? Confirm you removed all protective films and pull-tabs from the new drum. A single overlooked orange tab left on the drum surface will cause streaks across every page. Also verify the toner cartridge itself isn't depleted or faulty — swap in a fresh toner if available.

"Replace Drum" message won't clear? The drum counter was not reset correctly. Retry the reset procedure for your specific model. If the printer uses a smart chip on the drum and you installed a third-party unit, the chip may not communicate with the printer — this is a known limitation of some off-brand drums.

New drum causing paper jams? The drum unit may not be fully seated. Open the cover, slide the assembly out, and reinsert it firmly. Also check that the drum's side guides are properly aligned with the rails inside the printer cavity.

Faint overall print after replacement? If you've also recently replaced the toner and output is faint, the issue may be density settings or a worn fuser rather than the drum. Try printing a configuration page from the printer's menu to check whether the machine itself diagnoses any additional component issues.

Toner smearing on the page? This is typically a fuser issue rather than a drum issue, but if it started immediately after drum installation, double-check that the drum is not misaligned, which can disrupt the transfer process before toner even reaches the fuser.
