How to Scan a Book Without Damaging the Spine

If you've ever wondered how to scan a book without wrecking its binding, you're not alone. Digitizing a paperback or hardcover is one of the trickier scanning tasks — press too hard on a flatbed scanner lid and you'll crack the spine; use the wrong settings and you'll end up with curved, unreadable text near the gutter. Whether you're archiving a family heirloom, digitizing research material, or building a personal e-library, this guide walks you through every method and best practice so your books survive the process intact. For a quick overview of the full workflow, visit our dedicated guide on how to scan a book without damaging the spine.

Why Spine Damage Happens During Scanning

Most book spines are glued, sewn, or both — and they're designed to open to a comfortable reading angle, not to lie completely flat. When you force a book fully open to 180 degrees on a flatbed scanner, you stress the adhesive that holds the signatures (bundles of pages) together. Over repeated scans, this causes pages to loosen, the cover to warp, and the spine to crack visibly. Hardcovers are slightly more forgiving than perfect-bound paperbacks, but neither is immune.

The most common mistake is pressing the scanner lid down firmly to eliminate shadows near the gutter. That pressure is exactly what causes the damage. Understanding this trade-off is the first step toward scanning books without ruining them.

Choosing the Right Scanner for Books

Not every scanner is equally suited to book digitization. Your choice of hardware is the single biggest factor in determining both image quality and how much stress you put on your book.

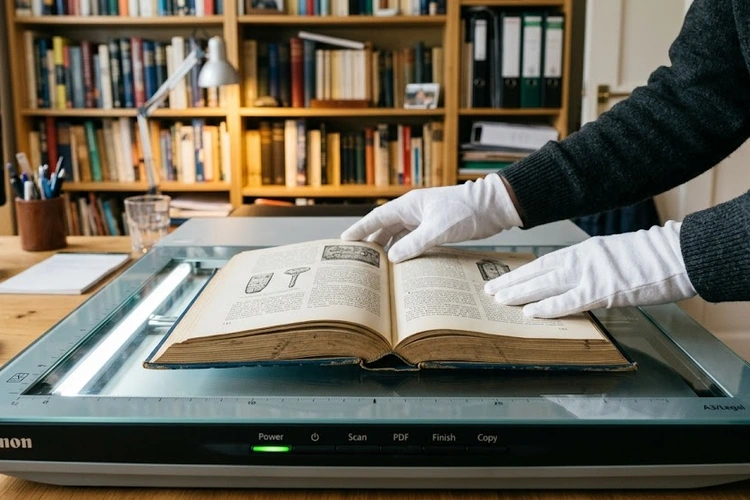

Flatbed Scanners

A standard flatbed scanner is the most common choice. Models with an A4 or letter-size glass bed (typically 216 × 297 mm) can handle most trade paperbacks and textbooks. The key advantage is high optical resolution — most flatbeds offer 1200–4800 dpi optical resolution, which is far more than you need for readable text. The disadvantage is that the lid applies downward pressure unless you prop it open, and the gutter area (the inner margin closest to the spine) always curves slightly, creating shadow and distortion.

If you're already evaluating hardware, our comparison of wired vs. wireless scanners for a home office covers the connectivity trade-offs that matter when integrating a scanner into your workflow.

Overhead Book Scanners

Overhead or "V-cradle" book scanners are purpose-built for this task. The book rests in a V-shaped cradle at a safe 90–120° opening angle while cameras mounted above capture both pages simultaneously. Professional models like those from Czur or CZUR ET series use structured light to dewarp curved pages automatically. These scanners are significantly more expensive than flatbeds, but they're the gold standard for fragile or valuable books because the spine never touches a flat surface.

Smartphone Scanning Apps

For occasional use, a good smartphone scanning app can produce surprisingly clean results. Apps like Microsoft Lens, Adobe Scan, and Google PhotoScan use the phone's camera plus computational post-processing to flatten page curvature. The book lies open at whatever angle is comfortable — typically 90–100° — so spine stress is minimal. Resolution is lower than a dedicated scanner, but for archival reading copies it's entirely adequate. The main limitation is inconsistent lighting and slower page-by-page workflow.

Scanner Settings for Best Results

Resolution and Color Mode

For text-only books, 300 dpi in grayscale is the standard archival recommendation from the Library of Congress digital preservation guidelines. This produces files large enough for OCR and comfortable on-screen reading without becoming unwieldy. For illustrated books, art books, or anything with color photos, scan at 400–600 dpi in 24-bit color. Going beyond 600 dpi rarely adds useful detail for typical printed material and inflates file sizes dramatically.

Choosing the Right File Format

TIFF is the lossless archival choice — every pixel is preserved exactly. For most personal use cases, however, PDF with JPEG compression at 85–90% quality offers an excellent balance of quality and file size. If your final goal is a searchable document, PDF is the natural container format since OCR text layers embed directly inside it. PNG is useful for individual page images where you want lossless quality without the TIFF overhead.

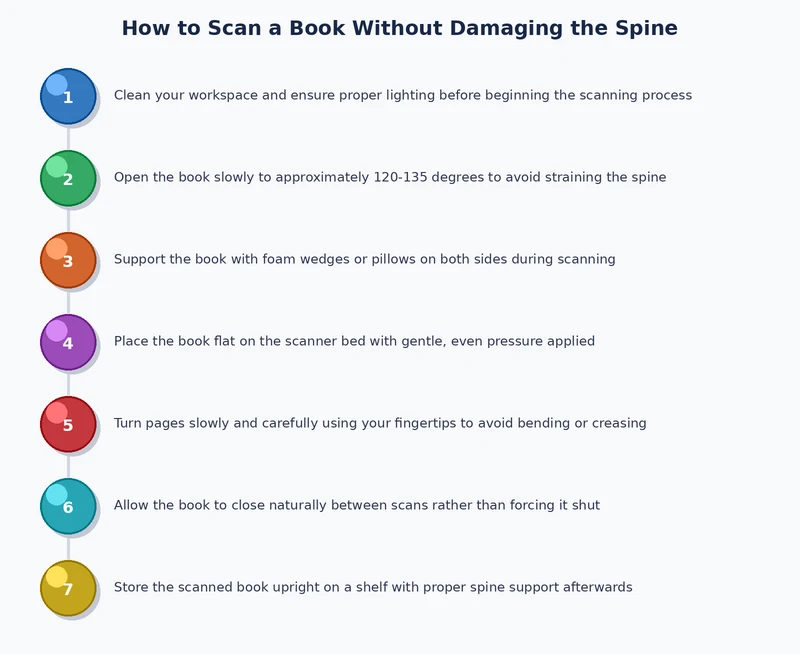

Step-by-Step: Scanning a Book on a Flatbed

Follow this sequence to minimize spine stress while getting clean scans on a standard flatbed scanner:

1. Set your scanner software first. Configure resolution (300 dpi for text, 400+ for images), color mode, and output format before placing the book. You don't want to reopen the book multiple times to adjust settings.
2. Open the book to a comfortable angle — not flat. Aim for roughly 100–120°. The inner pages will curve, but that's correctable in software. Forcing it flat is not worth the damage.
3. Use a foam wedge or book cradle. Place the foam under the open cover so the book rests at a stable angle. Some people use a thick folded towel. This also props the cover above the glass and removes pressure from the binding.
4. Lift the scanner lid — don't press it down. Leave the lid raised or resting very lightly. If you need to block ambient light to reduce glare, drape a dark cloth loosely over the lid without pressing down.
5. Scan two pages at a time. Position the book so both the left and right pages are on the glass, then split them in software later. This halves the number of times you have to reposition the book.
6. Advance pages gently. Turn pages one at a time from the top corner, not the bottom edge near the spine. Pulling from the gutter area stresses the binding with every turn.
7. Scan the cover and back cover last. These are the most flexible parts of the book and easiest to scan flat without risk.

Post-Processing: Straightening, OCR, and Merging

Raw book scans almost always need some cleanup before they're usable. The gutter creates curved text, pages may be slightly rotated, and brightness can vary between scans. Post-processing is where you recover image quality without needing to re-scan.

Dewarping Curved Pages

Dewarping corrects the barrel distortion that appears near the spine. Free tools like ScanTailor Advanced and GIMP can handle this manually. Dedicated book scanning software such as BookScan Editor (Windows) or the open-source Scantailor Universal automate the process by detecting the page curve and applying a reverse warp. For overhead scanners that use structured light (like Czur models), dewarping happens in the bundled software automatically.

OCR for Searchable Text

Once your pages are clean and flat, optical character recognition (OCR) converts the image of text into actual selectable, searchable characters. If you want to understand exactly how this technology works before choosing a tool, our explainer on what OCR scanning is and how it works covers the underlying process in detail. For practical use, Adobe Acrobat, ABBYY FineReader, and the free Tesseract engine (via front-ends like FreeOCR or OCRmyPDF) are the leading options. Accuracy depends heavily on scan quality — a well-lit 300 dpi grayscale scan typically achieves 97–99% character accuracy on clean printed text.

Once your PDF is ready, consider pairing it with automatic cloud backup. Our walkthrough on how to scan documents directly to Google Drive or Dropbox shows how to automate that final step so every new scan lands in cloud storage without manual uploads.

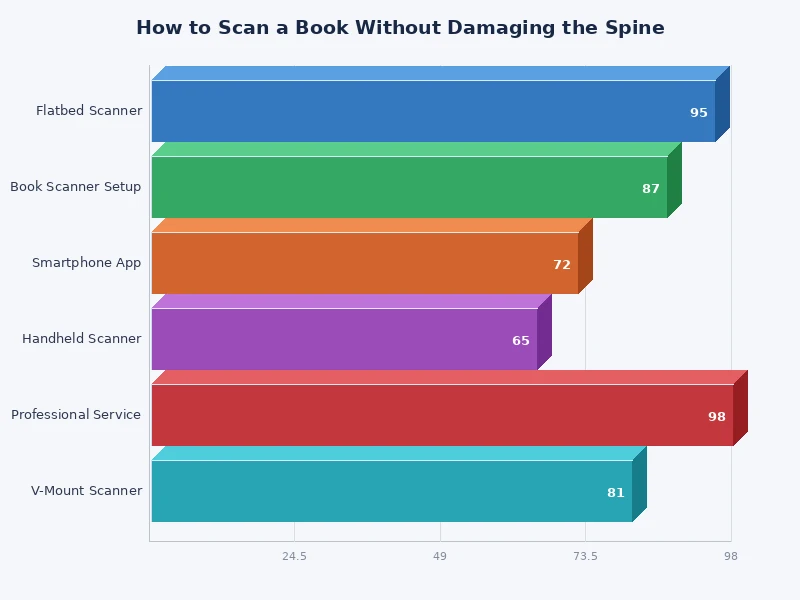

Scanner Method Comparison

Pro Tips to Protect Your Book

Beyond technique and hardware, a few habits will meaningfully extend the life of any book you scan regularly:

• Never scan a cold book. Books stored in cool, dry environments have stiffer adhesive. Let the book rest at room temperature for 30 minutes before scanning — the glue becomes slightly more pliable and less likely to crack under any stress.
• Use a glass platen weight for flatbeds. A thin piece of clear acrylic or tempered glass laid gently over the open pages presses them flat without requiring you to close the lid. Cut it slightly smaller than the scanner bed so it doesn't scratch the edges.
• Scan thicker books in sections. If a spine feels stiff, scan the first third, then the middle third, then the last third — repositioning the book each time rather than forcing the entire book open at once.
• Label your output files systematically. Name files like bookname_p001.tiff, bookname_p002.tiff, and so on, from the very first scan. Renaming hundreds of files after the fact is a significant time cost.
• Back up before post-processing. Keep a folder of raw, untouched scan files separate from your working copies. If a dewarping or crop operation goes wrong, you always have originals to fall back on.
• Calibrate your scanner glass. Dust or smudges on the glass appear as consistent marks across every page scan. Clean the platen with a microfiber cloth before starting any long digitization session.

If you're scanning books as part of a broader document management workflow — including receipts, contracts, and photos — the same flatbed scanner you use for books handles all of those tasks well. The principles of careful technique, appropriate resolution, and consistent file naming apply equally across all document types.
