IPS vs OLED vs TN Laptop Displays Explained

Over 60 percent of laptop buyers report display regret within the first month of ownership — and the root cause almost always traces back to panel type. The choice between ips vs oled vs tn laptop display technology shapes every hour of screen time: color fidelity, battery consumption, viewing comfort, and motion clarity all hinge on it. Every buyer browsing laptops deserves a straight answer, not a spec sheet dump. This guide delivers exactly that — a practitioner-level breakdown of all three panel technologies, without hedging.

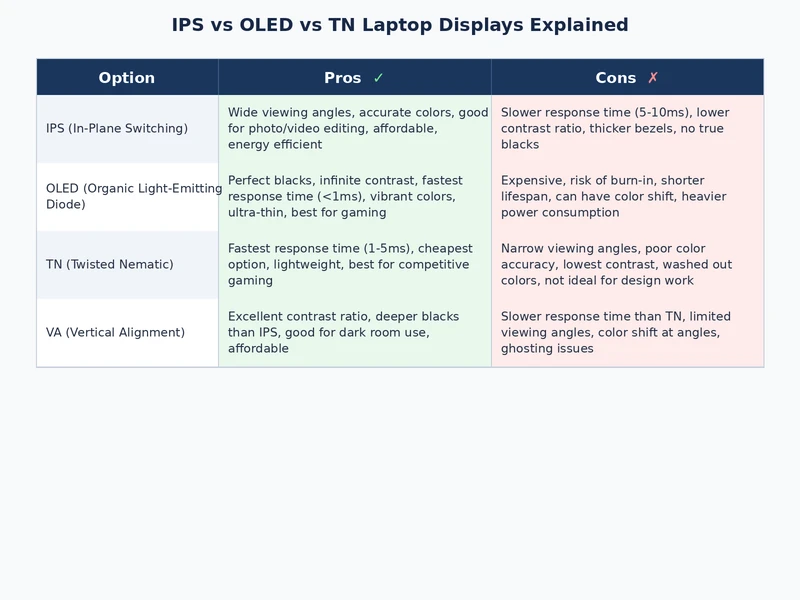

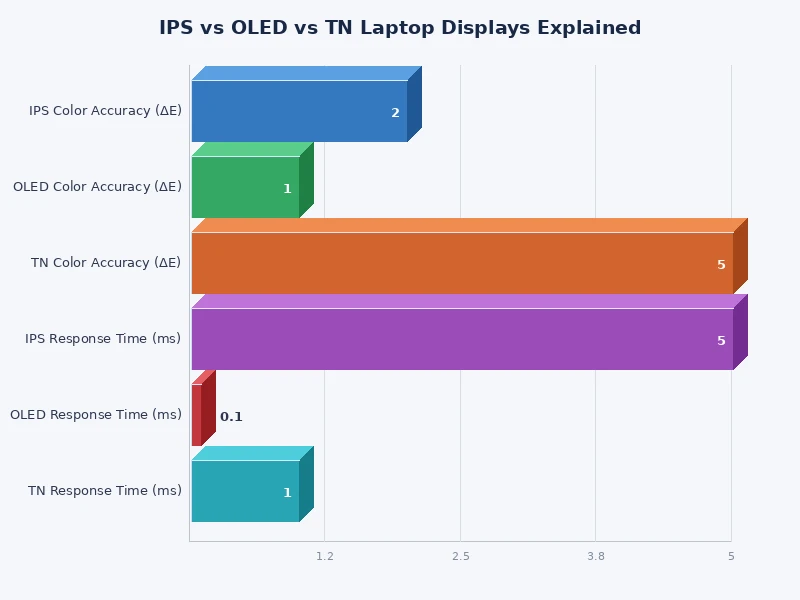

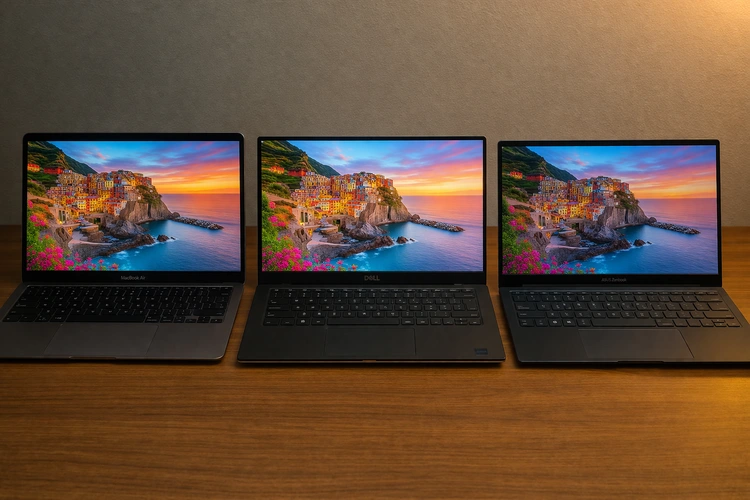

Panel Technology Breakdown: IPS, OLED, and TN

Understanding the ips vs oled vs tn laptop display split starts at the pixel level. Each technology produces light and color through fundamentally different mechanisms, and those differences cascade into every real-world performance gap buyers notice.

IPS Characteristics

In-Plane Switching aligns liquid crystals horizontally. That alignment produces wide viewing angles — typically 178 degrees horizontal and vertical — with consistent color reproduction across the full panel surface. Most mid-range IPS units cover 90–100% sRGB natively. Higher-end variants reach 100% DCI-P3. Contrast ratios land around 800:1 to 1500:1 natively, with mini-LED local dimming editions extending toward 10,000:1 in controlled zones. Response times sit between 3–8ms at the GTG metric. That range is adequate for most tasks but falls short for competitive gaming at 240Hz+.

OLED Characteristics

Organic Light-Emitting Diode panels require no backlight. Each pixel emits its own light and switches off completely for black content, delivering theoretically infinite contrast. Samsung AMOLED and LG OLED variants dominate the laptop segment. Color volume on OLED exceeds standard gamuts substantially — most units hit 100% DCI-P3, often surpassing it into wider color spaces. Response time is sub-1ms, making motion blur a non-issue. The tradeoffs are permanent burn-in risk from static content and higher per-pixel power draw on bright backgrounds. Peak brightness reaches 600–1000+ nits in HDR mode, but sustained SDR brightness throttles to protect panel longevity.

TN Characteristics

Twisted Nematic panels are the oldest LCD technology still in widespread laptop use. Vertical viewing angles are narrow — often rated at 160/140 degrees, though real-world performance is worse. Color accuracy is mediocre without aggressive factory calibration, and gamut coverage rarely exceeds 72% NTSC. The redeeming quality is response time: 1–2ms GTG is routine, enabling 360Hz+ refresh rates unavailable on any competing panel technology. Cost per panel remains lower than IPS or OLED at equivalent resolution. TN fits one narrow use case precisely: competitive esports players who rank motion clarity above every other display attribute.

Real-World Display Scenarios by Workflow

Panel selection becomes trivial once the workflow is defined. The ips vs oled vs tn laptop display question answers itself when the use case is concrete and honest.

Creative and Color-Critical Work

Photographers, video editors, and graphic designers working in sRGB or DCI-P3 color spaces require accurate, wide-gamut panels with verified calibration. OLED dominates for HDR video grading — the per-pixel contrast control is unmatched for evaluating shadow detail. Factory-calibrated IPS covering 100% DCI-P3 is the professional standard for print-targeted work, where OLED's elevated saturation can mislead soft-proofing. TN has no role in professional creative workflows — full stop.

• HDR video grading: OLED preferred
• Print design and CMYK workflows: IPS with DeltaE <2
• Photo retouching: IPS or OLED, both acceptable with calibration
• UI and illustration work: IPS reliable, OLED excellent

Gaming and High-Refresh Use

Competitive gaming divides sharply. Esports titles — CS2, Valorant, Overwatch 2 — favor TN or high-refresh IPS panels at 240Hz or 360Hz, where motion clarity and input lag metrics translate into real-time advantage. AAA single-player gaming benefits decisively from OLED contrast and color volume. The choice between a gaming laptop vs a regular laptop already constrains panel availability significantly, since dedicated gaming configurations increasingly ship with IPS or OLED at 144Hz or higher as the minimum.

• Esports / competitive: TN at 240Hz+ or IPS at 165Hz+
• AAA / immersive single-player: OLED strongly preferred
• Casual gaming: Any 144Hz IPS delivers well

Office and Productivity Tasks

Document work, spreadsheets, video calls, and browser-based tools impose minimal demands on color gamut. IPS is the default winner in this category. Wide viewing angles matter during collaborative screen sharing and presentations. Battery life favors IPS over OLED for productivity workflows: most office content is bright-background with dark text — the worst-case power scenario for OLED. Storage decisions covered in guides like SSD vs HDD in laptops affect overall system responsiveness, but the display remains the primary ergonomic interface in any extended work session.

Pro tip: For office use on OLED, enable dark mode system-wide and set a 3-minute screen timeout. Both measures reduce peak-brightness hours and slow cumulative burn-in on static UI elements like taskbars.

The Right Panel for the Right Buyer

Direct buyer-to-panel mapping cuts through specification confusion immediately. These are the correct answers, not hedged suggestions.

• Graphic designer or photographer — IPS (factory calibrated, DCI-P3 90%+) or OLED. Color gamut coverage is non-negotiable.
• Video editor or colorist — OLED for HDR-primary pipelines; IPS with local dimming for SDR-primary workflows.
• Competitive gamer — TN at 240Hz or IPS at 165Hz+. Motion clarity outranks color accuracy in this use case.
• Business traveler — IPS. Consistent readability across varied ambient lighting, with predictable battery behavior.
• Student or general user — Mid-range IPS. Outstanding value, no meaningful compromise for standard tasks.
• Media consumer — OLED. The contrast and color saturation gap on streaming content is not subtle at all.

OLED is the objectively superior panel technology in pure display terms. Premium pricing and burn-in management are the only reasons it does not earn a universal recommendation. Buyers who can absorb the cost delta and manage static content exposure should choose OLED — it wins the ips vs oled vs tn laptop display comparison outright on display performance alone.

Situations Where Each Technology Falls Short

Every panel type has genuine, unfixable weaknesses. Knowing them upfront prevents expensive regret.

IPS Weaknesses

IPS glow is real and panel-dependent. In dark room conditions, the backlight bleeds from corners and edges — a phenomenon separate from calibration that no software correction resolves. Contrast ratios cap around 1,000–1,500:1 on standard IPS, making deep shadow rendering look gray-lifted compared to OLED. Brightness uniformity also varies across the panel surface on budget units; this is visible on solid-color backgrounds and matters for photography work.

OLED Weaknesses

Burn-in is not hypothetical. Permanent ghost images from static UI elements — taskbars, desktop icons, persistent application chrome — accumulate over extended use. Laptops running fixed-layout productivity software for 8+ hours daily are measurably at risk over a multi-year ownership period. OLED also throttles sustained peak brightness to protect panel longevity, which means SDR desktop brightness in extended sessions is often lower than the headline HDR figure suggests. The cost premium over equivalent IPS configurations remains substantial across most market segments.

TN Weaknesses

TN panels are difficult to recommend outside competitive gaming contexts. Color shift at off-angles is visible at as little as 15–20 degrees from center — a problem the moment a second person views the screen. Gamut coverage rarely exceeds 72% NTSC, producing washed-out reds and greens that are immediately apparent on photography or video. Contrast is structurally poor. In an era when 144Hz IPS panels are widely available at competitive price points, the case for TN outside a narrow esports context has nearly collapsed.

Warning: Budget laptops frequently ship with TN panels marketed as "Full HD IPS-level display" — always verify the actual panel model using HWiNFO or CPU-Z before finalizing a purchase where specifications matter.

Common Display Myths, Corrected

Misinformation about the ips vs oled vs tn laptop display debate is pervasive. These are the claims that need permanent correction.

Myth: Higher Refresh Rate Always Means Better Experience

False. A 60Hz IPS with accurate color calibration outperforms a 144Hz TN for any creative or productivity workflow. Refresh rate only becomes critical above 60Hz for motion-sensitive applications. For document work, the perceptual difference between 60Hz and 120Hz is minimal; beyond 120Hz for non-gaming tasks, it is irrelevant. Buyers paying a premium for 240Hz on a non-gaming machine are getting nothing back.

Myth: OLED Burns In Within Months

Overstated substantially. Modern OLED panels incorporate pixel-shift algorithms, automatic brightness limiting (ABL), and idle-state screen shifts to distribute organic compound aging across the panel. Burn-in under normal mixed-use conditions takes years under sustained high-static conditions. The risk is real but manageable. High-risk scenarios are narrowly defined: laptops used exclusively with fixed-layout software displaying identical UI elements for full workdays over multiple years.

Myth: TN Is Dead Technology

Not entirely accurate. TN at 360Hz or higher remains the correct choice for professional esports athletes where sub-2ms response times produce measurable competitive advantage. The technology has one remaining legitimate stronghold. Outside that context, the recommendation is clear: move on.

Myth: Wider Color Gamut Is Always Better

Only when paired with proper OS and application-level color management. An uncalibrated wide-gamut OLED displaying sRGB content without gamut mapping oversaturates every image noticeably. Panel hardware quality means nothing without software enforcement. Many users purchase wide-gamut panels and run them with applications that ignore ICC profiles entirely — producing worse color accuracy than a well-calibrated standard-gamut IPS would deliver.

Calibration and Measurement Tools Worth Knowing

Evaluating or correcting a laptop display requires specific hardware and software. Objective measurement beats factory-claimed specifications — manufacturers routinely publish best-case numbers under controlled conditions that differ from real-world performance.

Hardware Colorimeters and Spectrophotometers

• X-Rite i1Display Pro Plus — industry-standard colorimeter for both IPS and OLED calibration; supports extended gamut profiling
• Calibrite ColorChecker Display Pro — current retail successor to the i1Display line; handles laptop displays reliably
• Datacolor Spyder X Pro — solid mid-range option for non-commercial calibration workflows

Spectrophotometers cost more but measure absolute spectral power distribution — relevant specifically for print proofing environments. Colorimeters cover display-to-display consistency and profile generation for the vast majority of users.

Software Diagnostic and Profiling Tools

• DisplayCAL — open-source profiling software, compatible with most hardware colorimeters; generates accurate ICC profiles
• HWiNFO — identifies the exact panel model installed in any laptop, bypassing manufacturer obfuscation
• Windows Color Management — loads and enforces ICC profiles at the system level
• Lagom LCD Test Pages — free browser-based tests covering gradient banding, sharpness, backlight uniformity, and pixel response

According to Wikipedia's overview of color calibration, even well-manufactured displays benefit from profiling to align color output with industry-standard targets. Factory calibration certificates included with premium panels are not substitutes for in-situ measurement on the physical unit received.

Entry-Level Needs vs Professional-Grade Demands

The ips vs oled vs tn laptop display selection matrix looks different depending on technical sophistication and whether workflow outcomes depend directly on display accuracy.

What Entry-Level Buyers Actually Need

Most users — students, general consumers, home office workers — never stress-test color accuracy or measure contrast ratios. For this group, a mid-range IPS panel at 1080p or 1440p covers all real-world needs. Brightness of 300+ nits handles most indoor environments without strain. Refresh rate at 60–120Hz is sufficient for every non-gaming task. The upgrade to OLED is visible and pleasant on video content but is not required to accomplish the workflow. Money is better directed toward storage or processing power.

• Target: IPS, 300+ nits, 100% sRGB, 60Hz minimum
• Resolution: 1080p minimum; 1440p preferred on 14-inch or larger panels
• Skip: high-refresh TN — overkill with significant color penalties

What Professional Users Cannot Compromise On

Color professionals, video producers, and engineers with display-dependent deliverables require verifiable specifications rather than marketing language. Factory calibration with a documented DeltaE report, confirmed gamut coverage percentages, and panel uniformity data matter at this level. Extending the display environment to external monitors or projection is standard practice. Understanding how to connect a laptop to a projector expands display options significantly for client presentations and studio environments. Buyers evaluating projection systems alongside laptop displays should also review the full projector buying guide to understand display compatibility requirements.

• Target: OLED or IPS with DCI-P3 90%+, DeltaE <2, factory-calibrated unit
• Brightness: 400+ nits sustained for reliable daylight use
• Mandatory: hardware colorimeter calibration post-purchase
• External display: often necessary for sustained color-critical output evaluation

Diagnosing Common Laptop Display Problems

Panel-related issues are frequently misdiagnosed as driver or software faults. Identifying the source correctly saves time and avoids unnecessary warranty escalations.

Backlight Bleed and IPS Glow

Backlight bleed produces bright patches along screen edges on dark content. IPS glow appears as a silvery or milky sheen that shifts position with viewing angle changes. Neither is correctable through software or calibration. Severe backlight bleed warrants an RMA claim if it falls within the manufacturer's uniformity specification threshold. Mild glow is inherent to IPS panel construction and is a technology limitation, not a defect.

Test method: Display a pure black full-screen image in a completely dark room at maximum brightness. Document the result with a photograph for warranty claims.

Color Shift and Gradient Banding

Visible banding in smooth gradients indicates either an 8-bit panel without effective dithering or a misconfigured color profile assignment. Check Windows Color Management for the active profile loaded against the display. Run DisplayCAL's gradient test to confirm banding source. On TN panels, color shift at angle is structural and unfixable. On IPS panels, uniform mild shift is normal; non-uniform shift or severe posterization suggests a profile conflict or panel defect.

Screen Flicker and PWM Sensitivity

PWM (Pulse Width Modulation) dimming causes imperceptible flicker at certain brightness levels on many LCD and some OLED panels. Sensitive users report eye strain and headaches without being able to identify the cause. Test with a smartphone camera in slow-motion mode: horizontal banding bands visible in the video confirm PWM. Many OLED panels use DC dimming at mid-to-high brightness levels and switch to PWM below a threshold. Firmware updates or DC dimming utilities can mitigate the issue on compatible hardware. Unrelated but commonly conflated hardware problems — like a touchpad not working or a keyboard that stops responding — are worth ruling out before attributing all user discomfort to the display.

Dead Pixels and Stuck Pixels

Dead pixels remain permanently black regardless of content. Stuck pixels display a fixed color — most often red, green, or blue. ISO 13406-2 defines manufacturer defect thresholds; most allow a limited number of type-2 defects before issuing a replacement unit. Run JScreenFix or a pixel-exercising utility for 24 hours on stuck pixels; recovery rates are approximately 60% for single stuck pixels. Dead pixels do not recover and require panel replacement if above the manufacturer's tolerance.

Practical Buying Checklist for Display Selection

Apply these criteria before purchase to eliminate regret. The ips vs oled vs tn laptop display decision simplifies immediately when concrete requirements are listed against concrete specifications.

Non-Negotiable Verification Steps

• Confirm the panel model via HWiNFO or CPU-Z before finalizing purchase on used or refurbished units
• Verify actual gamut coverage percentage — manufacturer claims and independent measurements regularly diverge
• Check brightness in nits, not qualitative labels: 300 nits for indoor use, 400+ nits for mixed indoor/outdoor
• Confirm refresh rate matches intended use: 60Hz for productivity, 144Hz+ for gaming
• On OLED: verify whether DC dimming or PWM is used at low brightness settings before committing

Quick Evaluation at Point of Sale

• Display a full-screen black image: check edges and corners for backlight bleed in ambient store lighting
• View the panel from 45 degrees left and right: IPS holds color accurately, TN shifts noticeably
• Open a high-contrast photograph: OLED blacks appear absolute, IPS blacks appear dark gray in direct comparison
• Set brightness to maximum: anything below 300 nits in a modestly lit store will struggle outdoors entirely

Ongoing Maintenance Practices

Display longevity requires minimal but specific care. Keep the keyboard and chassis clean to prevent debris pressing against screen surfaces during transport in bags. Use only microfiber cloth dry on OLED — solvent-based cleaners degrade organic compounds. Enable adaptive or auto-brightness on OLED machines to reduce peak-brightness accumulation. Recalibrate using a hardware colorimeter every 6–12 months for any color-critical workflow — panels drift from factory calibration over time, and the drift is not linear.

Final Thoughts

The ips vs oled vs tn laptop display decision is straightforward once the workflow is defined honestly. IPS handles the vast majority of use cases without meaningful compromise and remains the safest default. OLED is the correct answer for buyers who prioritize display quality and can manage static content exposure. TN serves one audience well and almost nobody else. Browse the full laptop catalog with panel type as the primary filter — apply the verification checklist above before purchasing, and the right panel will be obvious.
