Printer Drum vs Toner Cartridge: What Is the Difference?

If you own a laser printer, you have almost certainly heard the terms drum unit and toner cartridge used interchangeably — but they are two completely different components. Understanding the printer drum vs toner cartridge distinction is not just a technical curiosity; it has a direct impact on your printing costs, the quality of your output, and how you maintain your machine. Whether you are troubleshooting faded pages or trying to figure out which part to reorder, this guide breaks down exactly what each component does, how long it lasts, and what you can expect to spend on replacements.

What Is a Printer Drum Unit?

The drum unit — also called the imaging drum or OPC drum (Organic Photo Conductor) — is the mechanical heart of a laser printer. It is a cylindrical component coated with a light-sensitive material, typically an organic photoconductor. Its job is to receive the laser image, attract the right toner particles to the right spots, and then transfer that image onto paper.

Think of the drum as the master stencil. Every page that passes through your laser printer is first "drawn" on the drum by a laser beam before anything gets transferred to paper. Without a functioning drum, the printer cannot form an image at all — no matter how full your toner cartridge is.

How the Drum Unit Works

The laser printing process relies on electrostatic principles, which Wikipedia's laser printing article explains in detail. In simplified terms:

1. A corona wire or charge roller applies a uniform negative electrostatic charge across the drum surface.
2. The laser beam selectively neutralizes charge in the areas that correspond to text or images, creating an invisible electrostatic "map" of the page.
3. Toner particles — which carry a negative charge — are repelled by the still-charged areas and attracted to the neutralized (image) areas.
4. A high-voltage transfer roller pulls the toner off the drum and onto the paper as it passes through.
5. The fuser unit melts the toner permanently into the paper fibers.
6. A cleaning blade wipes residual toner off the drum, resetting it for the next page.

This entire cycle repeats thousands of times before a drum unit needs replacement, which is why it outlasts toner cartridges by a wide margin.

Drum Unit Lifespan

A typical drum unit is rated to last anywhere from 10,000 to 75,000 pages, depending on the printer model and usage patterns. High-end workgroup printers often ship with longer-life drums. Light-duty home printers tend toward the lower end of that range. The key takeaway: you will likely replace your toner cartridge three to five times — sometimes more — before you ever need a new drum. If you find yourself dealing with recurring image quality problems, our guide on how to clean a laser printer drum walks through the maintenance steps that can extend drum life significantly.

What Is a Toner Cartridge?

A toner cartridge is a sealed reservoir containing toner powder — an ultra-fine mixture of plastic resin, pigment (carbon black for monochrome, colored pigments for color), and various charge-control agents. Unlike inkjet ink, toner is a dry substance. It does not absorb into paper; it fuses onto the surface.

Toner cartridges are consumables in the truest sense. Once the powder is depleted, the cartridge is replaced or refilled, and the printer continues using the same drum. This is the fundamental difference that confuses most users: toner is the material; the drum is the mechanism that uses it.

How Toner Works

Inside the cartridge, a developer roller continuously coats itself with a thin, even layer of toner particles. When the drum's electrostatic image comes into contact with the developer roller, toner jumps across and sticks to the image areas. The cartridge also houses an agitator paddle that keeps the remaining toner loose and prevents clumping, which is why gently rocking a nearly-empty cartridge can sometimes squeeze out a few dozen extra pages.

Color laser printers use four separate toner cartridges — cyan, magenta, yellow, and black (CMYK) — each paired with either its own drum or a shared drum assembly, depending on the design.

Toner Cartridge Page Yield

Standard-capacity toner cartridges typically yield between 1,000 and 3,500 pages for home/small-office models. High-yield (XL) cartridges often double or triple that number at a lower cost per page. For a deeper look at how manufacturers calculate these numbers and what they mean for your real-world print volume, see our breakdown of laser printer toner yield explained.

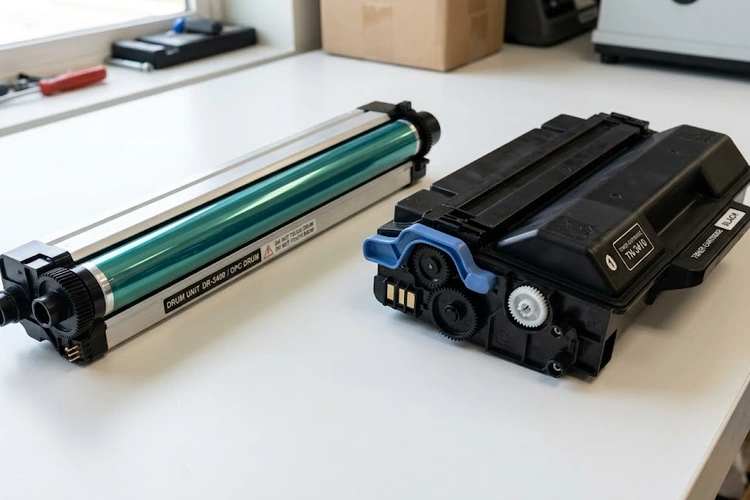

Printer Drum vs Toner Cartridge: Key Differences

Function and Role in the Print Process

The core distinction is reusable mechanism vs. consumable material. The drum is a precision optical-mechanical component that transfers images. The toner cartridge is simply the ink supply — a refillable (or replaceable) tank of powder. Confusing the two is like mixing up a stamp and ink: the stamp forms the image; the ink makes it visible.

When a print comes out looking faded or streaky, the problem could be either component. Low toner causes uniform fading across the page. A dirty or worn drum typically causes repeating bands, smears, or ghost images at regular intervals corresponding to the drum's circumference. If you are dealing with the latter, check out our article on how to fix printer streaks and lines on pages for a systematic troubleshooting approach.

Replacement Frequency

The replacement ratio is typically 3:1 to 5:1 in favor of the drum. That is, you replace the toner cartridge three to five times per single drum replacement. Some manufacturers use this ratio as a design feature, engineering the drum to last exactly as long as a set number of toner cartridges so users replace both simultaneously. Others separate the components entirely, letting you optimize each replacement independently.

When to Replace Each Component

Signs Your Drum Needs Replacing

Drum wear shows up as consistent, repeating print quality defects. Watch for:

• Repeating marks or dots at fixed intervals — measure the distance between repeating spots; if it matches the drum circumference (usually 75–95 mm), the drum surface is scratched or contaminated.
• Ghost images — a faint copy of a previous page appearing in the background of the current print, caused by inadequate drum cleaning.
• Horizontal white or black lines running across the full width of the page.
• Drum life warning on the printer's control panel or status page — most modern printers count drum rotations and alert you when the drum approaches end-of-life.

Do not immediately assume the drum is dead when print quality drops. A contaminated drum can often be restored. Knowing how to clean a laser printer drum properly — using the right materials and technique — can resolve many of these issues before a replacement is warranted.

Signs Your Toner Is Running Low

• Uniform fading across the entire page, with text appearing lighter than usual.
• Low toner alert on the display — most printers warn you at 10–20% remaining capacity.
• Streaking along the print direction (vertical streaks) caused by uneven toner distribution in a nearly-empty cartridge.
• Color shifts in color laser prints when one of the CMYK cartridges runs out before the others.

When you replace a toner cartridge, the process is straightforward, but doing it correctly matters — especially for color printers where installation sequence affects calibration. Our step-by-step guide on how to replace a toner cartridge covers every major brand's procedure.

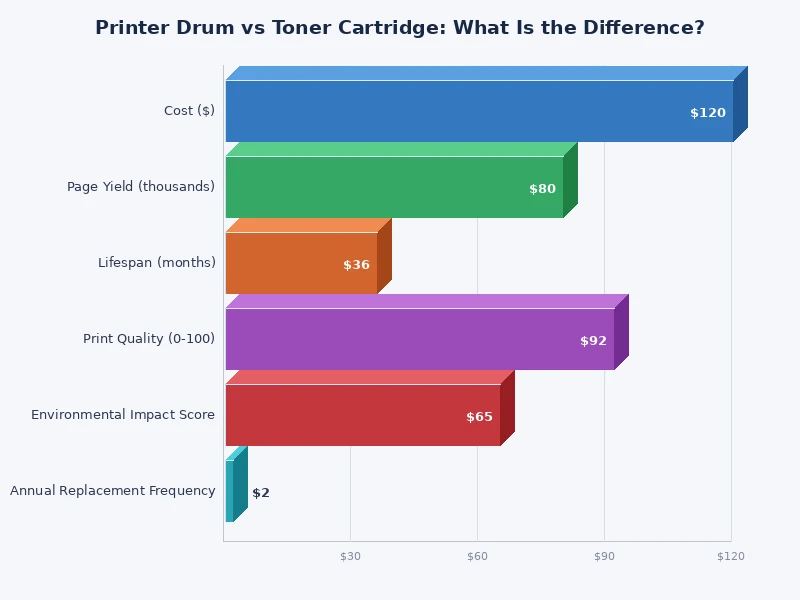

Cost Comparison and Long-Term Value

Integrated vs Separate Units

Laser printer manufacturers take two distinct design approaches:

• Integrated (all-in-one) cartridges — The drum and toner are housed in a single unit. Every time you replace the toner, you also replace the drum. This simplifies maintenance but increases per-replacement cost. Common in HP LaserJet and many Canon models.
• Separate drum and toner — The drum is a standalone unit; toner cartridges slot into or alongside it. You replace toner frequently and the drum far less often. Common in Brother, many Lexmark, and some Kyocera models. This design typically lowers long-term running costs if you print frequently.

If you are evaluating which type of laser printer to buy, our guide on what to know before buying a laser printer covers this design tradeoff along with other purchase considerations. You can also browse our reviewed models on the printer reviews page to compare specific options.

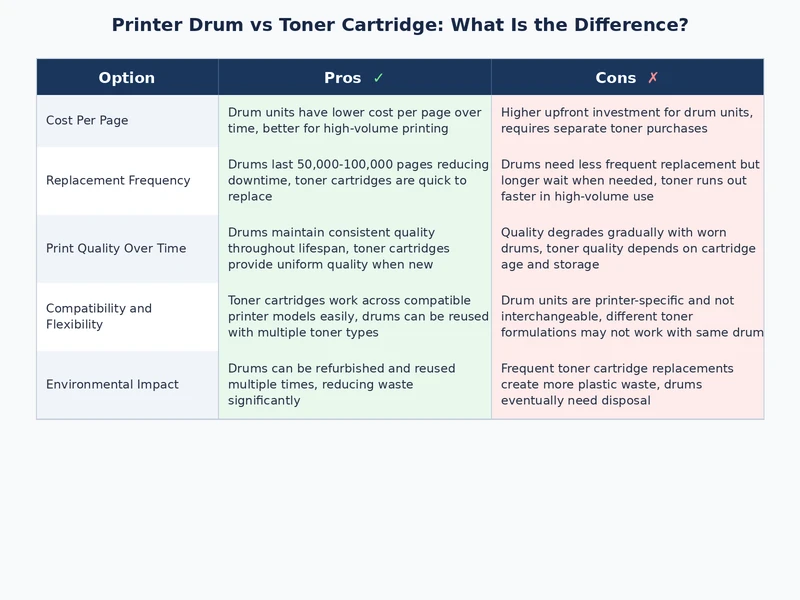

Cost Comparison Table

Note: Costs vary considerably by brand, printer model, and whether you use OEM or compatible third-party supplies. The figures above reflect typical ranges for home and small-office printers.

Which Printers Use Separate Drums and Toners?

Knowing whether your printer uses a combined or separate system is the first step to understanding your consumable costs. Here is a quick brand-level overview:

• Brother — Nearly all Brother laser printers use separate drum units and toner cartridges. The drum unit typically lasts for three or four toner changes. This is one reason Brother printers tend to have lower long-term running costs.
• HP LaserJet (most models) — HP largely uses integrated HP-branded toner cartridges where the drum is built in. Replacement is simple but more expensive per cycle.
• Canon imageCLASS — Many Canon models also use all-in-one cartridges, though some higher-volume models separate the drum from the toner.
• Lexmark — Offers both designs depending on the product line. Business-class models typically separate drum and toner for lower cost-per-page.
• Kyocera — Known for exceptionally long-life drums (up to 100,000 pages on some models), with separate toner cartridges. This design dramatically reduces waste and long-term cost for high-volume users.

If you are unsure which design your current printer uses, check the model's consumables page or look at what the manufacturer lists as replaceable parts. If you see a "drum unit" and a "toner cartridge" listed as separate part numbers, your printer uses the separated design. If you only see a single "toner cartridge," the drum is likely integrated.

For color laser printers specifically, the drum question gets more complex. Some color models use a single shared drum assembly with four separate toner cartridges arranged in a carousel or linear array. Others use four individual drum-and-toner sets, one per color channel. The latter design gives more precise control over individual color quality but significantly increases replacement complexity and cost.

Summary: Drum Unit vs Toner Cartridge

The printer drum vs toner cartridge question ultimately comes down to role versus material. The drum is a long-lived, light-sensitive cylinder that forms the electrostatic image on every page you print. The toner cartridge is the powder supply that fills in that image with pigment. They work together — the drum cannot print without toner, and toner alone cannot form an image without the drum.

For most users, the practical takeaway is straightforward: replace your toner when pages start fading uniformly, and replace your drum when you see repeating marks, ghost images, or a drum-life alert. If your printer uses separate components, this distinction will save you money — there is no reason to replace a healthy drum just because the toner ran out. If your printer uses an integrated cartridge, the decision is made for you, and the focus should be on finding the best yield for your printing volume.

Understanding these fundamentals puts you in control of your printer maintenance and supply budget rather than reacting to unexpected costs. Whether you print dozens of pages a week or thousands per month, knowing exactly what each component does is the foundation of efficient, cost-effective laser printing.
