Resin vs FDM 3D Printer: Which Is Right for You?

If you're researching your first 3D printer, you've almost certainly come across the core debate: resin vs FDM 3D printer differences. These two technologies dominate the consumer and prosumer market, yet they work in fundamentally different ways and excel in entirely different scenarios. FDM (Fused Deposition Modeling) printers melt plastic filament and build objects layer by layer, while resin printers use UV light to cure liquid photopolymer resin into solid form. The right choice depends on what you plan to print, your workspace, your budget, and how much post-processing you're willing to do. This guide breaks down every meaningful difference so you can make a confident decision. For a broader look at printing hardware for your home or office, visit our printers resource page.

How Each Technology Works

Understanding the mechanics behind each printer type is the foundation for evaluating resin vs FDM 3D printer differences. The physical process of building an object differs enormously between these two approaches, and those differences cascade into every other aspect of ownership.

FDM Printing Explained

FDM printers work by feeding a spool of thermoplastic filament through a heated nozzle called the hot end. The nozzle melts the filament and deposits it in precise paths on a build plate, building the object one horizontal layer at a time from the bottom up. A cooling fan solidifies each layer almost immediately after deposition. The build plate either moves vertically (in Cartesian printers) or the print head moves on multiple axes. Popular FDM machines include the Creality Ender series, Bambu Lab X1, and Prusa MK4.

The technology is mature, well-documented, and supported by a massive community. If something goes wrong, there's almost certainly a forum post or video explaining the fix. Maintaining an FDM printer — including tasks like cleaning the nozzle — is straightforward once you understand the basics. Our guide on how to clean a 3D printer nozzle covers the most common maintenance task you'll encounter.

Resin Printing Explained

Resin printers, also called SLA (Stereolithography) or MSLA (Masked Stereolithography) printers depending on the light source, work by exposing liquid photopolymer resin to UV light. In MSLA printers — the most affordable consumer type — an LCD screen masks a UV light array, curing an entire layer at once. The build plate starts at the bottom of the resin vat and lifts upward, peeling each cured layer off the FEP film at the vat's base. This peel-and-lift cycle repeats until the print is complete. Popular models include the Elegoo Mars and Saturn series and the Anycubic Photon range.

According to Wikipedia's entry on stereolithography, the technology dates back to the 1980s and was the first commercially available 3D printing method — though modern consumer MSLA printers have made it far more accessible than early industrial SLA systems.

Print Quality and Detail

Print quality is often the deciding factor when comparing resin vs FDM 3D printer differences, especially for users focused on miniatures, jewelry, dental models, or decorative figurines.

FDM Surface Finish and Resolution

FDM prints are characterized by visible layer lines on the Z axis. Standard layer heights run from 0.1mm to 0.3mm, with 0.2mm being the most common. These lines are visible to the naked eye on curved or angled surfaces, giving prints a stepped appearance without post-processing. Sanding, filling, and priming can improve the finish significantly, but that adds time. FDM excels at flat surfaces, mechanical parts, and objects where layer lines are hidden or irrelevant. XY resolution is limited by nozzle diameter — typically 0.4mm — meaning fine features below that threshold are difficult or impossible to reproduce accurately.

Resin Detail and Accuracy

Resin printers produce dramatically sharper detail. Layer heights of 0.025mm to 0.05mm are standard, meaning resin prints can capture features that FDM physically cannot. XY resolution is determined by the LCD screen's pixel pitch — modern 4K and 8K mono screens achieve pixel sizes under 0.05mm. The result is smooth, near-injection-molded surfaces straight off the print bed. This makes resin the clear choice for miniature figurines, dental appliances, jewelry masters, and any application where surface quality and fine geometry matter. The tradeoff is a smaller build volume compared to similarly priced FDM machines.

Materials, Cost, and Running Expenses

Long-term cost of ownership is one of the most practically important resin vs FDM 3D printer differences. Upfront hardware prices have converged, but material costs and hidden expenses diverge considerably.

Filament Varieties and Cost

FDM filament comes in an enormous range of materials. PLA is the most beginner-friendly — it prints at low temperatures, adheres easily, and is biodegradable. PETG adds chemical resistance and flexibility. ABS and ASA offer heat resistance and UV stability for outdoor use. Nylon, polycarbonate, TPU, and fiber-reinforced composites extend into engineering territory. A 1kg spool of standard PLA costs roughly $15–$25. Higher-performance materials run $30–$80+ per kilogram. Filament storage is simple — keep it dry and sealed — and unused material remains viable for years. Just as ink and toner management matters for 2D printers (as we explored in our guide on how to store ink cartridges properly), filament storage discipline directly impacts print quality and reduces waste.

Resin Types and Cost

Resin materials are improving rapidly but remain more limited than filament. Standard photopolymer resin prints brittle parts — fine for display models but unsuitable for functional clips or brackets. ABS-like, water-washable, flexible, and engineering resins expand usability. Resin costs $20–$50 per litre for standard formulations, with engineering grades reaching $80–$150+. Crucially, uncured resin is hazardous. It requires nitrile gloves, ventilation, and careful disposal. Wash-and-cure stations add $30–$80 to your setup cost. IPA or specialized wash solutions are a recurring consumable. Resin also has a shelf life and can degrade if stored improperly, making waste management more demanding than with filament.

Ease of Use and Workflow

Day-to-day usability shapes how enjoyable 3D printing actually is. The resin vs FDM 3D printer differences in workflow are significant enough to change which technology suits a given user's lifestyle.

FDM Workflow

Modern FDM printers, particularly newer enclosed models with automatic bed leveling, have dramatically reduced setup friction. Slice your model in software like PrusaSlicer, Bambu Studio, or Cura, transfer the file, and hit print. Supports can often be minimized with careful part orientation. Failed prints are easy to clean up — failed filament peels off the plate or can be scraped away. Prints are ready to use immediately after completion with no additional steps. The main ongoing maintenance tasks are leveling the bed, tightening belts, and periodic nozzle cleaning — all manageable for beginners.

Resin Workflow and Post-Processing

Resin printing involves mandatory post-processing. After printing, parts must be washed in IPA or a dedicated wash solution to remove uncured resin from the surface, then cured under UV light to reach full hardness and stability. Support removal is necessary for most prints and can be fiddly on delicate parts. The entire process — print, wash, cure, de-support, finish — typically adds 30–60 minutes per batch. Ventilation is essential because uncured resin fumes are irritating and potentially harmful. Gloves must be worn throughout. For users with a dedicated workshop or garage, this is manageable. For apartment dwellers or those without good ventilation, resin printing demands careful planning.

Head-to-Head Comparison

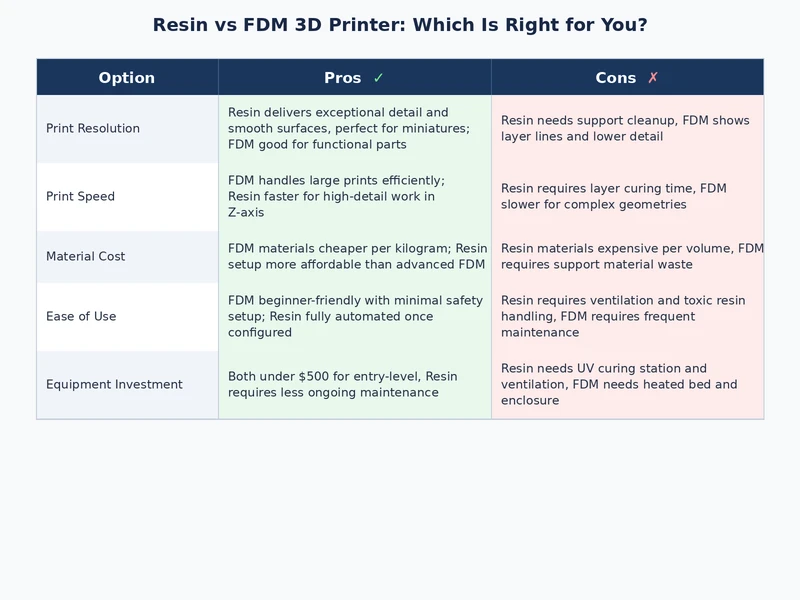

The table below summarizes the core resin vs FDM 3D printer differences across the most important decision criteria.

It's worth noting that if you're coming from a background in 2D printing — where decisions like wide format vs standard printers involve similar trade-offs between capability and convenience — the FDM vs resin decision follows a comparable logic: larger, more versatile, and easier to live with versus smaller, more precise, and more demanding in operation.

Which Should You Buy?

After examining all the major resin vs FDM 3D printer differences, the decision becomes surprisingly clear once you're honest about your priorities and workspace constraints.

Choose FDM If…

• You want to print functional parts, brackets, enclosures, or mechanical components that need to withstand stress.
• You need a large build volume — printing objects larger than roughly 15cm in any dimension rules out most entry-level resin machines.
• You're a beginner who wants a forgiving, low-maintenance entry into 3D printing without chemical handling.
• You want access to the widest possible range of materials, including flexible TPU, heat-resistant ASA, or engineering-grade nylon.
• You're printing in a shared space like a bedroom or living area where resin fumes would be problematic.
• You want a machine that can run overnight unattended without requiring post-processing first thing in the morning.

Choose Resin If…

• You're printing tabletop miniatures, wargaming figures, or highly detailed display models where surface quality is paramount.
• You're a jeweler, dental professional, or product designer who needs accurate, smooth masters for casting or mold-making.
• You have a dedicated workspace with ventilation and are comfortable following basic chemical safety procedures.
• Your prints are predominantly small — resin machines shine on objects that fit within their build plate but lose their advantage on large items that require multiple prints and assembly.
• You already own an FDM printer and want to add a high-detail machine to your workflow without replacing your workhorse.

Many experienced makers eventually own both. An FDM printer handles structural prototypes, household fixtures, and large objects, while a resin printer handles anything that demands smooth surfaces and fine detail. If budget only allows one, however, the honest recommendation for most newcomers is to start with FDM. The workflow is gentler, the community is larger, the material flexibility is broader, and the skills transfer directly if you later add a resin machine. Resin rewards users who already know what they need it for and are prepared to commit to the post-processing discipline it requires.

Whichever technology you choose, proper maintenance habits make a significant difference in long-term print quality. The same attention to detail that keeps 2D printers performing well — as covered in our inkjet printer maintenance tips guide — applies equally to 3D printers: keep consumables properly stored, clean regularly, and address small problems before they become big ones.
