Soundbar Channel Configurations Explained: 2.0, 2.1, 3.1, 5.1 and More

If you've ever shopped for a soundbar and found yourself staring at numbers like 2.0, 2.1, 3.1, or 5.1.2, you're not alone. Understanding soundbar channel configuration is the single most important step you can take before buying — it determines how immersive your audio will be, how many physical speakers you need, and whether a system fits your room. This guide breaks down every common configuration in plain language so you can shop with confidence. For a deeper dive into pairing decisions, visit our soundbar channel configurations service page.

The numbers in a configuration label follow a simple pattern: the first digit counts full-range speakers (satellites and the soundbar bar itself), the second digit counts subwoofers, and a third digit — when present — counts upward-firing or overhead drivers for height audio. Once you internalize that pattern, every spec sheet makes immediate sense.

Understanding the Channel Number System

The surround sound channel notation used in consumer audio originated with home theater receivers and was later adopted by soundbar manufacturers. The notation is standardized enough that you can decode any soundbar spec by applying the same three-digit rule every time.

What Each Digit Means

The first digit represents the total number of full-range speaker channels. In a standalone soundbar, this usually refers to discrete driver clusters inside the bar itself — left, right, and optionally a dedicated center cluster. In a system with satellite speakers, it includes those too.

The second digit is always 0 or 1 in soundbar terms, and it tells you whether a dedicated low-frequency effects (LFE) channel — a subwoofer — is included. A 0 means the soundbar handles bass on its own; a 1 means there is a dedicated subwoofer, either wired or wireless.

The third digit, separated by a second decimal point (e.g., 5.1.2), counts upward-firing or overhead speakers that reproduce height cues for object-based formats like Dolby Atmos and DTS:X. This digit is 2 or 4 in consumer soundbars and is what separates a standard surround system from a true three-dimensional audio experience.

Active vs. Passive Channels

Not every channel number you see on a box represents a physically separate speaker. Some manufacturers use virtual channels — psychoacoustic processing that tricks your brain into perceiving sound coming from positions that don't have a dedicated driver. A soundbar marketed as "virtual 7.1" may still be a physical 2.0 bar. Look for language like "virtual surround" or "simulated" to distinguish real discrete channels from DSP trickery. Neither is inherently bad, but knowing the difference helps you set realistic expectations.

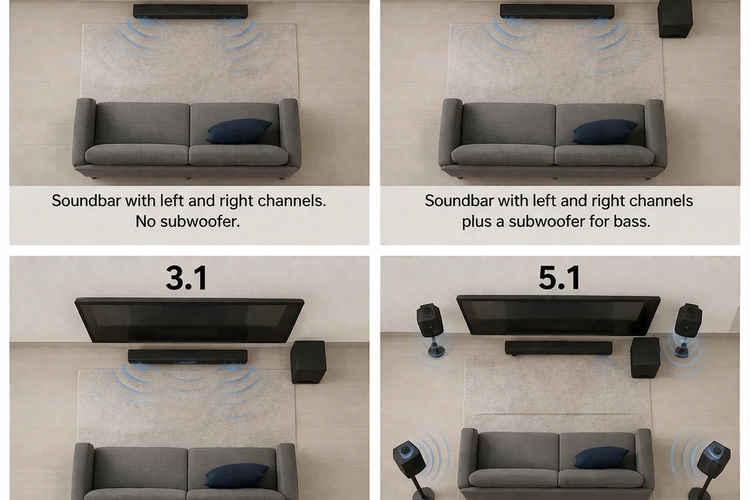

Stereo Configurations: 2.0 and 2.1

Stereo soundbar configurations are the starting point for anyone upgrading from built-in TV speakers. Even a basic 2.0 bar can transform a listening experience — read our breakdown of Soundbar vs TV Speakers to see exactly how much of an improvement you can expect.

The 2.0 Soundbar

A 2.0 soundbar contains two channel clusters — left and right — with no dedicated subwoofer. Everything, including bass, is handled by the drivers inside the bar. Modern 2.0 bars from premium brands squeeze in passive radiators and DSP-tuned bass boost to produce surprisingly deep low-end from a slim enclosure.

Best for: Bedrooms, small offices, and anyone who wants clean stereo sound without extra cables or floor space. Music listeners often prefer 2.0 because stereo source material is reproduced accurately without artificial upmixing.

Limitations: Bass output will always be constrained by cabinet volume. Very loud or low-frequency content (action movies, EDM) can sound thin compared to a 2.1 system.

The 2.1 Soundbar

The 2.1 configuration adds a dedicated subwoofer to the two-channel soundbar. In most consumer products, the sub is wireless — it pairs over a proprietary 5.8 GHz or similar band so you can place it anywhere in the room. The soundbar hands off frequencies below roughly 80–120 Hz to the sub, freeing up its own drivers to focus on midrange and treble clarity.

Best for: Living rooms up to around 300 square feet where punchy bass from movies and music is a priority. This is the sweet spot for most casual buyers — meaningful upgrade over 2.0 at a reasonable price. If you're comparing this against a full surround setup, our article on 2.1 vs 5.1 Soundbar walks through the trade-offs in detail.

Limitations: Still only two front channels. Surround effects are simulated, not reproduced by physical rear speakers.

Center Channel Configurations: 3.0 and 3.1

Adding a center channel to the configuration is a significant upgrade that many buyers overlook. It is also one of the most practical improvements you can make if you watch a lot of dialogue-heavy content.

Why the Center Channel Matters for Dialogue

In professional mixing, roughly 60–70% of a movie's audio is routed to the center channel. That's where actors' voices live. Without a dedicated center driver, those voices are phantom-imaged between left and right, which works well when you're sitting exactly in the middle but falls apart if you're off-axis — say, watching TV from a couch that's angled to one side.

A 3.0 soundbar includes discrete left, center, and right driver clusters inside the bar itself. A 3.1 adds a wireless or wired subwoofer on top of that. High-end 3.1 systems from brands like Sonos, Samsung, and Sony use a tweeter array in the center cluster specifically tuned for voice frequencies, making dialogue noticeably clearer even at lower volume levels.

Best for: Households with multiple seating positions, anyone who frequently watches dialogue-heavy content (dramas, news, documentaries), and users who want a meaningful audio upgrade without adding rear speakers.

Surround Configurations: 5.1 and Beyond

Once you step into five-channel territory, you enter true surround sound — audio coming from in front of and behind you simultaneously. This is where soundbar systems begin to genuinely challenge traditional A/V receiver setups in convenience, if not always in raw performance.

5.1 Explained

A 5.1 soundbar system includes five full-range channels (front-left, front-center, front-right, surround-left, surround-right) plus a dedicated subwoofer. In practice, the front three channels live inside the soundbar, while the surround-left and surround-right channels are handled by two small satellite speakers placed behind or to the sides of the listening position.

The satellite speakers may be wired or wireless depending on the product. Wireless rear satellites — included with systems like the Samsung HW-Q series or LG SP series — eliminate cable runs across the room entirely. If you want to add rear speakers to an existing soundbar, our guide on How to Add Rear Speakers to a Soundbar covers the options available.

Best for: Dedicated home theater rooms, living rooms larger than 400 square feet, and anyone who wants genuine surround sound without a full A/V receiver stack.

7.1 Soundbars

A 7.1 configuration extends 5.1 by adding two additional surround channels — typically side surrounds that fill the space between the front speakers and the rear surrounds. In a soundbar context, this usually means four satellite speakers (two side, two rear) plus the three-channel soundbar and subwoofer.

True 7.1 soundbar systems are less common because most manufacturers skip directly from 5.1 to 5.1.2 or 7.1.2 (adding height channels). If you see a product marketed as "virtual 7.1," verify whether it includes physical satellite speakers or relies entirely on DSP.

Height Channels and Dolby Atmos: x.x.2 and x.x.4

The third digit in a configuration label is what separates a conventional surround system from an object-based, three-dimensional audio experience. Formats like Dolby Atmos and DTS:X encode audio as objects in 3D space rather than fixed channels, and height speakers are what reproduce the overhead dimension of that soundfield.

Virtual vs. Physical Height Drivers

Physical height channels use upward-firing drivers built into the top of the soundbar — or in some premium systems, upward-firing modules on top of floor-standing satellite speakers. These drivers bounce sound off the ceiling and back down to the listening position, simulating overhead audio. The effect works best in rooms with flat ceilings between 8 and 11 feet high.

Virtual height processing — found in some 2.0 and 3.1 bars marketed as "Atmos-enabled" — uses HRTF (head-related transfer function) algorithms to simulate height cues through front-facing drivers alone. Results vary significantly by room acoustics and individual listener perception.

Common height configurations:

• 3.1.2 — Three front channels, subwoofer, two height channels. Popular mid-range Atmos tier.
• 5.1.2 — Full surround plus two overhead channels. Considered the sweet spot for Atmos soundbars.
• 5.1.4 — Five surround channels, subwoofer, four overhead channels. Found in flagship systems; requires ceiling bounce or dedicated ceiling speakers for best results.
• 7.1.4 — Maximum consumer configuration; four overhead channels plus full 7-channel surround.

For a thorough look at whether Atmos is worth the premium, see our article on What Is Dolby Atmos and Do You Need It in a Soundbar.

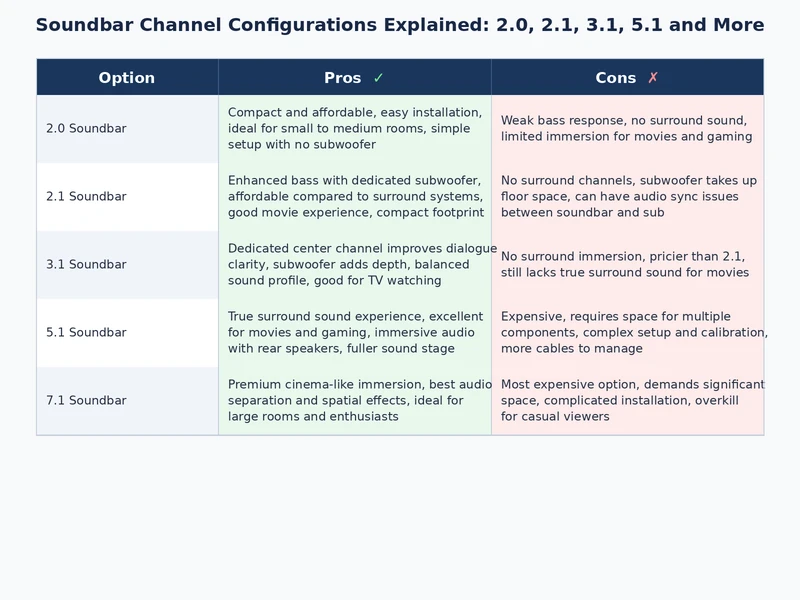

Side-by-Side Comparison Table

Which Soundbar Channel Configuration Is Right for You?

After reviewing every configuration, the practical question is how to apply this knowledge to your specific situation. Two factors dominate the decision: room size and the type of content you watch most.

Matching Configuration to Room Size

In a small room — a bedroom, a home office, or a studio apartment — a 2.0 or 2.1 soundbar is almost always the right choice. Surround speakers in a tight space can create an unpleasant, cluttered soundfield because the reflections arrive too quickly for your auditory system to process as separate spatial cues. The bass from a 2.1 sub will more than satisfy in a small room, and the money saved over a 5.1 system can go toward a higher-quality 2.1 bar.

Medium rooms — a typical living room of 200 to 400 square feet — are where the 3.1 and 5.1 configurations earn their keep. The center channel in a 3.1 bar makes a real, audible difference to dialogue clarity. A 5.1 system with physical satellites creates genuine surround envelopment that a single bar can only approximate.

Large, open-plan rooms with high ceilings are where 5.1.2 and above justify their cost. More air volume means more room for sound to develop, and ceiling bounce for Atmos height channels works best when the ceiling is at least 8 feet high and smooth. In very large rooms, a 7.1.4 flagship system with four satellite speakers prevents the rear and side surround coverage from thinning out.

Matching Configuration to Content Type

Content matters as much as room size. Music listeners — particularly those who primarily stream stereo music — gain little from surround configurations. Stereo content doesn't carry surround or height metadata, so the extra speakers sit idle or, worse, are fed artificially upmixed audio that doesn't always flatter the recording. A high-quality 2.0 or 2.1 soundbar with excellent stereo imaging will outperform a budget 5.1 system for music.

Movie and TV enthusiasts benefit most from 5.1 and above. Modern streaming services like Netflix and Disney+ deliver Dolby Atmos mixes on flagship content, and those mixes are engineered to make use of every channel in the soundbar configuration you've chosen. If your soundbar setup is solid but the connection between it and your TV isn't, make sure to read about HDMI ARC vs eARC for soundbars — the connection standard limits which audio formats can pass through.

Gamers occupy a unique position: modern game engines render spatial audio in real time, which makes height channels and wide surround genuinely useful for positional cues in competitive play. A 5.1.2 or 5.1.4 soundbar can provide directional awareness that a stereo bar simply cannot.

Whatever configuration you choose, proper placement and calibration are essential to realizing its potential. Our guide on How to Set Up a Soundbar for Best Sound Quality covers every positioning, EQ, and calibration step needed to get the most out of your system.
