What is DPI in Scanners and How Much Do You Need?

Last spring, I dug out a shoebox of old family snapshots and decided to digitize them. I set my scanner to 100 DPI — it seemed reasonable for on-screen viewing — and ended up with blocky, unusable files. A quick search for what is DPI in scanners turned a frustrating afternoon into a quick education. Whether you're archiving heirloom photos, filing paperwork, or digitizing film, DPI is the single most impactful setting you control. Browse Ceedo's scanner guides to find a model that fits your workflow, then use this guide to get the most from it.

What Is DPI in Scanners — and What Hardware Determines It

DPI stands for dots per inch. In scanning, it measures how many individual sample points the sensor captures along one linear inch of the original. A scan at 300 DPI captures 300 samples horizontally and 300 vertically, creating a grid of 90,000 data points per square inch. The higher the DPI, the more detail your digital file retains — but also the larger the file becomes.

According to Wikipedia's overview of dots per inch, the term is technically interchangeable with PPI (pixels per inch) in digital scanning contexts — both describe how densely information is sampled from the original source.

Understanding DPI in scanners also means knowing where that number comes from: the physical sensor inside the device, not just a software slider.

Optical vs. Interpolated DPI

Every scanner spec sheet lists two DPI numbers. Only one of them reflects real capability:

• Optical DPI — The true hardware resolution. This is how many physical sensor elements exist per inch. It sets a hard ceiling on genuine detail capture. This is the number that matters.
• Interpolated DPI — A software-manufactured figure. The driver inserts synthetic pixels between real ones to inflate the number on the box. It creates larger files without recovering any additional detail from the original. Ignore it entirely when comparing models.

A scanner marketed as "9600 DPI" with only 1200 optical DPI is generating 8400 DPI of educated guesswork. Always evaluate and set DPI based on optical resolution only.

CCD vs. CIS Sensors

The sensor technology inside your scanner directly determines its optical DPI ceiling and how it handles different types of originals:

For 35mm film or slide digitization, a CCD scanner with 2400–4800 optical DPI is non-negotiable. For scanning office paperwork or standard 4×6 prints to email, a CIS-based all-in-one at 600 DPI handles the work without the cost. Many all-in-one printers bundle surprisingly capable flatbed scanners — our breakdown of inkjet vs. laser printers covers which models balance print and scan performance best.

DPI in Practice: What Different Settings Actually Produce

Knowing the theory of what is DPI in scanners only goes so far. Here is what specific DPI values look like in real output quality, file size, and practical use — so you can set the right number before you press scan.

DPI by Scanning Task

• 75–150 DPI — Web thumbnails, rough reference copies. Tiny files, screen-only use. Never print from these.
• 200 DPI — Acceptable for faxing or emailing documents with large body text. Borderline for OCR on small fonts.
• 300 DPI — The industry standard for print-ready documents, reliable OCR, and general photo scanning. Covers the vast majority of everyday needs.
• 600 DPI — Recommended for photographs you plan to enlarge up to 2× original size. Captures fine texture, skin tone gradients, and printed halftone dots.
• 1200 DPI — Film negatives, slides, or original artwork destined for poster-sized output.
• 2400–4800 DPI — Professional archival work, grain-level 35mm film digitization, or microscopy imaging where maximum detail preservation is the priority.

A practical sizing rule: doubling DPI quadruples file size. A 300 DPI TIFF of an 8×10 photo runs roughly 20 MB. That same scan at 1200 DPI reaches 320 MB — sixteen times larger with no on-screen difference. Match DPI to your actual output, not the scanner's ceiling.

A useful buffer rule: scan at twice the DPI you intend to print at. Printing at 150 DPI (a common budget photo printer spec)? Scan at 300 minimum. This headroom handles cropping and minor digital adjustments without losing sharpness.

Pro tip: Always scan originals at the highest DPI you realistically need — you can downsample a high-res file later, but you can never recover detail from a low-res scan.

How to Choose and Set the Right DPI for Any Job

Choosing scanner DPI comes down to three variables: what you're scanning, what you'll do with the output, and how much storage space you can spare. This process makes the decision repeatable regardless of scanner brand or software.

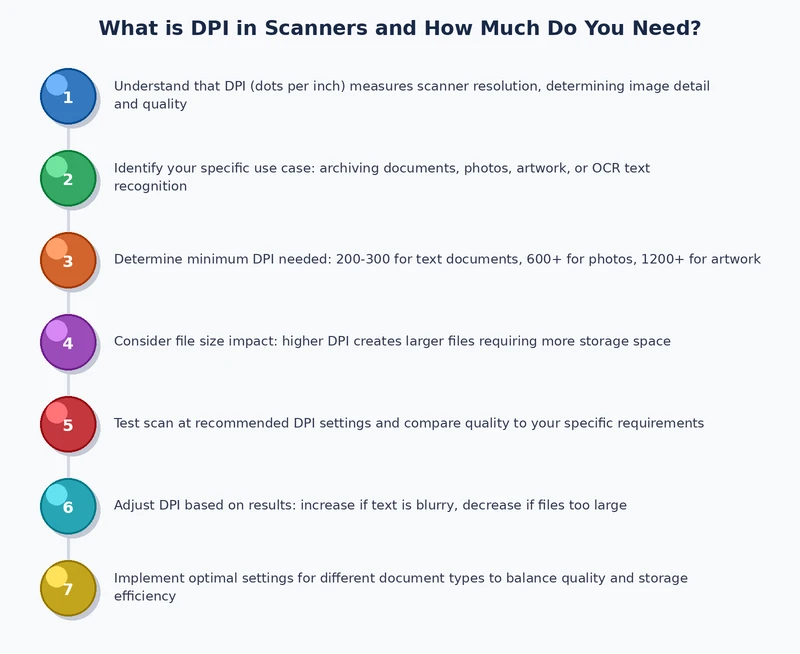

Step-by-Step DPI Selection

1. Identify the original. Text document, printed photograph, film negative, hand-drawn illustration, or receipt? Each has a different detail density that sets a floor on useful DPI.
2. Define the output purpose. On-screen only, print, OCR processing, long-term archival storage, or large-format reproduction?
3. Check your scanner's optical DPI spec. Setting software DPI above this value generates interpolated data — not genuine detail. It wastes storage with no quality return.
4. Open scanner software. Use the manufacturer's app (Epson Scan 2, HP Smart, Canon IJ Scan Utility) or your OS built-in (Windows Scan on Windows, Image Capture on macOS).
5. Select the correct scan mode. "Document," "Photo," or "Film/Positive" modes apply appropriate default DPI and color bit depth. Override manually if needed.
6. Set DPI explicitly. For a 4×6 photo you want to print at 8×12 inches (a 2× enlargement), 600 DPI is correct. For a text-only document you're filing as PDF, 300 DPI is sufficient.
7. Run a preview scan. Confirm the original is flat, properly aligned, and free of shadows or dust before committing to the full scan.
8. Choose the right output format. TIFF for lossless archival, JPEG at 85–90% quality for sharing or email, PDF for multi-page documents with searchable text.

When to Push DPI High — and When to Keep It Low

Scanner DPI is not a "higher is always better" setting. Knowing when resolution genuinely helps your output — and when it just bloats file sizes and slows down your workflow — is part of using any scanner intelligently.

Use Cases That Demand High DPI

• 35mm film and slides — Require at least 2400 DPI to resolve grain-level detail; 4000 DPI is the standard for professional digitization services.
• Artwork and hand-drawn illustration — Fine pencil linework or ink crosshatching benefits from 600–1200 DPI to preserve stroke quality and tonal range.
• Legal and historical documents — Archival work for libraries, law firms, or genealogy research typically warrants 400–600 DPI for long-term readability.
• Large-format printing — Enlarging a 4×6 photo to 16×24 inches requires approximately 1200 DPI at the source to maintain acceptable print sharpness at the output size.
• Forensic or scientific imaging — Any context where maximum captured detail may be examined later at high magnification justifies scanning at the optical DPI maximum.

When Lower DPI Is the Better Choice

• Email attachments or web uploads — 150 DPI is sufficient and keeps file sizes under control; recipients see no quality difference on-screen.
• Office document filing — 200–300 DPI creates readable, searchable PDFs without filling shared drives or cloud storage unnecessarily.
• High-volume batch scanning — Speed becomes the priority; 200 DPI cuts scan time by 2–3× compared to 600 DPI for the same stack of pages.
• Social media sharing — Platforms compress uploaded images aggressively; scanning above 300 DPI provides no visible benefit once the platform processes the file.

Keeping Your Scanner in Peak Condition

A well-maintained scanner at 300 DPI consistently outperforms a dirty, uncalibrated one at 1200 DPI. Physical maintenance is the fastest, cheapest way to improve scan quality — and it takes fewer than ten minutes.

Cleaning the Glass

Dust, fingerprints, and smudges on the scan bed glass scatter light and create artifacts that no post-processing can fully remove. Even a single dust particle at 600 DPI produces a visible streak across dozens of pixels.

• Power off and unplug the scanner before cleaning.
• Use a lint-free microfiber cloth lightly dampened with 70% isopropyl alcohol — never spray liquid directly onto the glass.
• Wipe in a single direction across the full length of the glass; avoid circular motions that redistribute debris.
• Clean the underside of the lid and any ADF feed rollers if your model includes a document feeder.
• Allow the surface to air dry fully before closing the lid and powering back on.

For a step-by-step walkthrough including how to handle scratched glass or stubborn adhesive residue, see our guide on how to clean the scanner glass without damaging the surface coating.

Calibration and Driver Upkeep

Sensor response can drift over time, affecting color accuracy and tonal range in ways that feel identical to a resolution problem — scans look soft or discolored even at high DPI.

• Run the built-in calibration routine from the scanner driver every few months; most manufacturers include this in the software interface.
• For professional color reproduction work, use an IT8 calibration target with ICC profile software (ColorThink, ArgyllCMS) for accurate color matching.
• Keep scanner drivers and firmware updated — manufacturers regularly release improvements that affect sensor accuracy and software stability.
• If your all-in-one scanner stops responding while the printer still works, the problem is almost always a driver conflict or USB-related software issue rather than a hardware failure. Our troubleshooting walkthrough for HP scanner not working but printer is covers the most common fixes step by step.

When Your Scans Still Look Wrong: Diagnosing DPI Problems

Setting the correct DPI is necessary but not always sufficient. When output quality falls short even with the right settings, the cause is almost always one of a handful of recurring hardware or software issues.

Common Problems and Quick Fixes

• Blurry output despite a high DPI setting
  • Confirm the original is pressed completely flat — even a 1 mm gap causes significant blur at 600 DPI and above due to the narrow depth of field on CIS sensors.
  • Clean the glass first; dust scatter degrades effective resolution more than most users expect.
  • Verify you are setting optical DPI, not interpolated, in the driver software.
• Vertical streaks or bands running the length of the scan
  • Almost always caused by a dirty sensor strip or debris on the glass edge — clean the full width of the scan bed including the far edges.
  • If streaks persist after thorough cleaning, the sensor coating may be scratched; contact the manufacturer for service options.
• Colors appear washed out or have an unexpected yellow or green cast
  • Run the scanner's color calibration routine from the driver; this resolves most drift-related color shifts.
  • Check that automatic color correction or auto-exposure isn't over-processing the image — disable it and set levels manually to confirm.
• File sizes far larger than expected
  • Check whether interpolated DPI was accidentally set, or whether color bit depth is set to 48-bit instead of the standard 24-bit.
  • Switch output format from TIFF to JPEG at 85–90% quality for non-archival work to reclaim storage immediately.
• OCR returns garbled or missing characters
  • Scan at 300 DPI minimum — 200 DPI frequently fails on fonts below 10 pt.
  • Ensure the page is not skewed more than 3–5 degrees; most OCR engines fail reliably on tilted input even when DPI is adequate.

Key Takeaways

• DPI measures how many sample points your scanner captures per inch — optical DPI reflects true hardware resolution, while interpolated DPI is a marketing figure that adds file size without adding detail.
• 300 DPI covers most everyday document and photo needs; use 600 DPI for photos you plan to enlarge, and 1200–4800 DPI only for film, slides, or permanent archival preservation.
• Clean glass and regular calibration matter as much as any DPI setting — physical maintenance is the fastest way to improve scan quality without spending money on new hardware.
• Doubling DPI quadruples file size, so match your scanner DPI to your actual output destination rather than defaulting to the maximum.
