What Is HDMI ARC and How to Use It With a Soundbar

Ever wonder why your living room still sounds flat even after you've added a soundbar? More often than not, the culprit is a suboptimal connection — not the hardware itself. Understanding what is HDMI ARC soundbar technology and how to use it properly can deliver a dramatic improvement without spending another dollar on gear.

HDMI ARC (Audio Return Channel) is a built-in feature on most modern TVs and soundbars that carries audio in both directions over a single HDMI cable. Every source plugged into your TV — streaming apps, a cable box, a gaming console — routes through the soundbar automatically. One cable, one remote. Browse our full soundbars collection to find a model with proven ARC support for your TV brand.

What Is HDMI ARC and How Does It Work With a Soundbar?

HDMI ARC was introduced with the HDMI 1.4 specification and has been standard on consumer televisions and soundbars ever since. On your TV, the ARC-enabled port is clearly marked — look for a port labeled "ARC" or "HDMI 1 (ARC)." Your soundbar will have a matching port labeled "HDMI OUT (ARC)."

A standard HDMI cable carries video and audio from a source device to your TV. ARC reverses the audio half of that signal, sending the TV's audio back down the same cable to the soundbar. The practical result: every source your TV receives plays through the soundbar automatically, using just one cable connection instead of a separate optical or analog run.

ARC vs eARC: What's the Difference?

HDMI 2.1 introduced eARC (Enhanced Audio Return Channel), which expands audio bandwidth from roughly 1 Mbps on standard ARC to 37 Mbps. That gap matters: standard ARC can only carry compressed formats like Dolby Digital 5.1 and DTS. eARC supports uncompressed audio including Dolby TrueHD, DTS-HD Master Audio, and full object-based Dolby Atmos.

If your TV and soundbar both carry the eARC label, the connection upgrades automatically — no extra configuration needed. According to Wikipedia's HDMI overview, eARC also mandates CEC support, which resolves some of the pairing reliability issues seen with older ARC implementations. Standard ARC gear still benefits from simplified cabling; it just won't deliver lossless audio.

CEC and One-Touch Control

CEC (Consumer Electronics Control) is the protocol that makes HDMI ARC genuinely convenient. When CEC is active on both your TV and soundbar, pressing volume up on your TV remote adjusts the soundbar's output. Turn on the TV and the soundbar powers on with it. This "one-touch" experience is what converts most people into dedicated ARC users.

Every major TV brand has rebranded CEC under a proprietary name: Samsung calls it Anynet+, LG uses SimpLink, Sony uses Bravia Sync, and Panasonic uses VIERA Link. They're all the same underlying protocol — you just need to find the right toggle in your specific TV's settings menu.

Real-World Setups Where HDMI ARC Shines

Living Room TV and Soundbar

The living room scenario is the most common and the most straightforward. Your TV receives input from a streaming stick, cable box, or game console through its HDMI inputs, then sends audio back to the soundbar via ARC. Everything you watch plays through the soundbar. Your TV remote controls the volume. No app, no extra remote, no manual input switching required.

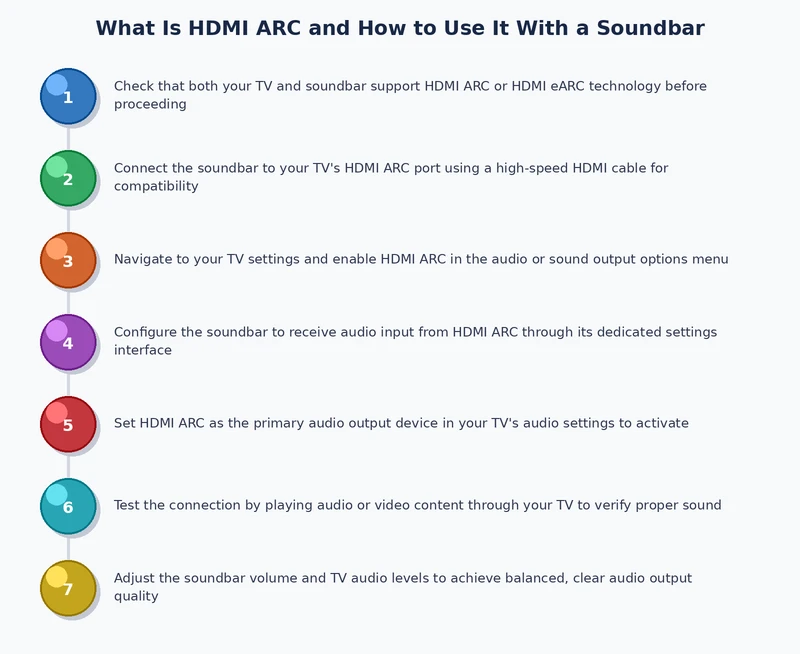

Setup takes under five minutes:

• Connect the TV's ARC-labeled HDMI port to the soundbar's HDMI OUT (ARC) port with a standard HDMI cable
• In the TV's audio settings, set output to "External Speaker," "HDMI ARC," or equivalent
• Enable CEC in the TV's settings menu (Anynet+, SimpLink, Bravia Sync, or similar depending on your brand)
• Enable CEC or "HDMI Control" on the soundbar as well — both devices need it active
• Play any content and confirm audio is coming from the soundbar, not the TV's internal speakers

For brand-specific steps, our guide on how to connect an LG soundbar to your TV covers the exact menu locations for CEC and ARC configuration, including model-specific variations.

Home Office and Multi-Source Setups

HDMI ARC works just as well in compact home office environments. A monitor with an ARC-enabled HDMI port paired with a slim soundbar means any device connected to the monitor — a laptop docked via HDMI, a desktop PC, a game console — routes audio automatically without manually switching outputs in Windows or macOS settings.

This matters most when you regularly switch between devices throughout the day. ARC handles the switching in the background, so the soundbar always follows whatever source the monitor is displaying. It eliminates the per-device audio configuration that makes multi-source desks frustrating to manage.

Budgeting for an HDMI ARC Soundbar Setup

Price Tiers and What You Get

HDMI ARC support is not a premium feature — it's included on nearly every soundbar available today. What the price actually buys is audio quality, speaker configuration, and extra features like built-in subwoofers or height channels for Atmos.

If you're still deciding between a soundbar and a full surround system, our comparison of soundbar vs home theater system breaks down the trade-offs in audio performance, cost, and room requirements.

Hidden Costs to Watch For

The ARC connection itself adds zero cost — any standard HDMI cable you already own will work. The one exception is eARC: unlocking its full lossless bandwidth requires an Ultra High Speed HDMI cable rated for HDMI 2.1. These are clearly labeled at retail and typically cost $10–$20 more than a basic cable.

Also watch for older TVs that predate HDMI 1.4, which have no ARC port at all. In that case, optical audio (TOSLINK) is the best wired alternative, though it can't carry uncompressed or object-based audio formats.

Pro Tips for Getting the Best From HDMI ARC

Audio Format Settings

The right TV audio settings make or break what HDMI ARC actually delivers. Most of these options are buried in advanced menus, but they're worth finding:

• Set audio output to "Bitstream" or "Pass-Through" — tells the TV to forward the original audio format rather than re-encoding it as stereo PCM, which strips surround information
• Turn TV speakers off explicitly — some TVs output audio from both internal speakers and ARC simultaneously after a soundbar is connected, creating an audible echo
• Enable "Dolby Digital" or "Dolby Digital Plus" output — on many TVs this toggle is hidden under advanced audio settings and is off by default
• Disable TV-side audio processing — features like "Sound Enhancement" or "AI Sound" applied at the TV level interfere with the soundbar's own DSP and produce worse results than simply passing audio through clean

Getting the Most From One Remote

CEC is powerful but can occasionally produce unwanted behavior — a soundbar waking up when you plug in a device, for instance. A few adjustments help:

• On Samsung TVs, Anynet+ sometimes requires a full power cycle — unplug both the TV and soundbar for 30 seconds — to reset the CEC pairing correctly
• If volume control works but auto power-on doesn't, check the soundbar's "Auto Power" or "HDMI Standby" setting separately; many soundbars treat these as independent CEC functions with their own toggles
• If CEC causes unintended device wake-ups, most TVs allow you to disable specific CEC functions (auto power-on, for example) while keeping volume control active

Solving Common HDMI ARC Soundbar Problems

No Sound or Intermittent Audio

No audio through the soundbar after connecting via ARC is the most commonly reported issue — and it almost always traces back to one of these causes:

• Wrong HDMI port used: Only the port marked "ARC" on your TV carries the return channel signal. A standard HDMI port displays a picture but sends no audio back to the soundbar.
• CEC not enabled on both devices: The audio routing doesn't activate unless CEC is enabled on both the TV and the soundbar. Confirm both are on.
• TV audio output still set to internal speakers: Connecting the soundbar doesn't automatically redirect audio. The TV's audio output setting must be manually changed to "External Speaker" or "HDMI ARC."
• HDMI handshake failure: Unplug both devices from power completely, reconnect the HDMI cable, then power the TV on first, the soundbar second.

Intermittent audio dropouts during playback almost always point to a faulty HDMI cable. Swap the cable before replacing any hardware — it's the lowest-cost fix and resolves the majority of dropout complaints.

CEC Control Not Working

If your TV remote doesn't control soundbar volume after setup, work through this checklist:

• Verify the setting name for your TV brand: Anynet+ (Samsung), SimpLink (LG), Bravia Sync (Sony), VIERA Link (Panasonic), EasyLink (Philips)
• On the soundbar, the equivalent setting may be labeled "HDMI Control," "Control for HDMI," or simply "CEC" — consult the manual for the exact name
• Factory reset the soundbar if CEC was previously working and stopped without an obvious cause — firmware corruption can silently disable CEC handling
• Check for firmware updates on both devices; CEC bugs are frequently reported and patched, and a missed update is often the root cause of newly developed issues

Keeping Your HDMI ARC Setup in Peak Condition

Cable and Port Care

HDMI ports are rated for thousands of insertion cycles, but physical habits still matter. Yanking a cable at an angle strains both the connector and the port. Always insert and remove HDMI cables straight — directly in and out without lateral force. If the soundbar is installed in a tight wall-mount bracket where cable angle is unavoidable, a right-angle HDMI adapter reduces stress on the port significantly.

Dust accumulates inside unused ports and can cause intermittent contact issues over time, particularly in living rooms near carpet or fireplaces. A quick blast of compressed air into the port every few months keeps the contacts clear.

Firmware Updates

CEC compatibility and ARC reliability improve with firmware updates more reliably than almost any other aspect of home audio hardware. Manufacturers routinely patch handshake bugs, fix audio dropout issues, and add format support through software. Keep both devices current:

• TV: Settings → Support → Software Update (exact path varies by brand and model)
• Soundbar: Most current models update via their companion app — Sony Music Center, LG ThinQ, Samsung SmartThings

If an ARC connection that previously worked flawlessly develops dropouts or CEC stops responding, a pending firmware update on either device is the first thing to check before suspecting cable or hardware failure.

Final Thoughts

Now that you understand what is HDMI ARC soundbar technology and how to configure it correctly, the next step is simple: locate the ARC port on your TV, connect it to the soundbar's HDMI OUT (ARC) port with a standard cable, enable CEC on both devices, and set your TV's audio output to external speaker. That's the entire setup. If you're still choosing a soundbar, explore our soundbars collection — every listing includes full ARC and eARC compatibility details so you can match the right model to your TV and content habits.
