How to Fix Paper Jams in Your Document Scanner

Few things disrupt a productive workflow faster than a paper jam. When you need to fix a paper jam in your document scanner, the good news is that most jams are caused by simple, preventable issues — and most can be resolved in minutes without a technician. Whether you're using a desktop ADF scanner for daily document digitization or a portable sheetfed model for occasional use, understanding how jams happen and how to clear them safely will save you time, frustration, and potential repair costs.

Before reaching out to support or assuming your device is broken, walk through this guide. We'll cover the most common causes of scanner paper jams, step-by-step clearing procedures, and what you can do to prevent them from coming back. If you're also dealing with other hardware quirks, our guide on how to maintain your scanner for long-term performance covers the full spectrum of upkeep tasks that keep ADF and flatbed models running reliably.

Why Paper Jams Happen in Document Scanners

Document scanners — particularly those with an Automatic Document Feeder (ADF) — use a series of rubber rollers to pull sheets through an optical scanning path. Any disruption to smooth paper movement causes the device to halt and report a jam. Understanding root causes makes clearance much easier.

Paper-Related Causes

The majority of jams trace back to the paper itself, not the scanner. Common paper-side culprits include:

• Mixed paper sizes or weights in a single batch — the rollers calibrate for the first sheet and struggle with anything thicker or narrower.
• Curled, folded, or wrinkled documents — even a slight curl at a page corner can catch on the entry guides.
• Staples, paper clips, or sticky notes left on documents — these are among the most damaging causes, as metal fasteners can score the rollers permanently.
• Overfilled input tray — every ADF has a rated sheet capacity (typically 20–100 sheets). Exceeding it causes multiple pages to feed simultaneously, known as a multi-feed jam.
• Glossy or coated paper that exceeds the scanner's media weight rating, or very thin paper (under 52 g/m²) that wrinkles under roller pressure.

According to ISO paper quality standards, document scanners are typically rated for 60–120 g/m² paper. Operating outside that range significantly raises jam risk.

Hardware and Sensor Issues

When paper preparation isn't the issue, the scanner's internal components may be at fault:

• Worn pickup rollers — rubber degrades over time and loses grip, causing slippage or multi-feeds rather than clean single-sheet pickup.
• Dirty separation pad — the pad that prevents multiple sheets from feeding together becomes ineffective when coated with paper dust or debris.
• Paper dust buildup on sensors — optical sensors that detect paper position can misfire if they're obscured by accumulated dust, triggering false jam errors.
• Misaligned paper guides — if the side guides are set too wide or too narrow for the document, the paper skews as it feeds and gets caught.
• Firmware bugs — some models have known firmware issues where the scanner reports a jam without one being present. A firmware update resolves these.

Before You Try to Clear a Jam

Rushing to pull jammed paper out is the fastest way to cause secondary damage. Before touching anything, follow these precautions:

1. Power off the scanner completely. Do not simply pause it from software. Press the physical power button and wait for the device to fully shut down. This prevents the rollers from attempting to continue feeding when you open the mechanism.
2. Unplug the USB or power cable if the jam is severe or if you need to access internal components beyond the standard ADF cover.
3. Never force paper. If a sheet doesn't move with light, steady pressure, stop immediately. Forcing it risks tearing the sheet and leaving paper fragments inside the feed path, which causes additional jams.
4. Note the jam location before you open anything. Most scanners have a multi-section paper path — input tray, pre-scan rollers, scanning zone, exit rollers, and output tray. Knowing where the paper stopped helps you open the right access panel.

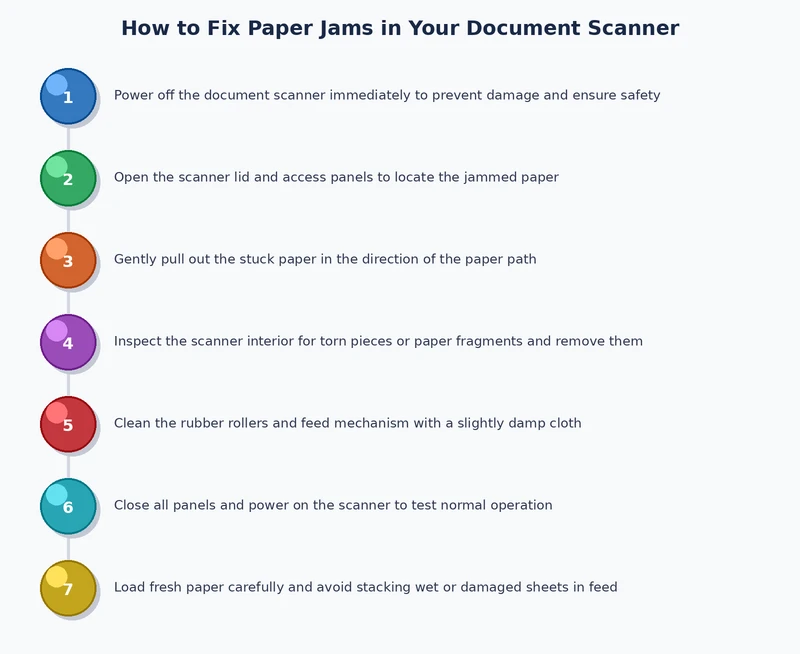

How to Fix a Paper Jam: Step-by-Step

Clearing an ADF Jam

ADF scanners are the most common type to experience jams because they feed dozens or hundreds of pages automatically. Here's the standard clearance procedure that works for most brands including Fujitsu, Brother, Canon, Epson, and HP:

1. Open the ADF cover. Most models have a latch or button that releases the top panel. Open it slowly to avoid stressing any paper still partially in the path.
2. Remove all paper from the input tray before attempting to extract the jammed sheet. This prevents you from accidentally feeding more paper into the obstruction.
3. Locate the jammed sheet. If it's in the pre-scan section, gently pull it backward (toward the input tray) rather than forward. Pulling toward the scanning glass risks leaving torn fragments near the imaging sensor.
4. If the sheet is near the exit rollers, pull it gently forward and out of the output tray direction. Use both hands and apply pressure as close to the jam point as possible to prevent tearing.
5. Check for torn fragments. Even a small scrap of paper left inside will cause the next scan to jam. Use a flashlight to inspect the entire paper path before closing the cover.
6. Close the ADF cover firmly until it clicks. An improperly closed cover will cause the scanner to report a door-open error rather than a jam, which can be confusing.
7. Power on, reload paper, and run a test scan with a single test page before loading a full batch.

Clearing a Flatbed or Sheetfed Jam

Flatbed scanners rarely experience true paper jams since documents rest statically on the glass. However, sheetfed-only scanners (like many portable models) can jam at entry or exit slots:

1. Turn off and unplug the device.
2. If the paper is partially inserted and hasn't started feeding, simply pull it straight back out from the entry slot.
3. If the paper is mid-feed, look for an access door or flip-open back panel — many sheetfed scanners open fully to expose the paper path.
4. Pull the jammed sheet slowly in whichever direction offers the least resistance. On sheetfed portables, this usually means pulling toward the exit.
5. Inspect the rollers visually for torn paper scraps, then wipe them with a lint-free cloth dampened with isopropyl alcohol before your next scan.

Common Jam Scenarios and Solutions

Not all jams feel the same. The table below maps typical jam symptoms to their most likely causes and recommended fixes, helping you diagnose and resolve the issue faster.

If you're comparing scanner types and wondering which is less prone to feeding issues overall, our document scanner vs multifunction printer comparison breaks down reliability and paper handling differences between dedicated scanners and all-in-one devices — a useful read if you're weighing your next purchase.

How to Prevent Paper Jams Going Forward

Once you've resolved a jam, the priority shifts to making sure it doesn't happen again. Most recurrent jam problems are preventable with a few consistent habits and a light maintenance routine.

Preparing Your Documents

• Fan pages before loading. Hold the stack at both ends and flex it gently back and forth, then riffle through the pages. This separates sheets that may have stuck together from humidity or sitting in a stack too long.
• Align edges on a flat surface so all sheets are flush before placing them in the input tray. Uneven edges cause the ADF pickup roller to grip different points on different sheets, leading to skew and jams.
• Remove all fasteners. Staples, paper clips, binder clips, and sticky notes must come off before scanning. Consider keeping a small staple remover next to your scanner as a habit.
• Don't scan damaged documents directly. Pages with tears, holes, or deep folds should be photocopied first — scan the copy, not the original — or placed in a document carrier sleeve if your scanner supports one.
• Respect the capacity rating. If your ADF is rated for 50 sheets, load 40. Operating at maximum capacity consistently accelerates roller wear and increases multi-feed risk.

Roller and Feed Path Maintenance

Rubber rollers are consumable components. On a high-volume scanner, they may need replacement every 100,000 pages or so. On a light-use desktop scanner, they can last years — but they still need periodic cleaning:

• Clean rollers monthly (or every 5,000 pages) with a lint-free cloth lightly dampened with isopropyl alcohol (70% IPA). Wipe each roller while rotating it manually to clean the full circumference. Allow it to dry completely before scanning.
• Clean the separation pad at the same time. This small rubber pad sits opposite the pickup roller and prevents multi-feeds. Dirt buildup makes it less effective.
• Use your scanner's built-in cleaning function if it has one — many Fujitsu ScanSnap and Brother ADS models include a cleaning sheet mode in their driver software.
• Keep the scanner in a clean, low-humidity environment. Excess moisture causes paper to clump; excessive dryness causes static. A stable office environment (around 50% relative humidity) is ideal.
• Order a roller replacement kit proactively when your scanner reports that the roller count is approaching its rated limit. Most major brands sell official kits. Replacing them before they fail is far easier than clearing the chronic jams worn rollers cause.

For a more complete maintenance checklist — including glass cleaning, calibration, and software upkeep — see our scanner maintenance tips guide, which covers routine tasks for both ADF and flatbed models.

When to Call Support or Replace Parts

Most paper jams are DIY-fixable, but there are situations where professional intervention or parts replacement is the right call:

• Jams persist after thorough cleaning and roller replacement. At this point, internal mechanical components — gears, springs, or the paper path frame itself — may be damaged.
• The ADF cover won't close properly after clearing a jam, suggesting a hinge or latch was damaged during a forceful paper pull.
• You hear grinding or clicking noises during feeding, which typically indicate a gear-tooth issue or a foreign object lodged deep in the mechanism.
• Error codes that won't clear even after clearing the jam and restarting. Look up the specific code in your manual or manufacturer's support portal — some error codes indicate sensor failure rather than paper presence.
• The scanner is older and replacement parts are unavailable. At this stage, it may be more economical to replace the unit. Our scanner price guide by use case can help you figure out what to spend on a replacement.

When contacting manufacturer support, have your model number ready and document the error code your scanner displayed. Photos or short video clips of the symptom — such as the paper path skewing — will help support representatives diagnose the issue faster and avoid generic troubleshooting steps you've already tried.

If you'd like professional help diagnosing or resolving a recurring jam, our document scanner paper jam service page has additional resources and support options tailored to specific scanner models.
