How to Laminate Cardstock and Heavy Paper Without Jamming

Learning how to laminate cardstock without jamming your machine is one of those skills that separates frustrated beginners from confident users. Cardstock and heavy paper present a unique challenge: they're thicker and stiffer than standard 20 lb copy paper, which means most laminators need a little extra attention to handle them cleanly. Feed them wrong, use the wrong pouch, or skip the warm-up, and you're fishing a crumpled sheet out of the rollers with a paperclip. Follow the right technique, and even 110 lb cardstock goes through like butter. This guide covers everything you need — from choosing the right pouch thickness to clearing a jam when it happens. You can also visit our laminate cardstock and heavy paper service page for a quick reference overview.

Why Cardstock and Heavy Paper Cause Jams

Standard office paper weighs around 20 lb bond (75 gsm). Cardstock starts at 65 lb cover (175 gsm) and goes up to 110 lb cover (300 gsm) or beyond. That difference in thickness and rigidity changes how the laminator's rollers grip and pull the material through. Most consumer laminators are designed with standard paper in mind, and when you introduce a stiff sheet that doesn't flex easily, it fights the rollers instead of cooperating with them.

The Thickness Problem Explained

When a sheet enters the laminating rollers, it needs to bend slightly to conform to the roller gap. Standard paper does this effortlessly. Cardstock resists the bend, which can cause the leading edge to catch, buckle, or push back against the rollers rather than feeding through smoothly. The result is a jam — sometimes a minor skew, sometimes a full-on accordion fold baked into the laminate.

The combined thickness of your document plus the pouch film compounds the problem. A 3 mil pouch adds roughly 6 mil of total film to your document. A 5 mil pouch adds 10 mil. Stack that on top of 10–12 mil of cardstock, and you're approaching the maximum clearance of many entry-level laminators.

Pouch Mismatch and Roller Pressure

Using a pouch that's too thick for your machine's rated capacity is the single most common cause of cardstock jams. Every laminator has a maximum document thickness it can handle. If you're using a 5 mil pouch on thick cardstock with a machine that's only rated for 5 mil total, you'll hit the limit fast. For heavy paper, you often need to reduce pouch thickness to stay within spec, which is counterintuitive to many users. If you're unsure about the difference between film types, our comparison of thermal laminating film vs pressure-sensitive film explains the distinctions clearly.

Choosing the Right Laminating Pouch for Heavy Paper

Pouch selection is arguably more important than machine selection when it comes to laminating cardstock. The wrong pouch means jams, bubbles, and uneven seals. The right pouch means clean, professional results every time.

Mil Thickness Guide for Cardstock

Pouch thickness is measured in mils (thousandths of an inch) per side. A "3 mil pouch" has 3 mil of film on each side, totaling 6 mil of added material. Here's how to match pouch thickness to your cardstock weight:

As a general rule: the thicker your cardstock, the thinner your pouch should be. For cardstock heavier than 80 lb cover, stick to 3 mil pouches at most. For very heavy stock (100 lb and above), some users have success with 1.5 mil or 1.7 mil pouches, which are commonly labeled as "economy" pouches.

Pouch Size and Carrier Sheets

Always use a pouch slightly larger than your document — at least 1/4 inch on all sides. This creates a sealed border that prevents delamination and also helps the leading edge feed cleanly into the rollers. For oddly sized cardstock, a letter or legal size pouch that you trim after laminating works better than trying to find an exact-fit pouch.

A carrier sheet (sometimes called a laminating sleeve or pouch carrier) is one of the most underused tools for laminating heavy paper. It's a folded, non-stick cover sheet that you place your filled pouch inside before feeding. It protects the rollers from adhesive overflow and provides a stiffer, more uniform leading edge that feeds much more smoothly. If you're having repeated jams with cardstock, a carrier sheet often solves the problem immediately. Some laminators include one in the box; others sell them separately.

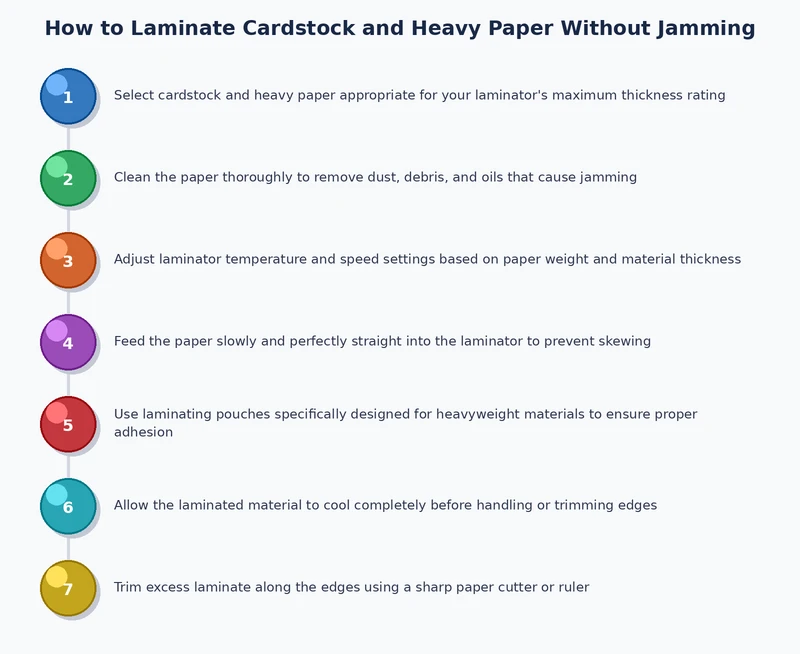

Step-by-Step: How to Laminate Cardstock Without Jamming

The process for laminating heavy paper differs from standard paper lamination in a few key ways. Paying attention to each step reduces jam risk dramatically.

Preparing Your Machine

Start by giving your laminator a full warm-up. Most machines signal readiness with a light or indicator, but for cardstock, let it warm an additional 2–3 minutes beyond that signal. Extra heat means the film bonds more aggressively to the cardstock surface, reducing the likelihood of bubbles and delamination. Run a sacrificial sheet of plain paper through first — this cleans the rollers and verifies the machine is at operating temperature before your actual cardstock goes in.

If your laminator has a speed setting, set it to the slowest available option. Slower speed gives the heat more dwell time on the document, which is critical for thick material. Fast-feed settings are designed for high-volume runs of thin paper, not for cardstock.

Proper Feeding Technique

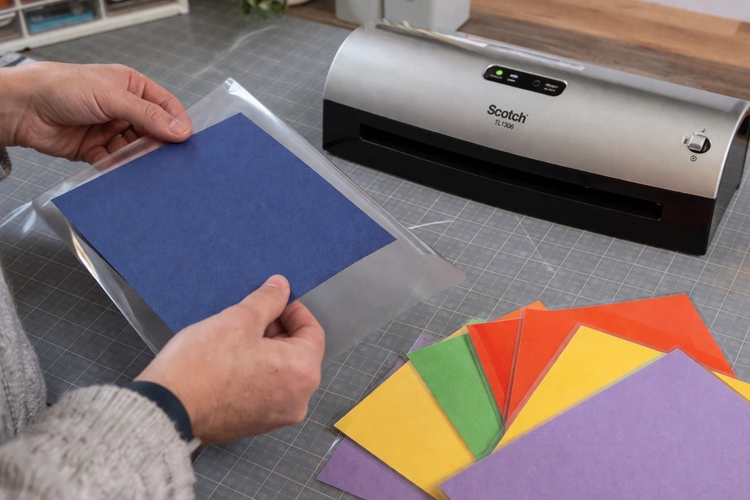

Place your cardstock inside the pouch with the sealed edge of the pouch facing the feed slot — this is the edge that enters first. The sealed edge is stiffer than the open edge and provides a clean leading surface for the rollers to grip. If you're using a carrier sheet, place the pouch inside the carrier with the sealed pouch edge at the carrier's fold.

Feed the pouch straight into the slot, centered left-to-right. Don't push it — let the rollers pull it in on their own. Hold the trailing edge lightly to keep the document from skewing, but release as soon as the rollers take hold. Never force a sheet that isn't feeding — pull it back gently and re-feed. Forcing almost always results in a jam or roller damage.

After the pouch exits, place it on a flat surface immediately and weight it down with a heavy book for 60–90 seconds. Cardstock has more memory than thin paper and will curl as it cools if not held flat.

Laminator Settings That Matter for Heavy Paper

Not all laminators give you granular control over temperature and speed, but if yours does, these settings make a measurable difference with heavy paper.

Temperature and Speed Settings

Most laminators run between 250°F and 310°F (121°C–154°C). For cardstock lamination, aim for the higher end of your machine's range — typically 285°F–300°F for 3 mil pouches. Lower temperatures don't fully activate the adhesive layer on the pouch film, leading to bubbles, lifted edges, or the dreaded "cloudy" appearance on dark cardstock.

If your laminator has dedicated document-type settings (like "photo," "document," "card"), the "card" setting usually applies higher heat and slower speed simultaneously — use it for cardstock whenever it's available. Some mid-range and professional machines also offer a hot/cold switch; make absolutely sure you're in hot mode, not cold. Cold lamination is for pressure-sensitive pouches only and won't bond thermally activated film to cardstock at all. For a deeper look at pouch types, see the differences between thermal laminating pouches vs pressure-sensitive pouches.

According to the National Institute of Standards and Technology, material bonding in thermoplastic films is directly affected by both temperature uniformity and dwell time — which is why slower feed rates and fully pre-heated rollers are so critical for achieving clean, bubble-free lamination on thick substrates.

How to Clear a Jam When It Happens

Even with perfect technique, jams happen. The key is clearing them without damaging your rollers or the partially laminated document.

Using the Reverse Function

Many laminators include a reverse button or switch specifically for clearing jams. If yours has one, use it immediately when you feel resistance or see the document stop moving. Press reverse and allow the machine to back the jammed sheet out slowly. Don't hold the reverse button for more than 5–10 seconds at a time — if the sheet doesn't come out, stop, let the machine cool slightly, and try again. Forcing a reverse on a fully jammed sheet can damage the rollers.

Manual Clearing Without Damaging Rollers

If the reverse function doesn't work, power off the laminator and allow it to cool for 10–15 minutes. As the rollers cool, the adhesive film softens and loses its grip, making the jammed sheet easier to extract. Use a plastic card (like an old gift card) or a wooden craft stick to gently peel the sheet back from the rollers — never use metal tools, which can score the roller surface. Work from both sides of the machine if accessible, peeling slowly toward the feed slot.

After clearing a jam, run two or three sheets of plain paper through at normal temperature before laminating more cardstock. This cleans any residual adhesive off the rollers and confirms the machine is feeding correctly. If jams are recurring, check whether your pouch total thickness exceeds the machine's rated maximum — this is almost always the root cause with heavy paper.

If you're laminating oversized cardstock like menus or display materials, the same jam-prevention principles apply — you can find more technique details in our guide on how to laminate restaurant menus at home.

Best Laminators for Cardstock and Heavy Paper

Not every laminator is built for heavy paper. Consumer-grade machines rated for 5 mil maximum often struggle with cardstock — they can technically handle the thickness but lack the roller pressure and heat consistency to do it cleanly. If you laminate cardstock regularly, investing in a machine with at least a 10 mil total document capacity is worthwhile.

Look for machines with these features when shopping for cardstock lamination:

• Adjustable temperature — not just a single "on" state. More control means better results across different paper weights.
• Adjustable speed — or at least a dedicated "card" mode that slows the feed automatically.
• Reverse function — non-negotiable for heavy paper lamination. Jams happen, and a reverse button turns a potential disaster into a 30-second fix.
• Wide roller gap — machines rated for 10 mil or higher have wider roller gaps, which accommodates the combined thickness of heavy cardstock plus pouch film without binding.
• Carrier sheet included — a bonus that signals the manufacturer knows users will be laminating thicker media.

Mid-range machines from GBC, Fellowes, and Scotch in the $60–$120 range typically offer the best combination of these features for home and small-office use. Our laminator buying guide covers specific model recommendations with detailed specs for heavy paper use.
