How to Use a Roll Laminator: Step-by-Step Guide

Whether you're a teacher laminating classroom materials, an office worker protecting important documents, or a hobbyist preserving cherished keepsakes, knowing how to use a roll laminator correctly makes all the difference between a flawless finish and a wrinkled, bubbled mess. Roll laminators are more powerful and versatile than their pouch-based counterparts, handling everything from single sheets to continuous banner runs. This guide walks you through every step — from setup and warm-up to feeding technique and troubleshooting — so you get professional results every time. If you're still deciding on equipment, check out our overview of what to look for when buying a laminator before diving in.

What Is a Roll Laminator and How Does It Work?

A roll laminator applies a continuous film of plastic over documents or materials by passing them through heated rollers. Unlike pouch laminators that use pre-cut sleeves, roll laminators draw film from large spools — one on top, one on the bottom — and heat-bond the film directly onto each side of your document. The result is a durable, moisture-resistant surface that can protect items of virtually any length.

The lamination process works by activating a heat-sensitive adhesive coating on the inside face of the film. As the document passes between the heated rollers, pressure and temperature fuse the film permanently. Most roll laminators also feature cooling rollers downstream to set the bond before the laminated material exits.

Roll Laminators vs Pouch Laminators

Pouch laminators are simpler and cheaper, but they max out at a fixed document size and require you to buy individual pouches for every item. Roll laminators are far more flexible: load a roll of film and you can laminate documents back-to-back without stopping, cover materials wider than A3, and cut to any length you need. For high-volume environments — print shops, schools, offices — roll laminators are the logical choice.

Types of Roll Laminating Film

Roll laminating film comes in several varieties. The two most common are thermal (heat-activated) and pressure-sensitive (cold). Most desktop and commercial roll laminators use thermal film. Film thickness is measured in microns (µm) or mil; thicker film produces a stiffer, more protective result. Common options include:

• 75 µm (3 mil): Standard everyday documents, menus, educational materials
• 100 µm (4 mil): Frequently handled items like ID cards, badges, bookmarks
• 150 µm (6 mil): Heavy-duty protection for signs, banners, maps
• Gloss vs. matte finish: Gloss enhances color vibrancy; matte reduces glare for reading

For a deeper look at film types, our article on thermal vs pressure-sensitive laminating pouches covers the chemistry and use cases in detail — the same principles apply to roll film.

Setting Up Your Roll Laminator

Proper setup is where most beginners go wrong. Rushing the warm-up, loading film unevenly, or picking the wrong temperature accounts for the vast majority of lamination failures. Take ten minutes to set things up correctly and you'll avoid hours of frustration later.

Loading the Film Rolls

Before loading, confirm that your film rolls match the laminator's width capacity. Most desktop roll laminators handle widths from 9 to 13 inches; commercial units can go much wider. Follow these steps:

1. Open the film compartment — usually a top panel or rear access door, depending on the model.
2. Mount the top roll on its spindle with the coated (shiny) side facing down toward the rollers.
3. Mount the bottom roll on its spindle with the coated side facing up.
4. Thread each film leader through the respective guide slots and around the heated roller nip.
5. Align both films so their edges are even — misalignment causes wavy edges and uneven lamination.
6. Close the compartment and ensure any tension arms or locks are engaged.

Some models use a single-roll design where one spool supplies film for both sides via a fold-over path. Always consult your manual for the specific threading diagram.

Choosing the Right Temperature

Temperature is the most critical variable in roll lamination. Set it too low and the film won't adhere; too high and you'll melt, wrinkle, or distort the document. Use the table in the Settings Reference section below as a starting point, then fine-tune based on your specific film brand and room conditions.

Always allow the laminator to fully reach its set temperature before feeding any material. The warm-up indicator light or LCD readout will confirm when the unit is ready. Feeding too early is a leading cause of poor adhesion and film waste.

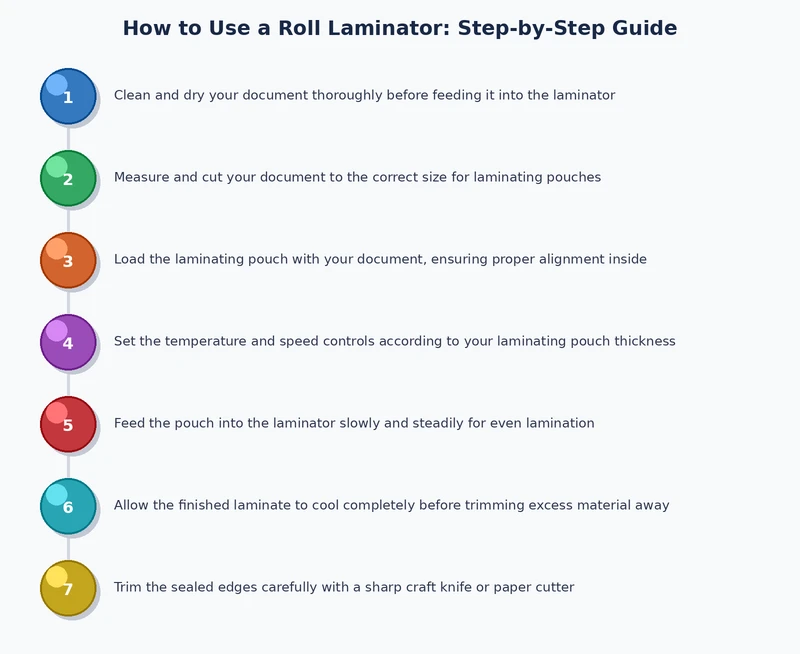

How to Use a Roll Laminator: Step-by-Step

Once the machine is warmed up and the film is loaded, the actual lamination process is straightforward. The key is consistency: steady feeding speed, correct document placement, and patience at the exit end.

Preparing Your Documents

Clean, flat documents laminate best. Remove any staples, paper clips, or binder remnants that could jam the rollers or create pressure points. If your documents have been folded, press them flat overnight or use a warm iron through a cloth to relax the creases first.

For items like newspaper clippings or fragile originals, you may want to mount them on a carrier sheet first — our detailed walkthrough on how to laminate newspaper clippings and old documents explains this technique. Make sure ink is fully dry; toner from laser printers is fine to laminate immediately, but freshly inkjet-printed documents should sit for at least an hour to prevent smearing or off-gassing that causes bubbles.

Feeding Documents Correctly

Feeding is where technique really matters:

1. Position the document centered left-to-right on the feed tray. Most roll laminators have a centering guide — use it.
2. Feed with the leading edge straight. Even a slight skew at entry will compound through the rollers and exit at an angle.
3. Leave a gap of 1–2 inches between documents when running multiple sheets in sequence. This gives you separation points for trimming and prevents documents from merging.
4. Use a consistent, slow, steady push until the rollers grip the document. Never force it — let the machine pull the material through at its own speed.
5. Do not pull the document from the exit end while it's still in the rollers. Pulling creates tension that causes rippling and delamination.

For wide-format items or continuous banners, have a helper support the material on the exit side to prevent sagging, which can distort the laminated result.

Trimming and Finishing

After the laminated material exits, allow it to cool for at least 60 seconds before trimming. Hot film is still pliable and can stretch or distort if cut immediately. Use a rotary trimmer or guillotine cutter for straight cuts. Leave a minimum 3mm film border around each document — cutting into the document edge risks peeling.

For curved or custom shapes, a craft knife and cutting mat work well. Always score lightly first and make a second deeper pass rather than forcing through in one stroke.

Temperature and Speed Settings Reference

The table below provides general starting-point settings for common roll laminating scenarios. Actual optimal settings vary by machine model and film brand — treat these as baselines and adjust in 5°C increments until you find the sweet spot for your setup.

Troubleshooting Common Roll Laminator Problems

Even with careful setup, issues can arise. Most problems have straightforward causes and fixes once you know what to look for.

Bubbles and Wrinkles

Bubbles are caused by trapped air or moisture. They appear when the temperature is too low to fully activate the adhesive, when the film tension is uneven, or when the document surface has moisture or oils. Solutions:

• Increase temperature by 5–10°C and run a test sheet
• Ensure document is dry and clean — wipe off fingerprints
• Check that both film rolls are tensioned equally

Wrinkles typically result from misaligned film, uneven roller pressure, or feeding at an angle. If wrinkles persist, check whether the film is tracking straight on its spindles and that both rollers are applying equal pressure across their width. A worn or damaged roller usually needs professional service.

Film Jams

A film jam stops the laminator mid-feed and can bond film to the rollers if heat continues to be applied. The moment you detect a jam, switch the laminator to reverse mode (if available) or power off immediately. Never pull jammed film toward the exit under tension — this can tear film and leave adhesive residue on the rollers. For detailed preventive steps, see our guide on how to prevent laminator jams. General jam-prevention habits include:

• Always pre-cut ragged document edges before feeding
• Never feed documents thicker than the laminator's specified maximum
• Keep the feed table clear of debris
• Replace worn film rolls before they run completely out (the tail end of a roll can detach and jam)

Pro Tips for Better Lamination Results

These refinements separate adequate lamination from truly professional output:

• Run a warm-up sheet first. Feed a blank piece of paper through before your actual documents. This stabilizes the film temperature and catches any setup issues before you risk real materials.
• Match film width to document width. Film should be slightly wider than your documents (by at least 3mm on each side) but not drastically oversized. Excessive unsupported film edges can wrinkle or fold.
• Store film rolls correctly. Keep unused rolls in a cool, dry place away from UV light. Degraded film adheres poorly and bubbles easily.
• Laminate in the correct environment. High humidity days make lamination harder. If your workspace is humid, run a dehumidifier or increase temperature slightly.
• Use a carrier sheet for small items. Small items like business cards or photos can skew and jam. Place them on a folded carrier sheet (a standard piece of paper folded over them) to keep them flat and straight during feeding.
• Clean rollers regularly. Adhesive residue builds up on rollers over time and causes streaks or sticking. Use a manufacturer-approved roller cleaning sheet or isopropyl alcohol on a lint-free cloth when the machine is cool and unplugged.

Once you master the roll laminator, you'll find endless uses: laminating certificates and award documents, protecting maps for outdoor use, preserving artwork, and producing durable signage. For a complete walkthrough of the available options and features to look for as you upgrade your equipment, visit our roll laminator service page.
