Laminator Pouch Thickness Guide: 3 mil vs 5 mil vs 10 mil

Ever pulled a freshly laminated sheet out of your machine only to find it's too floppy to hold its shape — or so stiff it won't lie flat on a desk? The answer almost always comes down to one variable: pouch thickness. This laminator pouch thickness guide resolves that question directly: 3 mil pouches protect lightweight everyday documents, 5 mil handles the majority of office and school needs, and 10 mil is reserved for items that take a beating. Read on, and you'll never guess at the right thickness again.

Laminating seems simple until you're staring at a wall of pouch options at the office supply store. The difference between a business card that survives years of wallet use and one that peels apart in three months comes down entirely to those numbers on the box. Before you buy, it's worth understanding what each mil rating actually means for your specific project — and which machines can handle which pouches. If you're still deciding on the right printer for documents you plan to laminate, our guide on what to look for when buying a printer covers output quality factors that matter before lamination. And if you're sorting out your hardware first, our comparison of cold laminator vs hot laminator differences is a useful primer.

3 Mil, 5 Mil, and 10 Mil: What the Numbers Actually Mean

Understanding Mil as a Unit

The term "mil" in laminating is not millimeters — it is a thousandth of an inch. A 3 mil pouch is 0.003 inches thick per side, meaning the total laminated document ends up 0.006 inches thicker than the original paper. That distinction matters because the quoted thickness always refers to a single layer of the pouch, and every pouch has two layers sandwiching your document. Per Wikipedia's overview of lamination technology, thermally bonded pouches like these rely on heat-activated adhesive layers fused to a polyester film — the thicker the polyester, the stiffer and more protective the final result.

How Thickness Changes the Final Product

Beyond rigidity, thickness affects clarity, flexibility, and how the laminated piece behaves over time. Thinner pouches (3 mil) remain semi-flexible and are barely noticeable on paper, which is why they suit documents you need to fold or stack in bulk. Mid-range pouches (5 mil) strike a balance — they add meaningful stiffness while staying compatible with the widest range of consumer laminators. Thick pouches (10 mil) produce something closer to a plastic card than a coated sheet, which is exactly what you want for items like ID badges, luggage tags, or laminated reference cards that live outside a folder and get handled constantly.

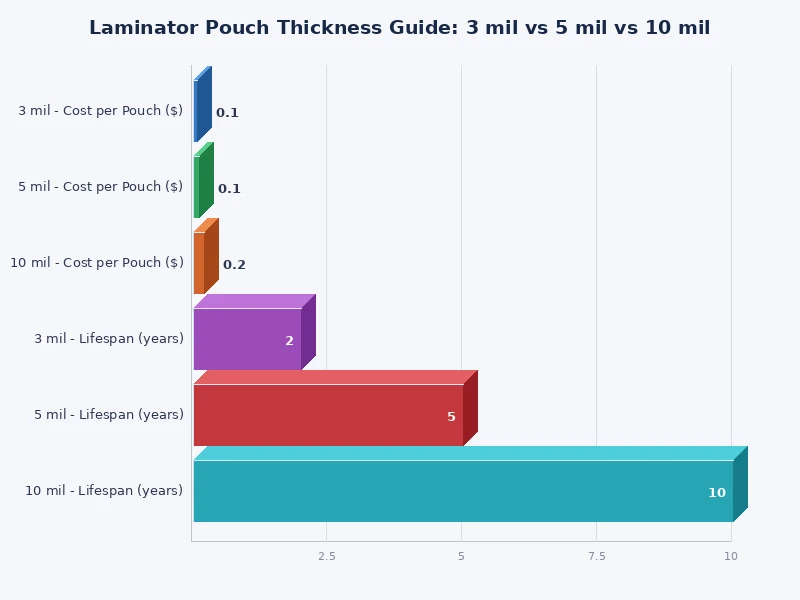

Your Laminator Pouch Thickness Guide: 3 Mil, 5 Mil, and 10 Mil at a Glance

When 3 Mil Is the Right Call

Three mil pouches are the budget workhorses of the laminating world. They cost less per sheet, fit through virtually any pouch laminator including entry-level machines like those covered in our Staples laminator usage guide, and they process faster because they require less heat to seal. The tradeoff is durability: a 3 mil document will scratch, dent, and yellow faster than heavier alternatives under daily handling. Use 3 mil for internal office documents, school worksheets, recipe cards kept in a drawer, and any situation where you're laminating dozens of sheets and cost per page matters more than long-term resilience.

When to Move Up to 5 Mil

Five mil is the most popular thickness sold for good reason — it covers the majority of everyday laminating tasks while providing enough stiffness to keep a document looking professional. Menus, event schedules, instructional posters, and classroom materials all benefit from 5 mil because the extra rigidity keeps edges crisp and prevents curling. If you're laminating photos before displaying them, 5 mil gives you a protective barrier that makes color pop without the bulk of 10 mil. For a related look at getting quality prints before you laminate, see our article on how to print photos at home like a pro.

When 10 Mil Makes Sense

Ten mil pouches produce a laminated piece with the heft of a credit card. That rigidity is precisely the point: ID badges that clip to lanyards, outdoor signage handled daily, luggage tags, and laminated tool checklists for workshops all benefit from the extra thickness. The catch is that not all laminators support 10 mil pouches. Check your machine's specification sheet before buying — underpowered rollers may not apply enough pressure to seal the adhesive evenly, leading to bubbles along the edges. Ten mil also costs significantly more per sheet than 3 or 5 mil, so reserve it for items that genuinely need the added protection.

What Pouch Thickness Costs You

Per-Sheet Price Differences

Pouch pricing scales fairly predictably with thickness. A box of 100 letter-size 3 mil pouches typically runs around $10–$14, putting the per-sheet cost well under fifteen cents. Five mil pouches for the same quantity land in the $16–$22 range, while 10 mil pouches can cost $30–$50 for the same count. When you're running hundreds of documents a month — student worksheets, staff handouts, retail signage — that difference compounds quickly. Just as understanding printer cost per page helps you budget print runs, tracking per-sheet lamination costs helps you choose the right pouch for volume jobs without overspending.

Total Cost of Ownership

Cost per sheet is only part of the equation. Thicker pouches run slower through the machine and may require a longer warm-up period between batches, which adds meaningful time when laminating at scale. They also place more stress on the laminator's rollers over extended runs. If your office handles moderate laminating volume and already owns a mid-range machine, sticking to 5 mil for most tasks preserves both your budget and your equipment. Only reach for 10 mil when the document's handling demands genuinely justify the premium.

Lamination Mistakes That Damage Documents

Mismatching Thickness to Heat Settings

The most common laminating mistake is running thick pouches on a heat setting designed for thin ones, or vice versa. A 10 mil pouch fed through a machine set to its standard 3 mil temperature will emerge under-sealed — the adhesive hasn't activated fully, so the layers peel apart within weeks. On the other end, forcing a 3 mil pouch through a high-heat setting scorches the film and can permanently damage the document underneath. Always check whether your laminator offers selectable thickness settings and choose the one that matches your pouch. If your machine has only one heat setting, verify in the manual that it covers the mil range you intend to use.

Tip: Always feed each pouch sealed-edge first — the closed edge should enter the laminator before the open side, preventing the document from shifting inside before the adhesive seals around it.

Overfilling and Edge Sealing Errors

Laminator pouches need a minimum 1/8-inch border of clear film around all edges of your document. Overfilling — sliding a sheet in so it reaches the very edge of the pouch — means the adhesive has nothing to bond to at the margins, and the seal will fail along those edges over time. Placing two documents in a single pouch is another common shortcut that creates uneven thickness, causing rollers to apply uneven pressure. The result is bubbles, wrinkles, and unnecessary roller wear. Leave adequate border space, and use one document per pouch without exception.

Fixing Common Lamination Problems

Bubbles and Wrinkles

Bubbles trapped in a freshly laminated sheet almost always trace back to one of three causes: a cold machine, misaligned document placement, or a pouch that's too thick for the machine's heat output. Let your laminator fully warm up before feeding the first sheet — most machines have a ready indicator, but 10 mil pouches benefit from an additional minute of warm-up beyond the standard cycle. If wrinkles appear along one side, the document likely shifted during feeding; using a carrier sheet — a folded piece of cardstock — keeps the pouch flat and aligned against the rollers. Re-laminating over an already-bubbled sheet rarely works because the original imperfections remain visible through the new layer.

Jamming and Feeding Issues

Jams typically happen when pouches exceed the laminator's stated maximum mil rating or when multiple pouches are fed simultaneously. If a jam occurs, never yank the material backward through the rollers — that risks tearing the film and wrapping adhesive residue around the roller itself. Use the reverse function if your machine has one, or unplug the unit, let the rollers cool completely, and work the material free gently. After clearing a jam, run a cleaning sheet to remove any adhesive deposit before laminating another document. Our full guide on how to clean a laminator walks through the roller-cleaning process step by step.

Keeping Your Laminator Ready

Cleaning After Heavy Use

Adhesive buildup is the slow killer of laminator rollers. Every time a pouch passes through, trace amounts of adhesive deposit on the metal and silicone surfaces. Over time this buildup creates uneven surface tension that produces wavy laminations and raises the chance of future jams. Cleaning sheets — thin, low-adhesion pouches designed to lift residue — should be run through the machine every 20–30 laminations, or whenever you notice output quality deteriorating. After the unit cools completely, you can also wipe the external roller edges with a cloth lightly dampened with isopropyl alcohol to remove any visible buildup before it hardens.

Storing Unused Pouches Correctly

Laminator pouches are more sensitive to environment than most people expect. Storing an open box near a heater, in a sunny window, or in a humid basement can partially activate the adhesive layers or warp the film before you ever use the pouches. Keep unused pouches in their original sealed packaging in a cool, dry location — a desk drawer or cabinet works well. Pouches exposed to humidity often feed unevenly and produce bubbles even on a well-calibrated machine. If you've invested in 10 mil pouches at a higher per-sheet cost, proper storage genuinely pays for itself over a box's lifetime.

Myths About Pouch Thickness That Waste Your Money

Thicker Always Means Better

The belief that 10 mil is simply the "best" option leads many buyers to over-spend on pouches that are overkill for their actual use. A laminated student worksheet destined for a classroom bulletin board doesn't need card-stiff protection — 3 mil or 5 mil is perfectly appropriate and far less expensive. Pouch thickness is a tool, not a quality ranking. The right thickness is the one that matches a document's real handling demands, not the one with the biggest number. Over-specifying also means your laminator runs slower and its rollers work harder than necessary on every single pass.

All Laminators Handle All Pouches

Another widespread misconception is that any pouch will work in any machine. Consumer-grade laminators are typically engineered for 3 mil and occasionally 5 mil pouches — their heating elements and roller pressure are calibrated for that range. Feeding 10 mil pouches through these machines often results in poor seals, jams, or permanently compressed rollers. Before buying thicker pouches, cross-reference the mil rating against your laminator's specification sheet. If you're in the market for a machine that handles the full thickness range, our laminator buying guide covers which models support 10 mil. It's also worth noting that inkjet vs laser printer output affects how well ink adheres under lamination heat — laser-printed documents generally hold up better at higher temperatures than inkjet-printed ones.

Match the mil to the mission — and your laminated documents will outlast every job they were made for.
