How to Laminate a Puzzle to Display and Preserve It

Completing a jigsaw puzzle takes patience, skill, and hours of focused effort — so it makes sense to want to preserve that work permanently. Learning how to laminate a puzzle is one of the most reliable ways to turn a finished puzzle into a frameable piece of wall art. Whether you're working with a 500-piece landscape or a 2,000-piece masterpiece, laminating locks the pieces together and protects them from dust, moisture, and handling. This guide walks you through every step of the process, from flattening your puzzle to choosing the right laminator settings, so your finished display lasts for years.

Before you reach for a laminator, it helps to understand your options. You can use a dedicated puzzle saver (a brush-on adhesive), self-laminating pouches, or a standard thermal laminator — each with different results. For most people who want a rigid, glossy, display-quality finish, a laminator is the best choice. If you're new to the process, it's also worth reading up on what to look for when buying a laminator before you commit to a machine, especially if this is your first time using one.

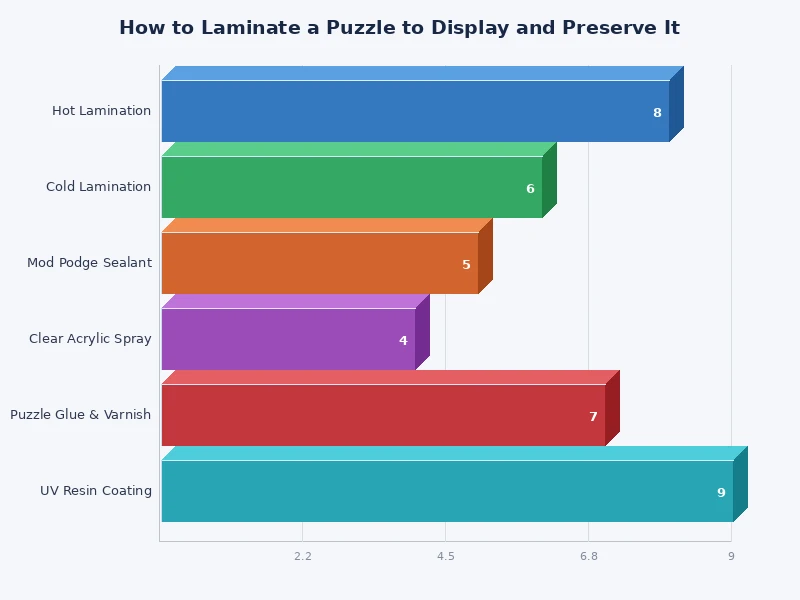

Choosing the Right Lamination Method

Not all lamination methods produce the same result, and the one you choose will affect how your puzzle looks on the wall and how long it lasts. The three main approaches are brush-on puzzle savers, self-laminating pouches, and thermal laminators. Each has a legitimate use case depending on your budget, the size of your puzzle, and the finish quality you're aiming for.

Puzzle Saver vs. Laminator

Puzzle savers — liquid adhesives you brush directly onto the surface — are inexpensive and widely available. They work by seeping between the pieces and bonding them together as the adhesive dries. The result is a semi-rigid sheet that can be framed. The downside is that they can yellow over time, the finish is often uneven, and multiple coats are usually needed to get adequate rigidity. They're a reasonable choice for casual projects, but for a clean, display-quality result, a laminator wins every time.

A thermal laminator encases the entire puzzle in a plastic film that's heat-sealed on both sides. This gives you a smooth, uniform surface that's waterproof, scratch-resistant, and significantly more rigid than brush-on adhesives. The film also enhances color vibrancy, which is a meaningful bonus for image-heavy puzzles.

Pouch Laminator vs. Roll Laminator

For puzzles up to around A3 size (roughly 11" × 17"), a standard pouch laminator works well. You slide the puzzle into a pre-cut laminating pouch and feed it through the machine. For larger puzzles — say, 24" × 30" or bigger — you'll need a roll laminator or a wide-format machine. If you're unsure which size laminator suits your needs, the comparison at A3 vs A4 laminator: which size do you actually need breaks down the practical differences clearly.

What You Need Before You Start

Preparation makes the difference between a smooth lamination and a ruined puzzle. Before you start the process, gather everything you need and clear a flat workspace large enough to lay your puzzle out completely without overhang.

Supplies Checklist

• Completed, fully assembled puzzle
• Thermal laminator (sized for your puzzle)
• Laminating pouches (3 mil or 5 mil thickness — see below)
• A large, flat piece of cardboard or foam board as a backing
• Painter's tape or low-tack adhesive tape
• A ruler and scissors or a rotary trimmer
• A clean, lint-free cloth
• Optional: a rolling pin or brayer for post-lamination smoothing

The laminating pouch thickness matters more than most people realize. A 3 mil pouch is flexible and works well for puzzles you intend to roll up or store flat. A 5 mil pouch produces a noticeably stiffer result that holds its shape better when framed without additional backing. For display purposes, 5 mil is usually the better choice.

Matching Puzzle Size to Pouch Size

Standard laminating pouches come in letter (9" × 11.5"), legal (9" × 14.5"), and A3 (12.6" × 18") sizes. Most consumer puzzles fall into one of these categories or can be trimmed to fit. If your puzzle is larger than A3, you have two options: use a roll laminator with a continuous film, or laminate it in overlapping sections (though seams will be visible, so this is a last resort).

Always measure your puzzle before buying pouches. Add at least half an inch of clearance on each side so the pouch can seal completely around the edges without leaving exposed puzzle along the border. A pouch that's too tight will either not seal at the edges or — worse — cause the puzzle to buckle as the film contracts during heating.

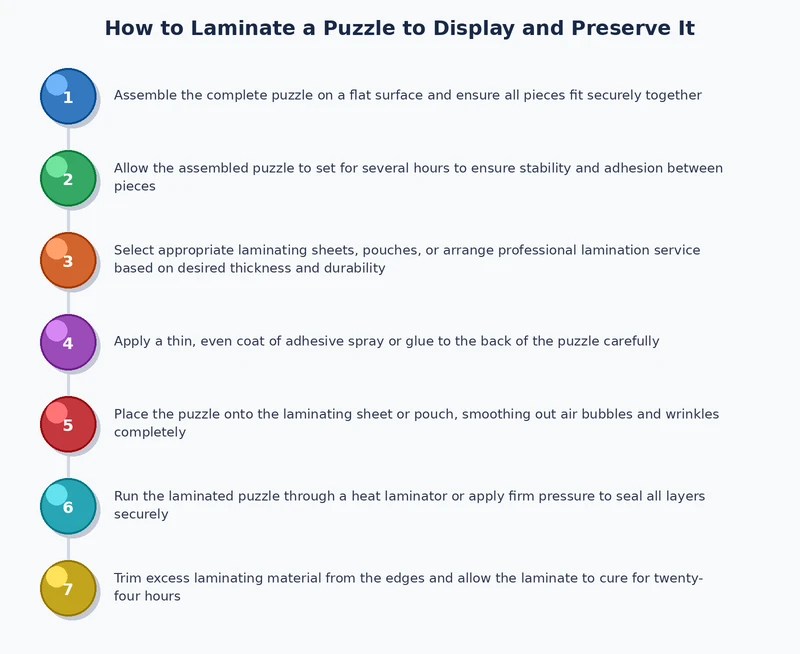

How to Laminate a Puzzle: Step-by-Step

This is the core process for how to laminate a puzzle using a standard thermal pouch laminator. Follow each step carefully — rushing any stage is the most common cause of bubbling, warping, or shifted pieces.

Flatten and Secure the Puzzle

Before the puzzle goes anywhere near the laminator, it needs to be completely flat and stable. Even slight warping — caused by humidity or an uneven surface during assembly — will amplify dramatically under laminator heat.

1. Place the finished puzzle on a sheet of cardboard that's slightly larger than the puzzle itself. This acts as a rigid carrier during feeding.
2. Check for gaps and shifted pieces. Press the puzzle gently from the center outward to seat all pieces firmly. Any gap will show through the laminate film as a dark line.
3. Secure the edges with painter's tape on the underside to prevent pieces from sliding when you transfer the puzzle to the laminating pouch. Don't use strong adhesive tape — you need to remove it cleanly before laminating.
4. Let the puzzle rest flat for 30 minutes if it has any curl. Stack a few heavy books on top to flatten it. Do not skip this step for large puzzles.

Feeding the Puzzle Through the Laminator

1. Preheat the laminator according to the manufacturer's instructions. Most machines need 3–5 minutes to reach operating temperature. Use the correct setting for the pouch thickness you've chosen — most laminators label this clearly.
2. Open the laminating pouch and carefully slide the puzzle inside, face up. Keep it centered. Remove the painter's tape from the underside before inserting.
3. Feed the closed end of the pouch in first — this is the sealed spine end, not the open end. Feeding open-end first can cause the film to separate mid-feed or trap air bubbles near the entry point.
4. Guide the pouch in slowly and evenly, keeping light pressure on both sides as it feeds. Do not push — let the laminator's rollers draw it through at their own pace. Forcing the puzzle risks jamming and shifting pieces. For tips on preventing this, see our guide on how to prevent laminator jams.
5. Catch the puzzle on the exit side with both hands to support its weight. Don't let it hang or fold as it exits — this can cause creasing in the still-warm film.

Trimming and Finishing

Once the laminated puzzle exits the machine, set it flat on a clean surface and allow it to cool completely — at least 10 minutes. The film remains slightly pliable while warm and can warp if placed on an uneven surface or stacked with weight on top before it has fully set.

After cooling, trim the excess film border with a straight-edge ruler and a rotary trimmer or sharp scissors. Leave approximately 3–5mm of film border around the puzzle edge — this border forms the seal that holds the two film layers together. Cutting too close to the puzzle edge will break that seal and allow moisture and air to creep in over time, defeating the purpose of laminating.

Laminator Settings for Puzzles

Using the wrong temperature setting is one of the most common mistakes people make when laminating puzzles. Too hot and the cardboard puzzle pieces can warp, the image can blister, or the film can bubble. Too cool and the film won't bond fully, leaving a cloudy, partially adhered surface that peels at the edges within weeks.

Most thermal laminators designed for home or office use run between 250°F and 300°F (120°C–150°C). For puzzles, which have a cardboard substrate thicker than a standard document, aim for the middle of your machine's range. If your machine has a setting labeled by pouch thickness rather than temperature, select the setting that matches your pouch (3 mil or 5 mil) and run a test pass with a scrap piece of cardboard first.

Speed also matters. Many laminators offer a slow or "cold" mode. For puzzles, use the standard heated mode at a moderate speed. Slower feeds give the heat more time to activate the adhesive evenly across the full width of the puzzle, which is especially important near the center of large puzzles where heat from the rollers is less concentrated.

It's worth understanding the difference between thermal and pressure-sensitive films before you buy supplies. The guide on thermal vs pressure-sensitive laminating pouches explains which type suits different materials — puzzles almost always benefit from thermal pouches rather than cold-process alternatives, since thermal adhesive bonds more firmly to the cardboard substrate.

Common Problems and How to Fix Them

Even when you follow the steps correctly, things can go wrong. Here are the two most common issues and how to address them without starting over.

Bubbling and Warping

Small bubbles near the edges usually mean air was trapped when the puzzle was inserted into the pouch. If you catch them immediately after lamination while the film is still warm, you can sometimes press them out with a flat, hard object moving from the bubble toward the nearest edge. A credit card or a rubber brayer works well.

If the puzzle warps into a curl after laminating, place it face-down on a flat surface and stack heavy books on top while it cools. If warping is severe, run it through the laminator a second time (without an additional pouch) on a slightly lower temperature setting — the heat reactivates the adhesive slightly and the roller pressure can help flatten it. For a deeper look at preventing this, the article on how to laminate documents without curling or warping covers the root causes in detail.

According to the Wikipedia article on lamination, warping in thin-substrate lamination is most commonly caused by uneven heat distribution across the roller width — a problem more pronounced on budget machines with narrower heating elements.

Pieces Shifting Mid-Feed

If pieces shift during feeding, the most likely cause is that the puzzle wasn't adequately secured before insertion, or the pouch opening was fed in first instead of the sealed end. There's no reliable fix once shifting has occurred — the best outcome is a visible ridge or gap in the laminated surface.

Prevention is the only real solution: tape the puzzle from the underside using low-tack tape before sliding it into the pouch, feed the sealed end first, and never push the pouch — let the rollers do the work. For larger puzzles, having a second person guide the exit side of the puzzle while you guide the entry side prevents the weight of the exiting puzzle from pulling the still-in-feed section sideways.

Framing and Displaying Your Laminated Puzzle

Once your puzzle is laminated and trimmed, framing is straightforward. Standard picture frames from any home goods store work well, provided you choose a frame size that matches your puzzle dimensions. Most puzzles do not come in standard frame sizes, so measure carefully and look for frames in the custom or "odd size" sections, or order a custom frame online.

For a frameless look, you can mount the laminated puzzle directly to foam board using double-sided tape, then hang it with sawtooth hangers adhered to the back of the board. This is a clean, modern display option that keeps the focus entirely on the puzzle image.

If you plan to display the puzzle in a high-humidity environment — a kitchen, bathroom, or screened porch — consider a UV-resistant laminating pouch, which adds a layer of protection against color fading from both moisture and light exposure. Glossy film enhances vibrancy in low-light rooms; matte film reduces glare in well-lit spaces or near windows.

For the full professional service option, you can also visit our dedicated how to laminate a puzzle service page for hands-on help selecting the right laminator and supplies for your specific puzzle project.
