How to Laminate Documents Without Curling or Warping

Anyone who has fed a certificate, photo, or important printout through a laminator only to watch it curl into a tube knows the frustration all too well. Learning how to laminate without curling is less about luck and more about understanding a handful of variables — heat, speed, film thickness, and cooling technique. Get those right and your documents come out flat, clear, and professional every time. This guide covers everything from pouch selection to post-lamination flattening, so you can protect your documents without ruining them in the process. For a quick overview of the full workflow, see our dedicated laminating documents without curling service page.

Curling happens because the plastic film on one or both sides of a pouch contracts unevenly as it cools. The film facing down toward the laminator's heated roller almost always receives more heat than the film on top, creating tension that bends the document. Knowing this single fact already puts you ahead of most home users who blame their laminator when the real culprit is technique.

Why Documents Curl and Warp During Lamination

Before fixing the problem, it helps to understand what is actually happening inside your laminator. Curling is a mechanical response to uneven thermal stress — not a sign of a cheap machine or defective pouches (though those can make things worse).

The Science of Heat and Plastic Film

Laminating pouches are made of two bonded layers: an outer polyester (PET) layer that provides rigidity and a inner ethylene-vinyl acetate (EVA) adhesive layer that melts and bonds to the paper. When the document passes through heated rollers, the bottom layer absorbs more heat than the top. As the film cools after exiting the laminator, both layers try to contract, but because they started at different temperatures they contract at different rates. The result is the classic upward curl — the document bends toward the side that received less heat.

Higher-end laminators use dual heated rollers (top and bottom) specifically to equalize this heat distribution. Budget single-roller models are more prone to curl because only one side is actively heated. If you own a single-roller machine, the techniques in this guide become even more important.

Common Mistakes That Cause Curling

• Running the laminator cold. Most machines need five to ten minutes to fully warm up. Feeding a document too early means the rollers never reach a uniform temperature and heat distribution is wildly uneven.
• Using a pouch that is too thin for the document. A 3 mil pouch over a thick cardstock fights the document's natural stiffness and almost always curls.
• Too fast a feed speed. Faster speeds reduce dwell time — the time the film spends in contact with the heated roller — which means inconsistent adhesion and more curl.
• Pulling the document immediately after exit. Grabbing the document and stacking it while it is still warm locks in the curl permanently.
• Leaving the document unsupported as it cools. Letting it hang off the edge of a desk or curl back on itself during cooling creates a memory in the plastic.

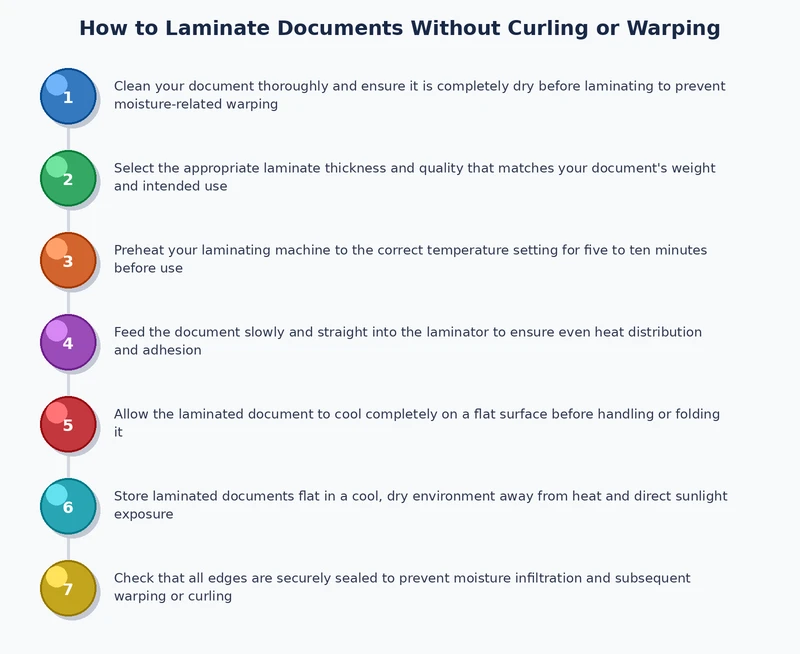

How to Laminate Without Curling — Step-by-Step

The following process applies to pouch laminators, which are by far the most common type used in homes and small offices. Roll laminators follow similar principles but have more independent temperature controls for each roller.

Prepare Your Documents Properly

Start with a document that is completely dry and at room temperature. Freshly printed pages from a laser printer retain heat that can cause premature softening of the adhesive inside the pouch. Wait at least ten minutes after printing before laminating. For inkjet prints, wait thirty minutes to ensure the ink is fully cured — laminating wet ink traps moisture and creates cloudy spots that look like bubbles.

If you are laminating multiple pages in a batch session (such as a set of reference cards or classroom materials), keep unlaminated documents in a flat stack rather than fanned out. Curled or dog-eared input sheets almost always produce curled output, since the pouch conforms to the shape of whatever is inside it.

For those who work on digital documents before printing — whether referencing instructions on a device or managing a small home office — having a reliable tablet under $150 nearby to pull up lamination guides or step-by-step instructions can save a lot of back-and-forth trips to the computer.

Choose the Right Laminating Pouch

Pouch thickness is measured in mils (thousandths of an inch) and is the single biggest variable you can control. Thicker pouches are stiffer and therefore resist the pulling force that causes curl. The tradeoff is that thicker pouches require more heat and more dwell time to bond properly.

As a general rule: use 3 mil pouches for lightweight paper and everyday documents; 5 mil for frequently handled items like ID cards, menus, and checklists; 7 mil or 10 mil for anything that needs to be rigid, such as badges, luggage tags, or display signs. Using a 3 mil pouch on cardstock is asking for trouble — the pouch is not stiff enough to fight the document's natural tendency to curl, and the extra mass of the cardstock means the heat never distributes evenly.

Set the Correct Temperature

Most home laminators have three to five temperature settings labeled Low, Medium, and High — or they specify temperature in degrees. The goal is to use the lowest temperature that fully activates the adhesive. Running too hot causes the EVA layer to over-flow and creates bubbles; it also makes the film more pliable during cooling, which means more curl. Running too cool leaves the adhesive partially bonded, which looks milky and peels at the edges over time.

If your laminator has a speed control, slow it down. Lower speed equals longer dwell time equals more even heating. Most curl problems in single-roller machines are solved simply by dropping one speed setting and lowering the temperature by one notch at the same time.

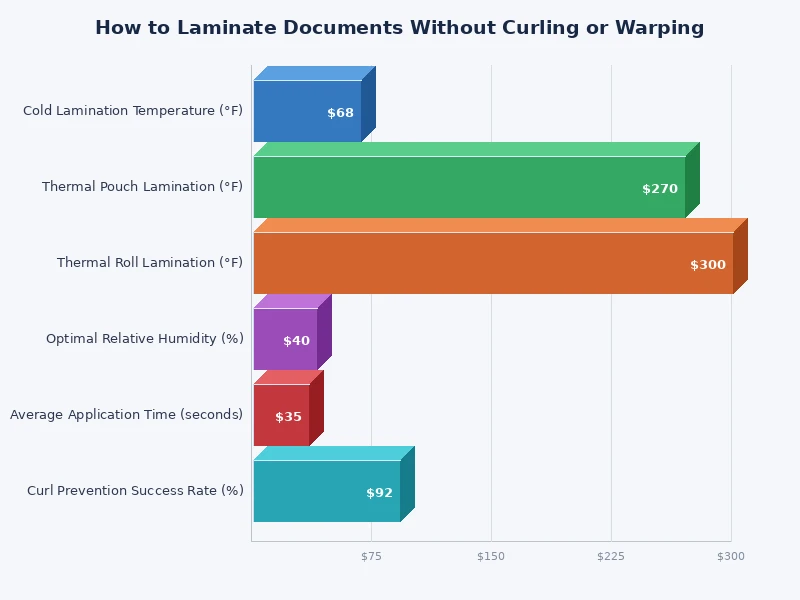

Laminator Settings and Pouch Thickness Guide

The table below summarizes recommended combinations of pouch thickness, temperature, and speed for the most common document types. These are starting points — your specific laminator may require minor adjustments.

Matching Pouch Thickness to Document Type

Notice that the curl risk column goes down as pouch thickness increases. This is not a coincidence — stiffness is your primary defense against warping. If you are repeatedly frustrated by curling on a particular document type, the first fix to try is always upgrading to the next pouch thickness tier.

Cooling and Flattening Techniques

Even a perfectly laminated document can curl if you handle it incorrectly in the first sixty seconds after it exits the machine. The plastic is still above its glass transition temperature at exit — it is pliable, and whatever shape it takes during that cooling window is the shape it will keep.

The Book Press Method

This is the most reliable technique for guaranteeing flat results with no special equipment. The moment your laminated document exits the machine, place it on a flat, hard surface — a desk or a cutting mat. Immediately place a large, heavy book (a dictionary or textbook works perfectly) on top. Leave it for three to five minutes. The book's weight counteracts the thermal contraction pulling the film in one direction, and the document cools flat under uniform pressure.

For a batch lamination session, work in a small assembly line: laminate one document, set it under a book, laminate the next, add it to the stack, and so on. By the time you have finished the batch, the first document is fully cooled and flat.

Counter-Pressure While Cooling

If you do not have a book handy, you can use manual counter-pressure. As soon as the document exits the laminator, gently curl it in the opposite direction — convex-side down against a flat surface — for about thirty seconds. You are not trying to over-bend it; you are just nudging the film toward neutral as it cools. This works remarkably well for lightweight documents laminated in 3 mil pouches where light curl is the usual result.

Some experienced users run the still-warm laminated sheet back through the laminator in reverse (cold, machine turned off) so the rollers apply flat pressure as the document cools. This works but risks scratching the pouch surface if the rollers are not perfectly clean. Reserve this technique for documents where flatness is critical and appearance is not.

If you work from a home office where managing documents, printing schedules, and staying organized digitally is part of the daily routine, pairing your physical document workflow with a capable Wi-Fi tablet for on-the-go reference can keep your whole workflow running smoothly.

Troubleshooting Common Lamination Problems

Even when you follow best practices, problems arise. Here are the most frequent issues and their solutions, all related to the core goal of knowing how to laminate without curling and without other quality defects.

Bubbles and Cloudy Film

Bubbles almost always indicate one of three things: the temperature was too high and caused the adhesive to boil, the document had surface moisture, or there was debris trapped inside the pouch before sealing. Cloudy film without visible bubbles usually means the temperature was too low and the adhesive did not fully melt and bond.

Fix bubbles by lowering the temperature one setting and slowing the feed speed. Fix cloudiness by raising the temperature one setting. If bubbles appear only at the edges, your pouch is too small — always leave at least 3mm of pouch border around the document so the two layers can seal to each other and prevent edge lift.

Edges Not Sealing Properly

Unsealed edges are both a cosmetic and a durability problem — moisture and dust can enter and degrade the document over time. Edge sealing failures usually happen when the pouch is trimmed too close to the document, or when the machine was underfed (the document entered the rollers crooked, meaning the edges passed through a cooler part of the roller). Always feed documents straight and center them in the pouch. Feeding corner-first at a slight angle, rather than leading with the full straight edge, can help single-roller machines capture the document without slipping.

If you find that your laminator consistently fails to seal a specific edge, check whether the roller pressure is adjustable on your model. Many mid-range laminators have a nip adjustment that can be tightened slightly to improve edge contact.
